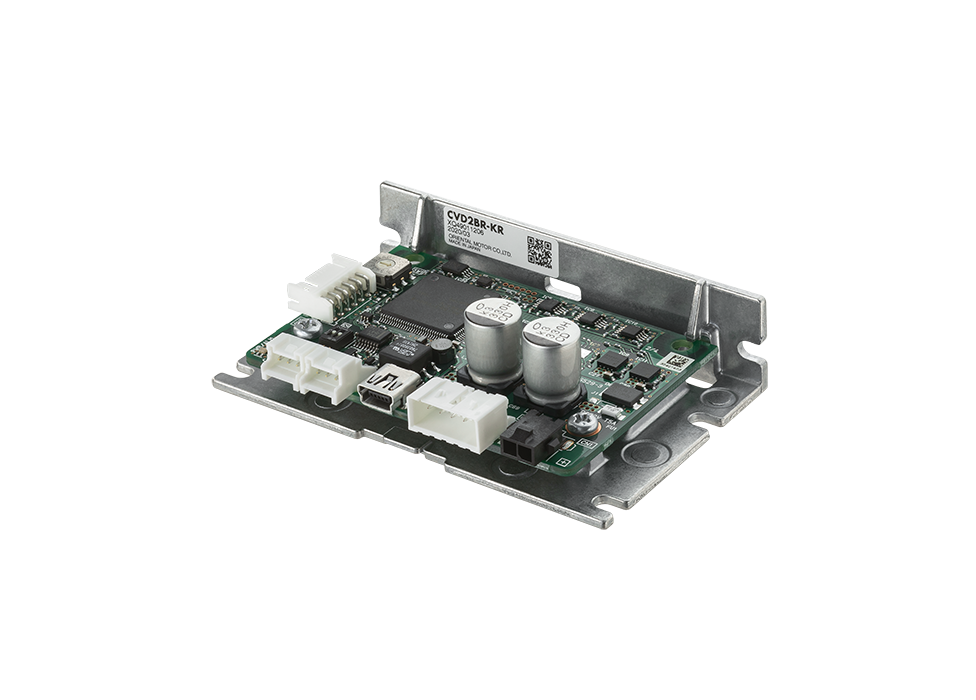

Bipolar Driver for 2-Phase Stepper Motors
Driver for 5-Phase Stepper Motors
CVD Series
- DC input
- Compact drivers
- High torque, low vibration, low noise
Features | Bipolar Driver for 2-Phase Stepper Motor/Driver for 5-Phase Stepper Motor CVD Series
Improved Performance
Low vibration
Full-time microstep drive with full digital control has greatly improved the vibration level, resulting in lower vibration in all speed ranges.
-

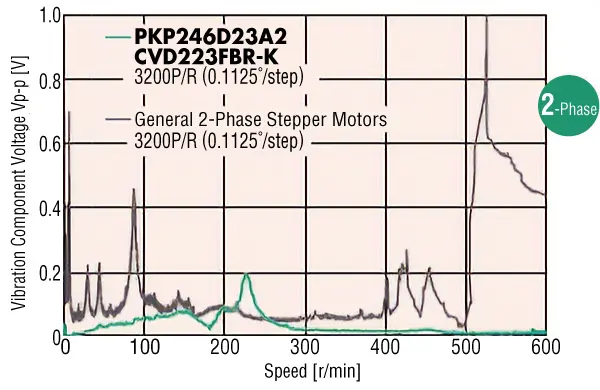

Significantly Improved Vibration Characteristics in All Speed Ranges
-

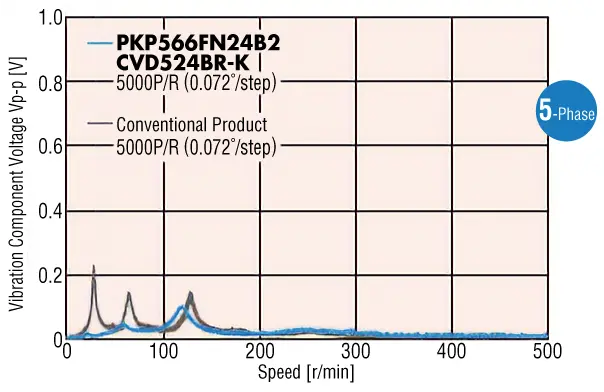

Even Lower Vibration
Industry's-Top-Class Compact High Performance Driver
Compact and lightweight drivers that contribute to space saving. The size, installation, I/O and power connectors for 2-phase and 5-phase drivers are the same.
| Size | Mass |
|---|---|
| W 85 mm × D 52.5 mm × H 24.5 mm | 20~70 g |
Driver That Can be Selected According to the Installation Method
Drivers with different shapes and connector orientations are available to match the installation method.
-

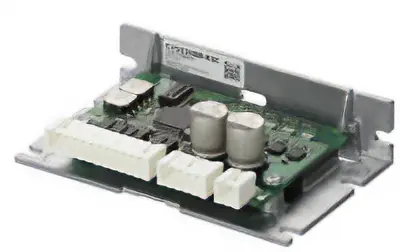

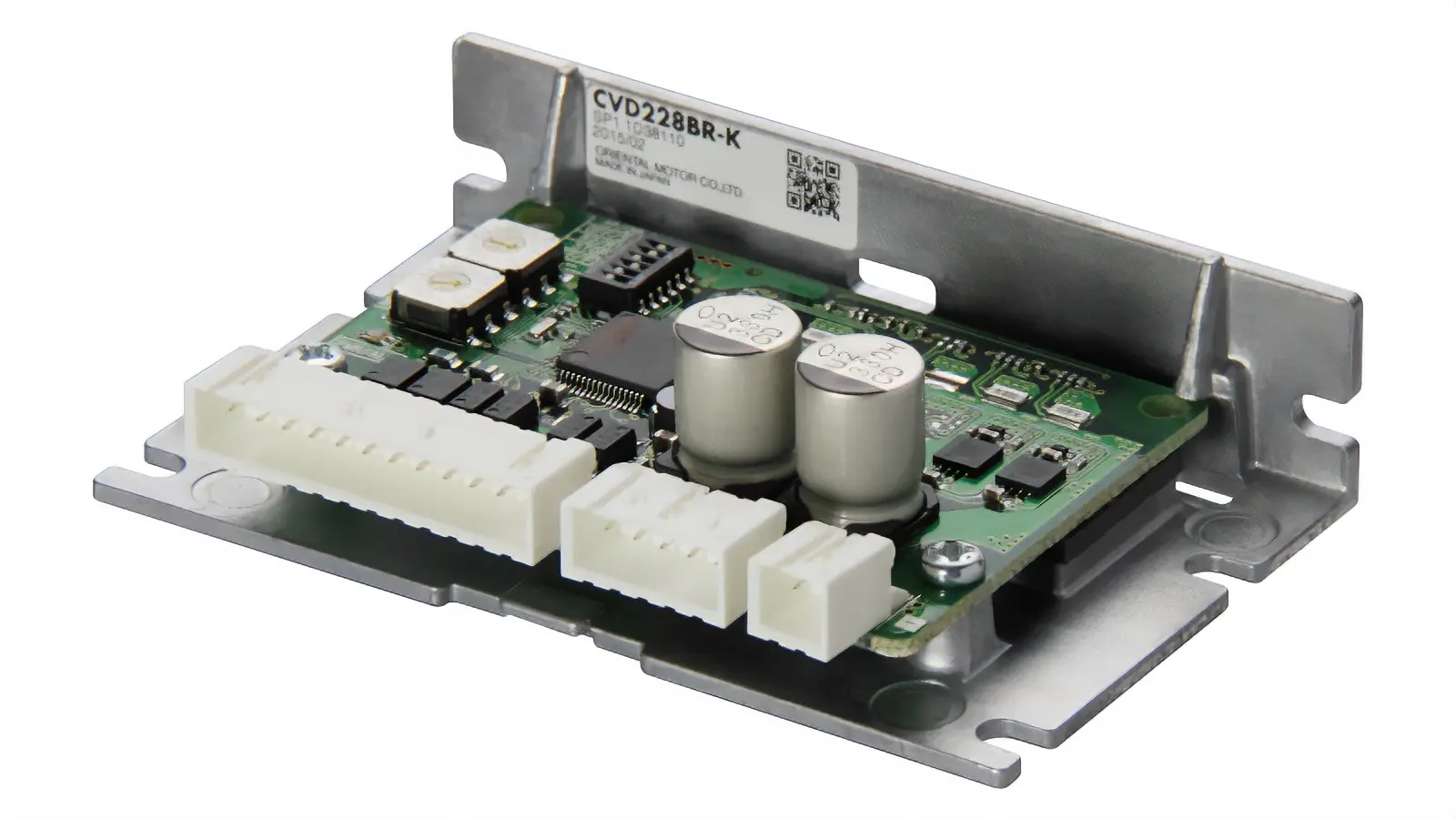

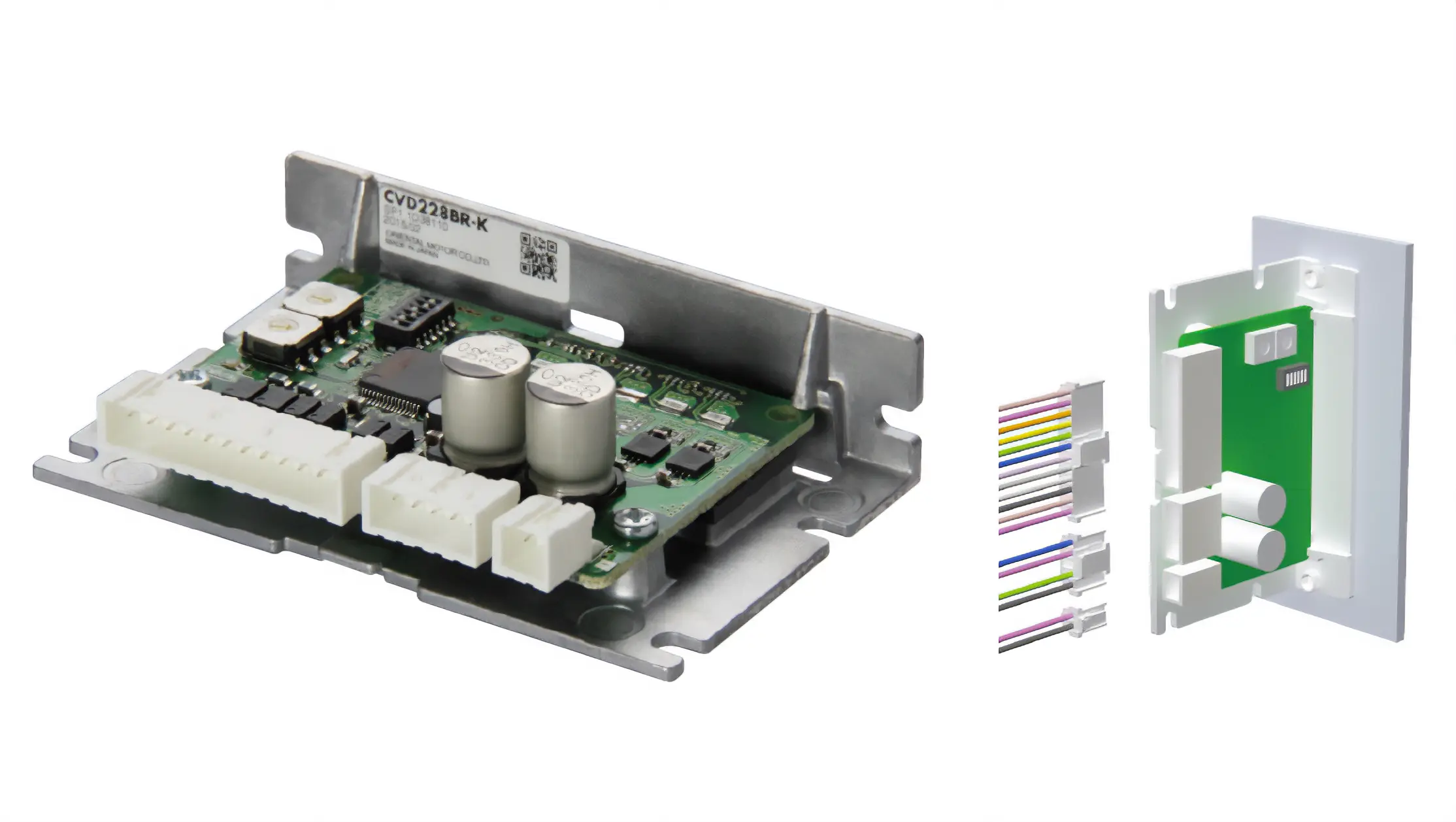

Right-Angle Type With Mounting Plate
The connector faces outwards.
-

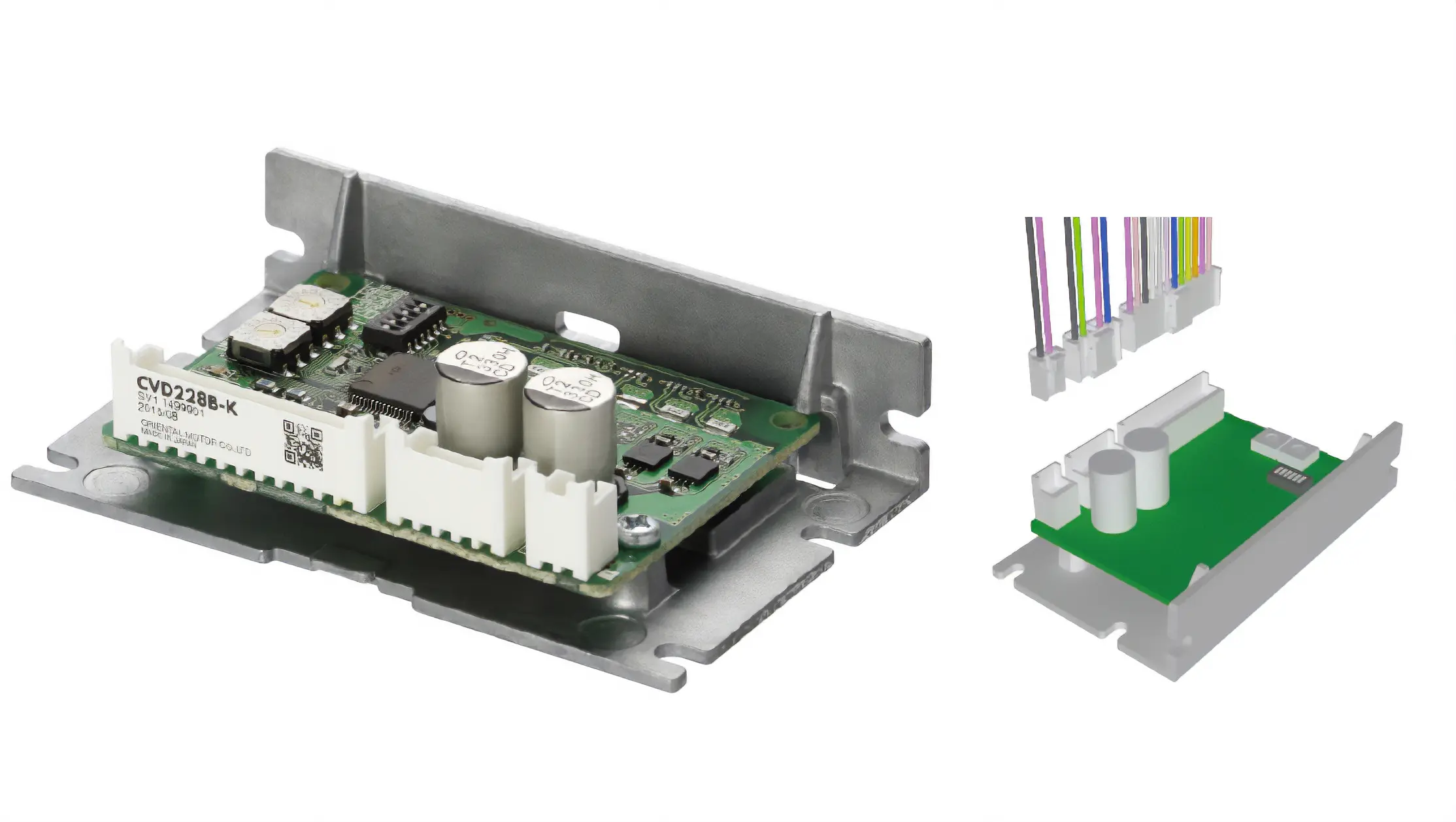

With Mounting Plate
The connector faces upwards.
-
Without Mounting Plate
The connector faces upwards.
2 Types of Drivers to Choose From
Customers can select either the "pulse input type" or the "RS-485 communication type" according to the host controller they are using.

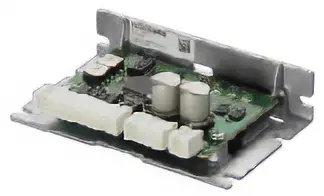

Pulse Input Type
Controllable by pulse signal.

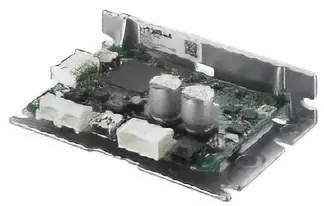

RS-485 Communication Type
Controllable by Modbus (RTU). Operation data such as "position" and "speed" are set to the driver.
Driver Product Line/Applicable Motors
Bipolar Driver for 2-Phase Stepper Motor CVD Series Pulse Input Type
| Driver Product Name | Motor Drive Current | Applicable Motor | ||
|---|---|---|---|---|
| With Mounting Plate Right-Angle |
With Mounting Plate | Without Mounting Plate | ||
| CVD205BR-K | CVD205B-K | CVD205-K | 0.5 A/Phase | PKP213D |
| CVD206BR-K | CVD206B-K | CVD206-K | 0.6 A/Phase | PKP203D, PKP214D |
| CVD215BR-K | CVD215B-K | CVD215-K | 1.5 A/Phase | PKP22□■D, PKP23□D15, PKP24□■D15, PKP262FD |
| CVD223BR-K | CVD223B-K | CVD223-K | 2.3 A/Phase | PKP23□D23, PKP24□D23 |
| CVD223FBR-K | CVD223FB-K | CVD223F-K | 2.3 A/Phase | PKP24□■D |
| CVD228BR-K | CVD228B-K | CVD228-K | 2.8 A/Phase | PKP26□D14, PKP26□■D28 |
| CVD242BR-K | CVD242B-K | - | 4.2 A/Phase | PKP26□D42 |
| CVD245BR-K | CVD245B-K | - | 4.5 A/Phase | PKP29□D |
- *A number indicating the length of the motor case is entered where the box □ is located within the names of the applicable motors.
For the high-resolution type, M (high-resolution type) indicating the motor type is entered where the box ■ is located within the names of the applicable motors.
The applicable motors are listed such that the available combinations with the driver are distinguishable.
Combinations with the encoder type and geared type are also available.
Bipolar Driver for 2-Phase Stepper Motor CVD Series RS-485 Communication Type
| Driver Product Name | Motor Drive Current | Input Current A |
Applicable Motor | |
|---|---|---|---|---|
| With Mounting Plate Right-Angle |
With Mounting Plate | |||
| CVD2BR-KR | CVD2B-KR | 0.5 A/Phase | 0.5 | PKP213D05■ |
| 0.6 A/Phase | 0.5 | PKP203D06■, PKP214D06■ | ||
| 0.85 A/Phase | 0.8 | PKP24□D08■2 | ||
| 1.4 A/Phase | 1.3 | PKP26□D14■2 | ||
| 1.5 A/Phase | 1.9 |
PKP22□D15■, PKP22□MD15■, PKP22□D15■2, PKP23□D15■, PKP24□D15■, PKP24□MD15■, PKP262FD15A |
||
| 1.4 | PKP24□D15■2, PKP24□MD15■2 | |||
| 2.3 A/Phase | 2.0 | PKP23□D23■, PKP24□D23■2, PKP24□D23■ | ||
| 2.8 A/Phase | 3.0 | PKP26□D28■2, PKP26□MD28■2, PKP26□D28■, PKP26□MD28■ | ||
- *A number indicating the length of the motor case is entered where the box □ is located within the names of the applicable motors.
Either A (single shaft) or B (double shaft) indicating the configuration is entered where the box ■ is located within the names of the applicable motors.
The applicable motors are listed such that the available combinations with the driver are distinguishable.
Combinations with the encoder type and geared type are also available.
2Click here for information about the 2-Phase PKP Series
Driver for 5-Phase Stepper Motor CVD Series Pulse Input Type
| Driver Product Name | Motor Drive Current | Applicable Motor | ||
|---|---|---|---|---|
| With Mounting Plate Right-Angle |
With Mounting Plate | Without Mounting Plate | ||
| CVD503BR-K | CVD503B-K | CVD503-K | 0.35 A/Phase | PK513, PK52□, PKP52□N03, PKP52□MN03 |
| CVD507BR-K | CVD507B-K | CVD507-K | 0.75 A/Phase | PK52□H, PK54□, PKP52□N07, PKP52□MN07 |
| CVD512BR-K | CVD512B-K | CVD512-K | 1.2 A/Phase | PKP52□N12 |
| CVD514BR-K | CVD514B-K | CVD514-K | 1.4 A/Phase | PK56□ |
| CVD518BR-K | CVD518B-K | CVD518-K | 1.8 A/Phase | PKP54□ |
| CVD524BR-K | CVD524B-K | CVD524-K | 2.4 A/Phase | PKP56□FN24, PKP56□FMN |
| CVD528BR-K | CVD528B-K | - | 2.8 A/Phase | PKP56□N28, PK56□H, PK59□H |
| CVD538BR-K | CVD538B-K | - | 3.8 A/Phase | PKP56□FN38 |
- *A number indicating the length of the motor case is entered where the box □ is located within the names of the applicable motors.
The applicable motors are listed such that the available combinations with the driver are distinguishable.
Combinations with the encoder type and geared type are also available.
Driver for 5-Phase Stepper Motor CVD Series RS-485 Communication Type
| Driver Product Name | Motor Drive Current | Input Current A |
Applicable Motor | |
|---|---|---|---|---|
| With Mounting Plate Right-Angle |
With Mounting Plate | |||
| CVD5BR-KR | CVD5B-KR | 0.35 A/Phase | 0.6 | PK513, PK52□P, PKP52□N03, PKP52□MN03 |
| 0.75 A/Phase | 1.4 | PK52□H, PK54□, PKP52□N07, PKP52□MN07 | ||
| 1.2 A/Phase | 1.7 | PKP52□N12 | ||
| 1.4 A/Phase | 1.8 | PK56□ | ||
| 1.8 A/Phase | 2.8 | PKP54□N18■2, PKP54□N18■, PKP54□MN | ||
| 2.4 A/Phase | 3.0 | PKP56□FN24■2, PKP56□FMN | ||
- *A number indicating the length of the motor case is entered where the box □ is located within the names of the applicable motors.
Either A (single shaft) or B (double shaft) indicating the configuration is entered where the box ■ is located within the names of the applicable motors.
The applicable motors are listed such that the available combinations with the driver are distinguishable.
Combinations with the encoder type and geared type are also available.
Related Products
Bipolar Driver for 2-Phase Stepper Motors
Driver for 5-Phase Stepper Motors

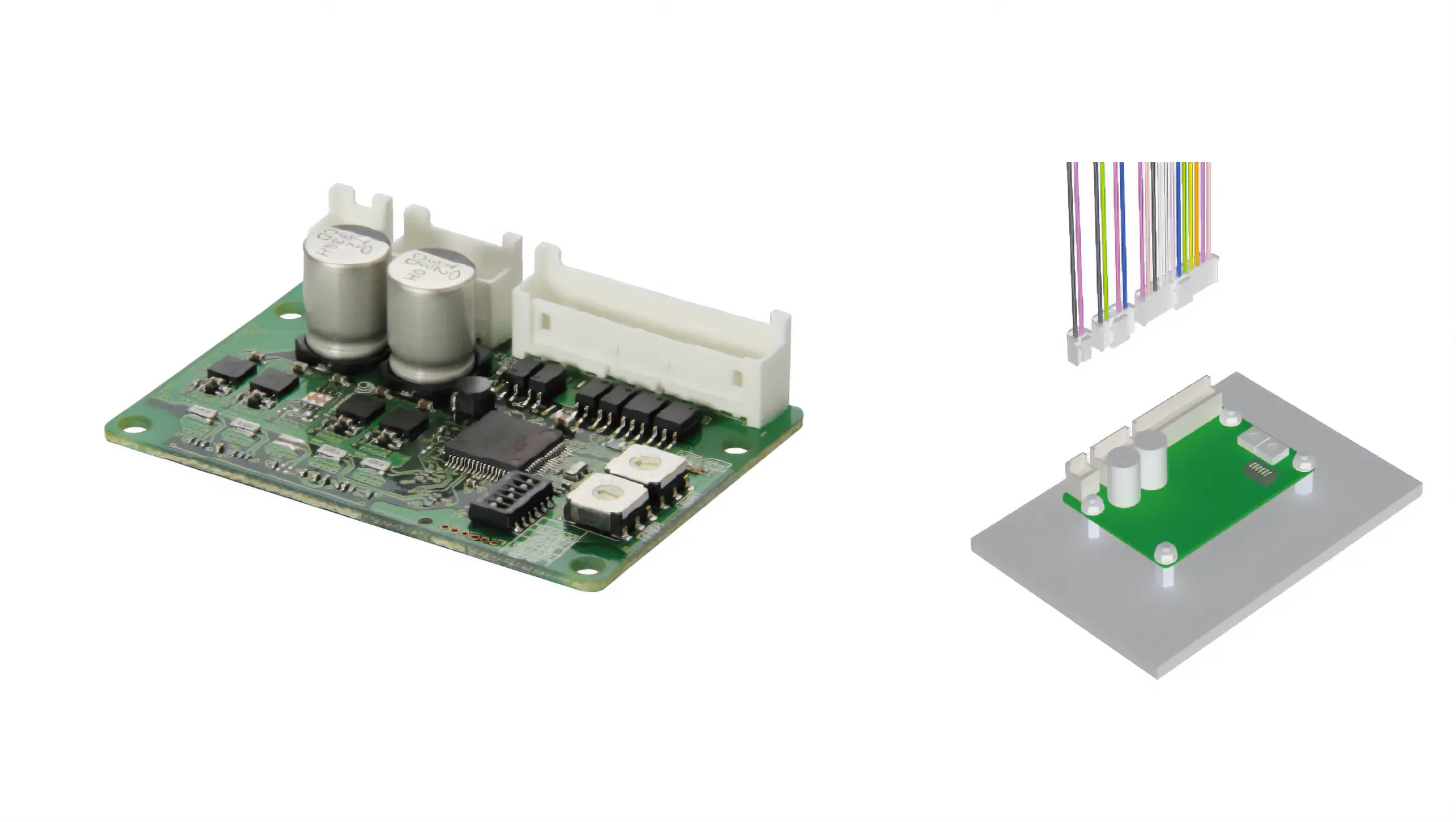

CVD Series S Type
