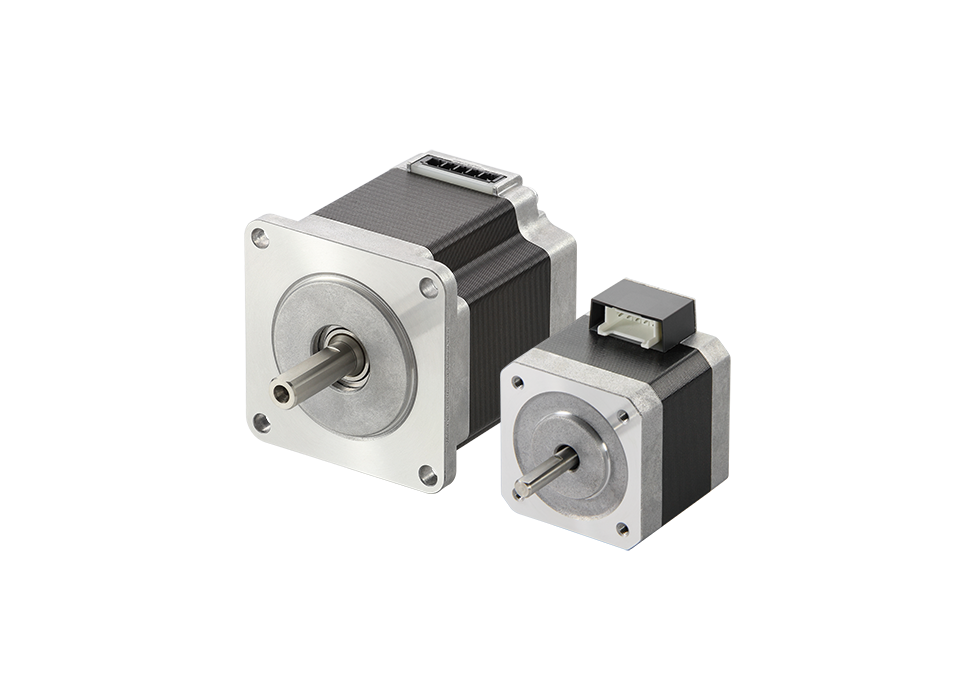

5-Phase Stepper Motors

PKP/PK Series

5-Phase Stepper Motors PKP/PK Series
  • High torque, low vibration
  • Frame Size: 20 to 85 mm
  • Geared type and type including an encoder also available

Features | 5-Phase Stepper Motor PKP/PK Series

Improved Performance

High Accuracy

Since the step angle of 5-phase PKP Series is at 0.72˚ (high-resolution type at 0.36˚) and the stopping accuracy is at ±0.05˚, highly accurate positioning is possible. In addition, the stop position accuracy controlled by a microstep driver has almost the same high accuracy as that controlled by a full-step driver.

Stopping Accuracy Does Not Get Worse With Microstep

(5-Phase CVD Series Driver + 5-Phase PKP Series Motor)

5-phase full-step stopping accuracy
5-phase microstep stopping accuracy

Low Vibration

As the 5-phase PKP Series has a small basic step angle of 0.72˚ (0.36˚ for high-resolution type), it is lower in vibration and noise than 2-phase stepper motors with a basic step angle of 1.8˚. Also, vibrations and noise can be further reduced through control with the driver of the microstep drive.

Example of 2-Phase Stepper Motor Vibration Characteristics

Example of 2-Phase Stepper Motor Vibration Characteristics

Example of 5-Phase Stepper Motor Vibration Characteristics

Example of 5-Phase Stepper Motor Vibration Characteristics

Click here for details on, such as an overview, characteristics, and features of this product (Technical report)

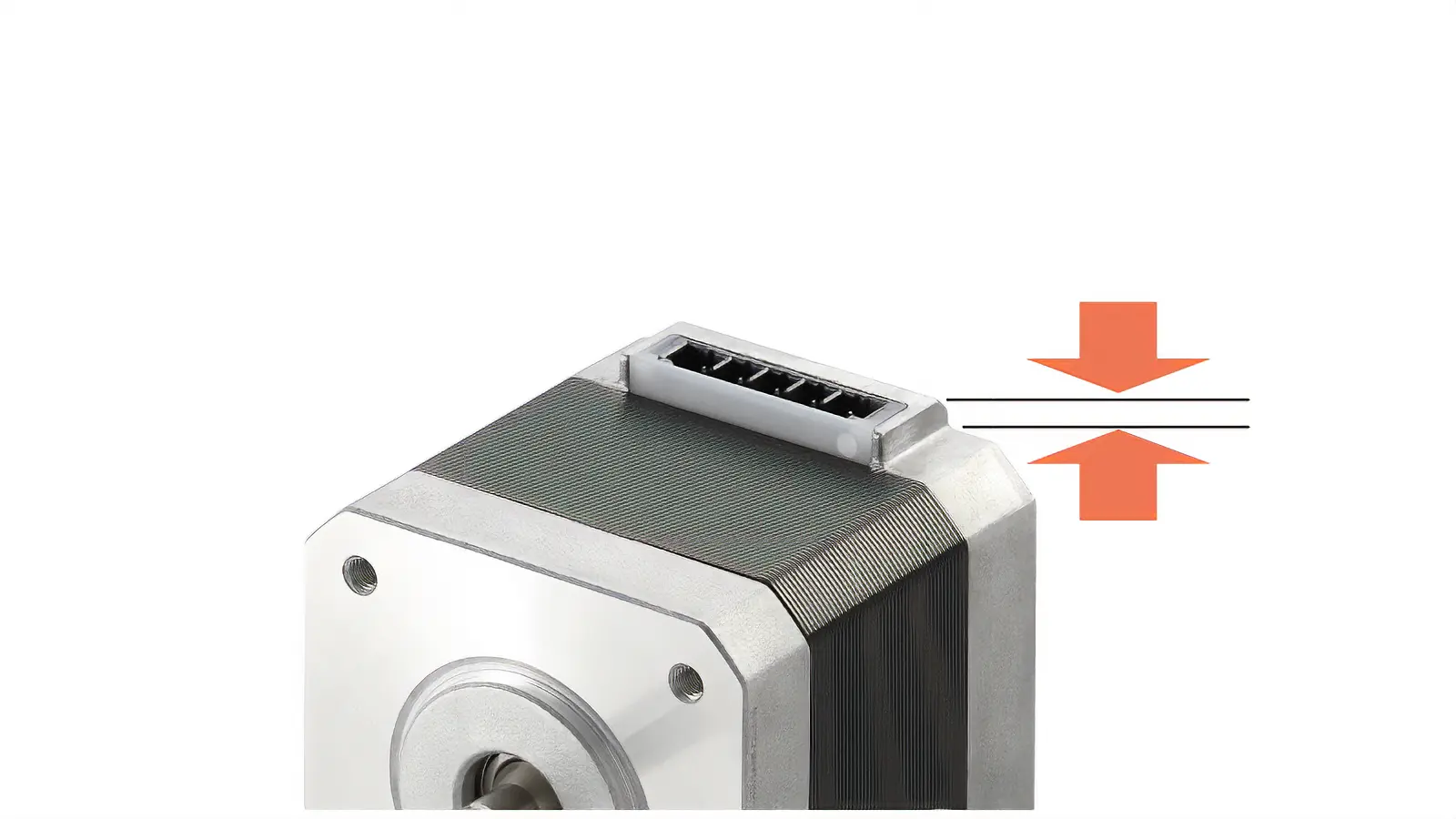

Compact and Flat Connector

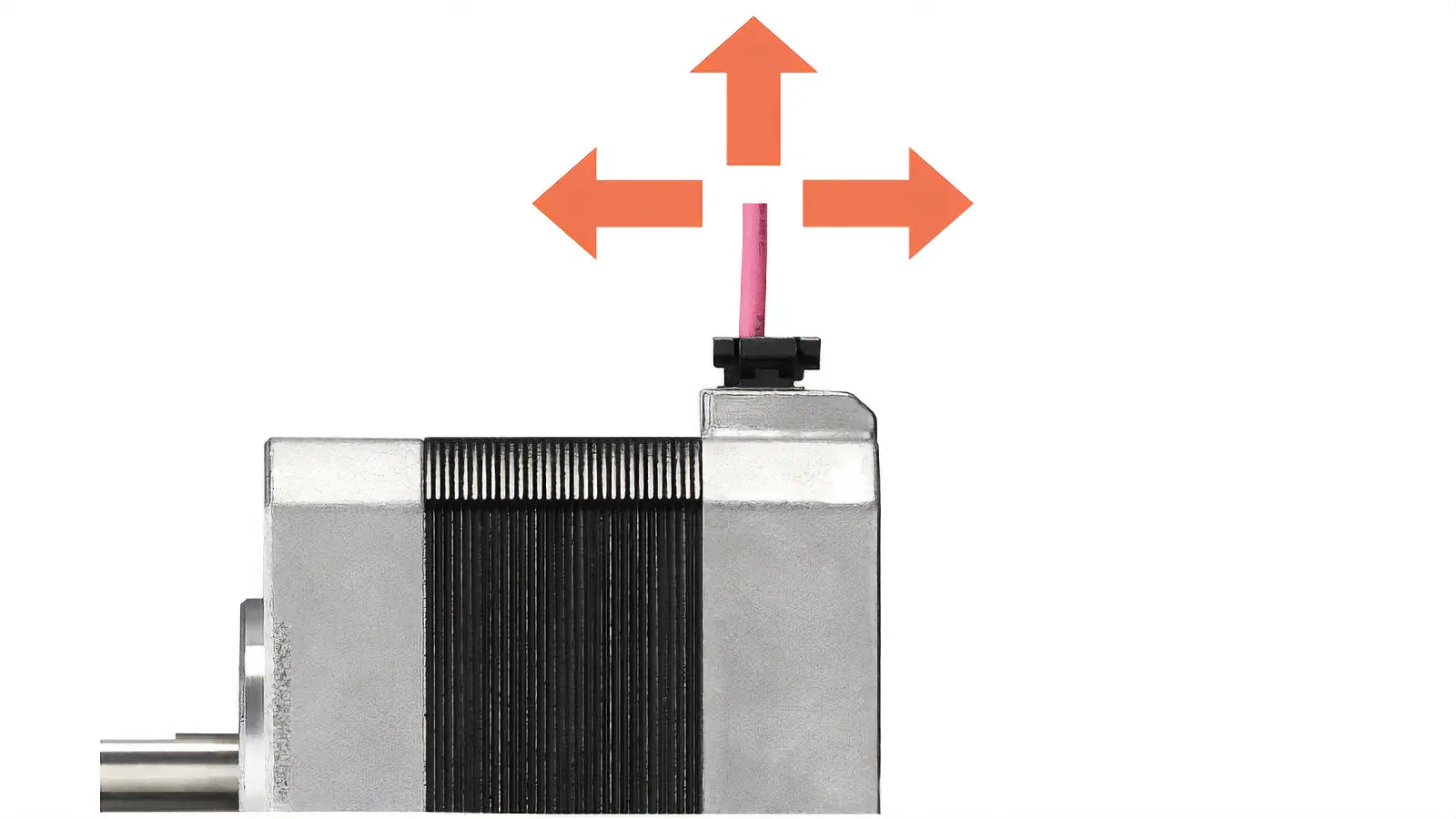

The PKP Series uses a compact and flat connector, which lowers the connector's overhang (excluding some products). In addition, flexibility for the motor cable outlet direction has been increased, as outlet direction points upward.

pkp244d23b2
pkp cable outlet
  • *For details, refer to the dimensions diagram of each motor.

Click here for details on the development (Technical Report)

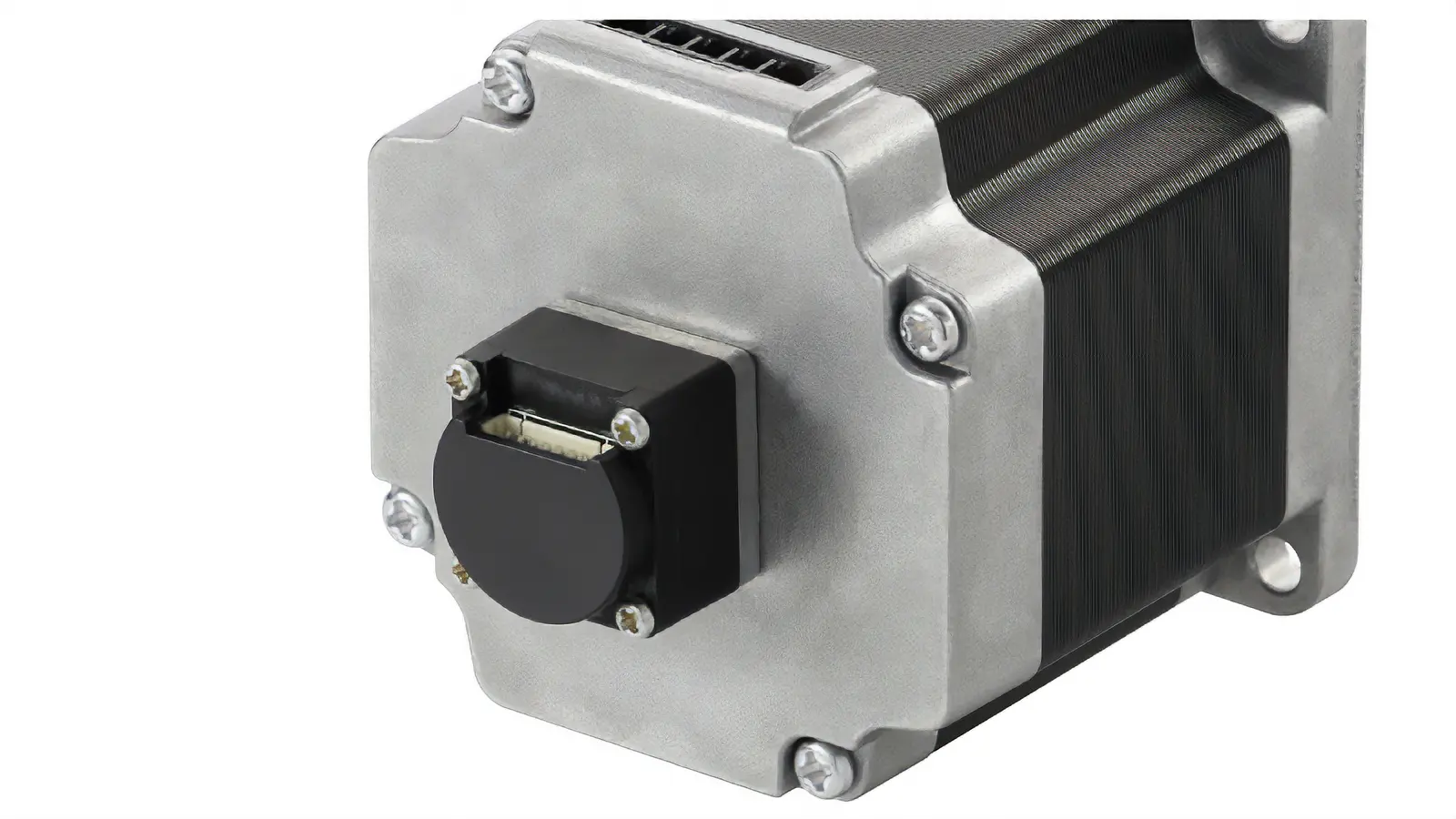

With Encoder

Models equipped with an encoder are available. Comparing the command position and current position enables you to check the normal operation of the motor.

Encoder

Encoder’s Main Specifications

Type Standard Type
Resolution 500 P/R, 1000 P/R*
Angular Accuracy ±0.36° (converted value at motor output shaft)
Output Signals Phase A, Phase B, Phase Z (3ch)
  • *The standard types with a frame size of 42 mm and 60 mm are also available with a resolution of 1000 P/R. Click here for details about products

Angle Accuracy

This is the calculation error between the actual rotation angle and the angle output from the encoder.

Angle Accuracy

Motor Position Detection is Possible

Monitoring the current position and detecting positional errors are possible.
For example, comparing the command position and current position enables you to check the normal operation of the motor.

System Configuration Example

System Configuration Example
  • *Converted value at motor output shaft

Enables Highly Repeatable Return-to-Home Functioning

Since the Z-phase signal is output at the step "0" position (stability point), it can be a substitute for the home sensor (a sensor attached to the motor shaft that detects the home within one revolution).
It also makes it easier to use the Z-phase output signal and TIM output signal* together and improves the repeatability of the return-to-home function.

  • *This is the signal output from the driver each time the motor output shaft rotates 7.2° (3.6° for high-resolution types) from the home position.

When the Timing of Z-phase Output is Fixed
New Encoder (Magnetic type)

When the Timing of Z-phase Output is Fixed  New Encoder (Magnetic type)

It outputs Z-phase signals with a width of ±3.6° centered on the step "0" position (stability point).

When the Timing of Z-phase Output is not Fixed

When the Timing of Z-phase Output is not Fixed

Since the output timing of the Z-phase signal is not fixed, it is difficult to use it as a substitute for the home sensor, and it is also difficult to use it together with the TIM signal.

Compact Encoder Equipped

When frame size is 56.4 mm

  • *The orange area in the dimensions diagram is the encoder section.
Encoder Size

Choose Between Voltage Output Type and Line Driver Output Type

A voltage output type and line driver output type are available.
A useful cable for wiring the encoder is also available separately.

Motor Types

Classification Type Frame Size
[mm]
Basic Step Angle
[°]
Additional Function
No Gearhead

Standard

Standard Type
20~85 0.72 Encoder

High resolution

Standard Type
42, 60 0.36 None
With Gearhead

TS geared

TS Geared Type
42, 60 0.024~0.2 None

Product Line

Type Basic Step Angle
[°]
Frame Size
[mm]
Maximum Holding Torque
[N·m]
Rated Current
[A/Phase]
Mini Connector Specifications
Mini Connector Specifications
Connector Specifications
Connector Specifications

Standard Type

0.72 20 0.0231 0.35
28 0.052~0.091 1.2
42*1 0.22~0.5 1.8
56.4*2 0.44~1.5 2.8
60 0.66~2.1 2.4~3.8
85 2.1~6.3 2.8
High-Resolution Type

High-Resolution Type

0.36 28 0.042~0.09 0.35~0.75
42 0.26~0.44 1.8
60 0.78~2.3 2.4
Standard Type With Encoder

Standard Type With Encoder

0.72 28 0.048~0.091 0.35~1.2
42 0.22~0.5 1.8
56.4 0.44~1.5 2.8
60 0.66~2.1 2.4~3.8
High-Resolution Type With Encoder

High-Resolution Type With Encoder

0.36 28 0.042~0.09 0.35~0.75
42 0.26~0.44 1.8
60 0.78~2.3 2.4
TS Geared Type

TS Geared Type

0.2~0.024 42 0.65~2.3 1.8
60 1.8~6 2.8
*1
Mini connector and connector specifications are available according to differences in characteristics and connector shapes.
*2
Products with a shaft diameter of φ6.35 mm are also available. For details, please contact your nearest Oriental Motor branch or sales office.
