Select From Cooling and Heat Measures - Ventilation, Cooling, Drying, Suction
You can choose a product with heat solutions such as ventilation, cooling, and protection from condensation on control panels.

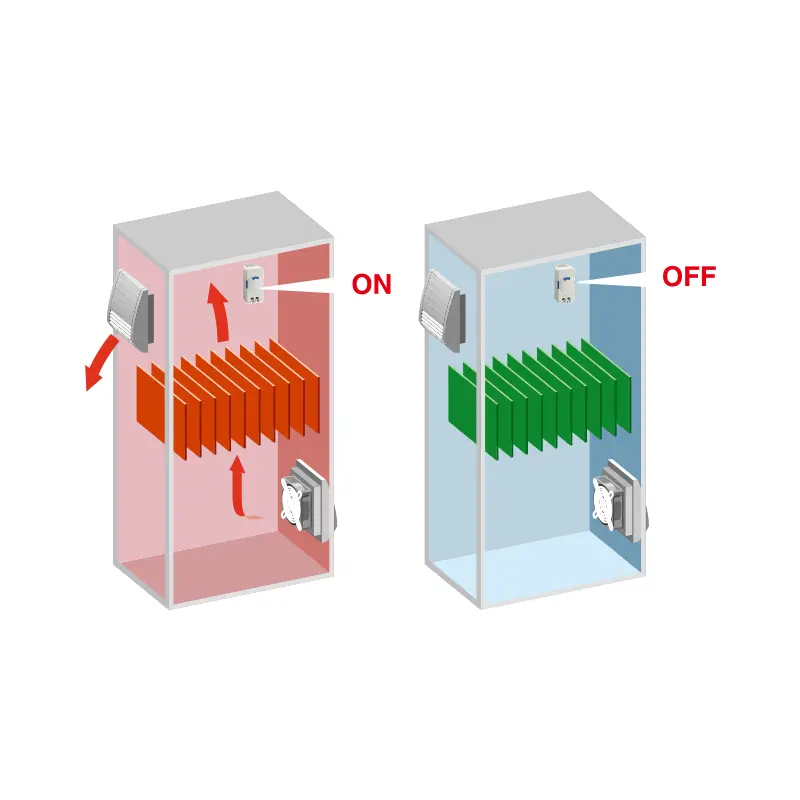

Automatic Operation and Stopping of Fans and Heaters
Automatic Operation and Stopping of Fans and Heaters

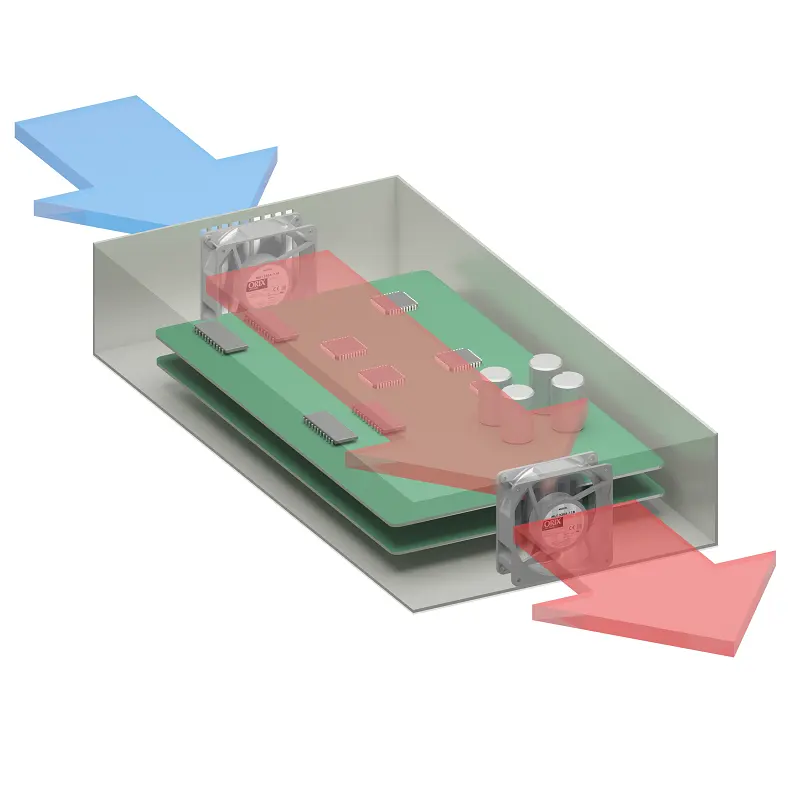

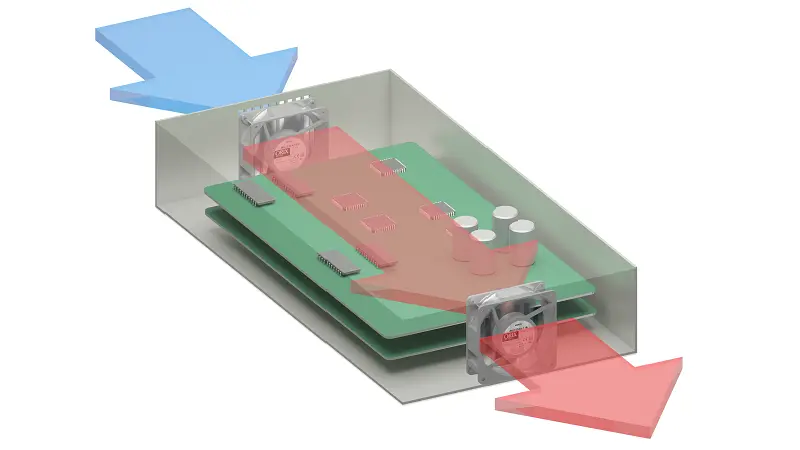

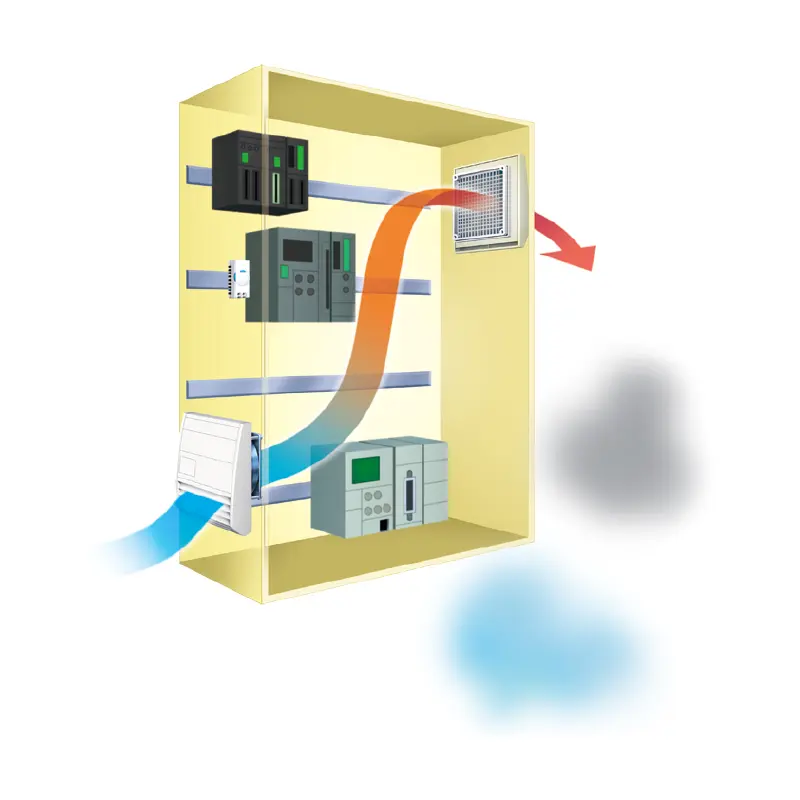

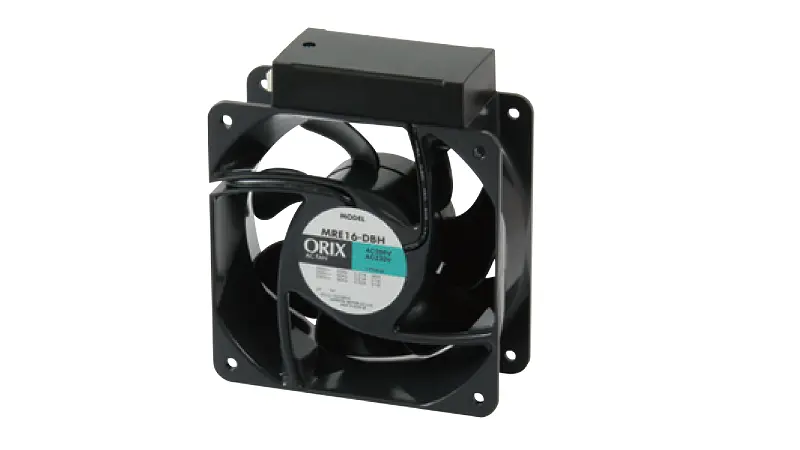

Ventilation and Cooling, Drying, Air Flow
| Power Supply Input | Size | Series |
|---|---|---|

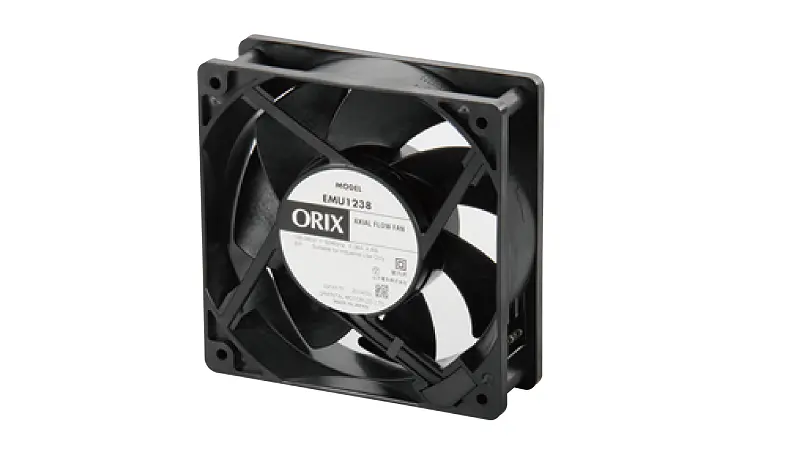

| AC Input (Wide voltage compatible) |
Frame Size: 90 mm, 120 mm |
|

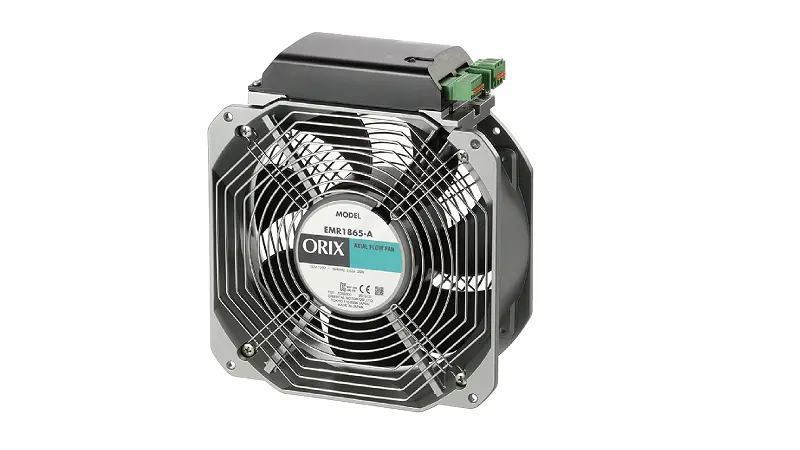

| AC Input | Frame Size: 180 mm |
|

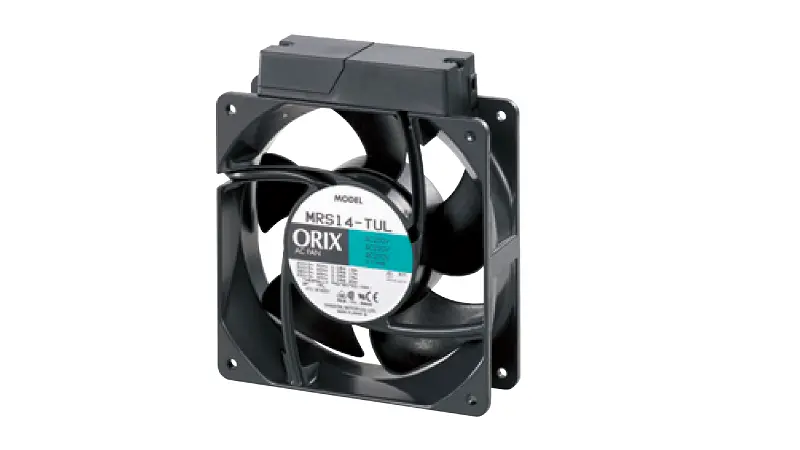

| Frame Size: 80∼140 mm |
||
| Frame Size: 140∼250 mm |
||
| Frame Size: 104∼250 mm |
||

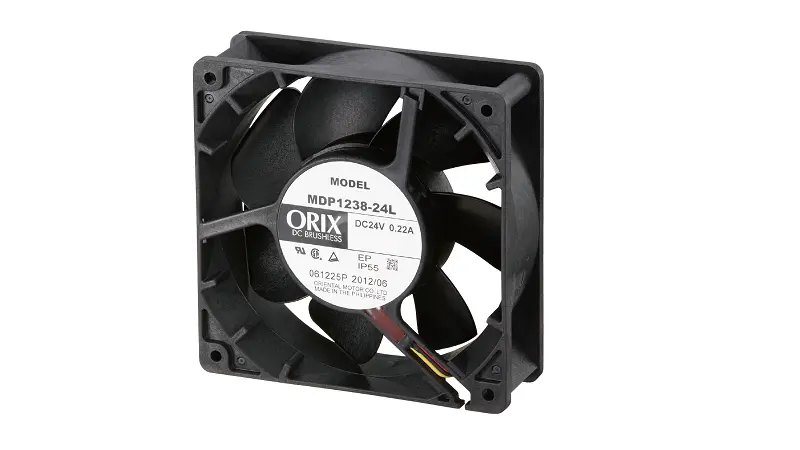

| DC Input | Frame Size: 40∼140 mm Frame Size: φ172 mm |

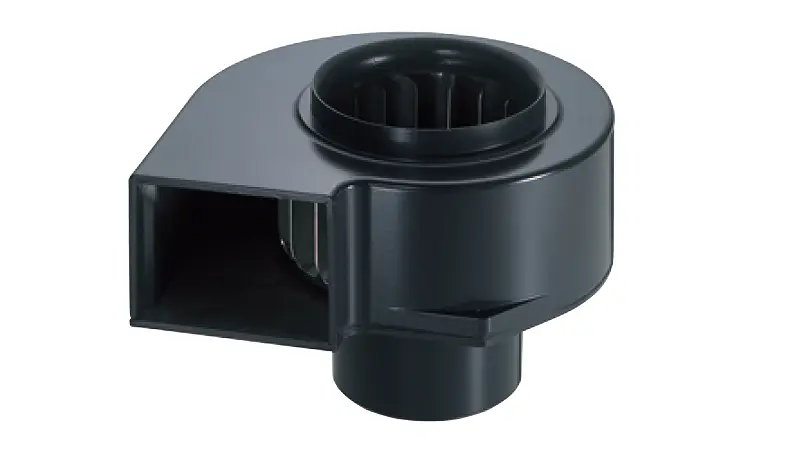

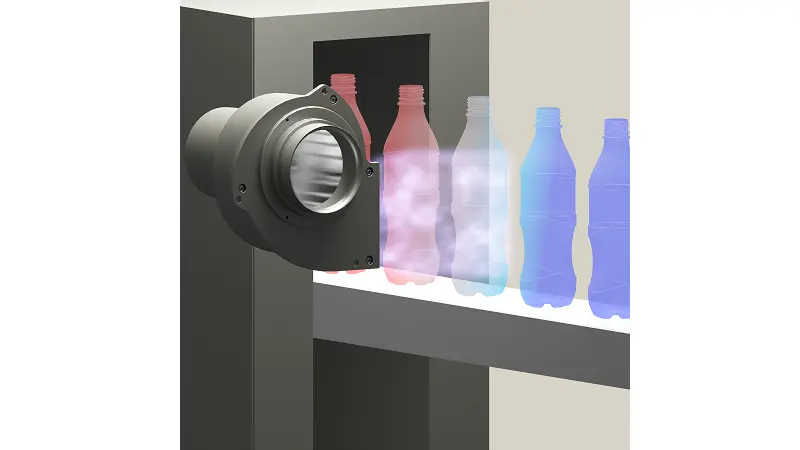

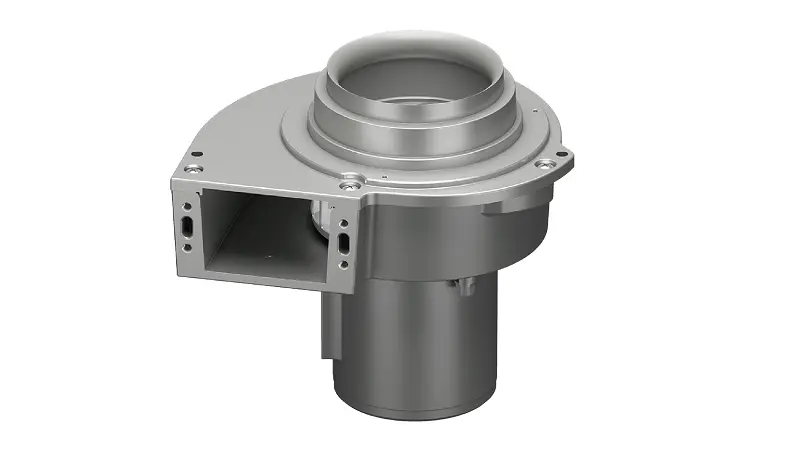

Spot Cooling and Duct Air Flow
| Power Supply Input | Size | Series |
|---|---|---|

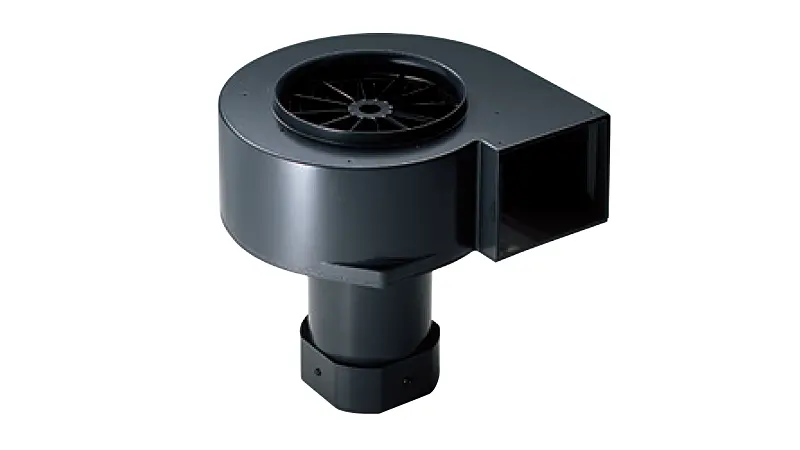

| AC Input | Impeller Diameter: φ50∼φ160 mm |
|
| Impeller Diameter: φ100, φ120 mm |
||
| DC Input | Impeller Diameter: φ80∼φ120 mm |

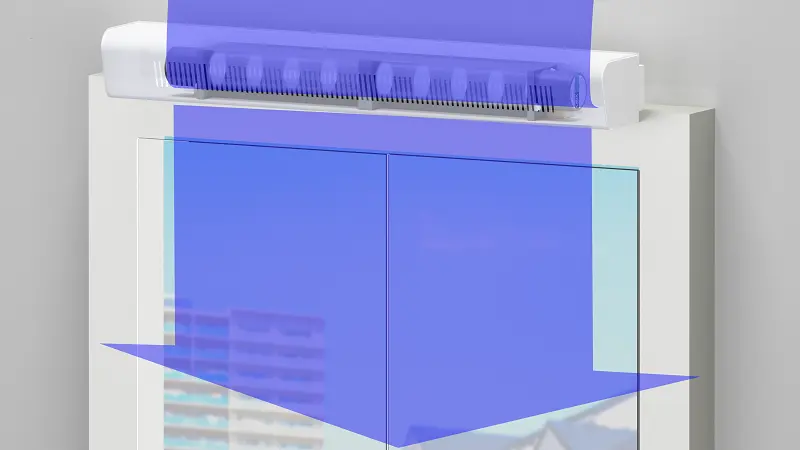

Uniform and Wide Air Flow
| Power Supply Input | Size | Series |
|---|---|---|

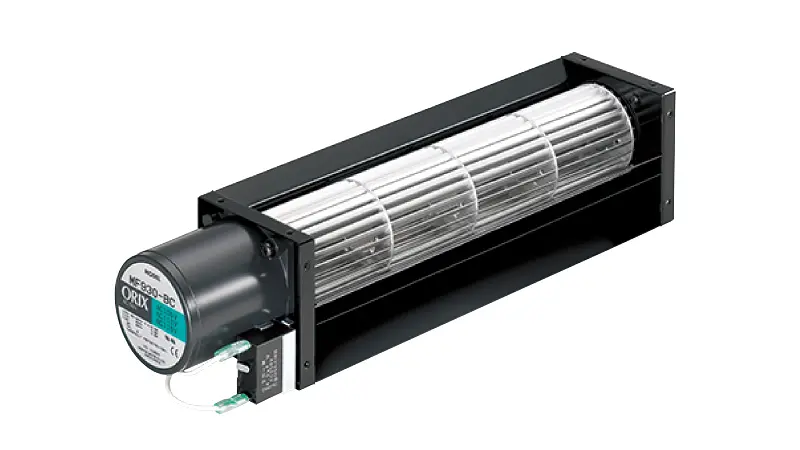

| AC Input | Impeller Length: 150, 300 mm |
|

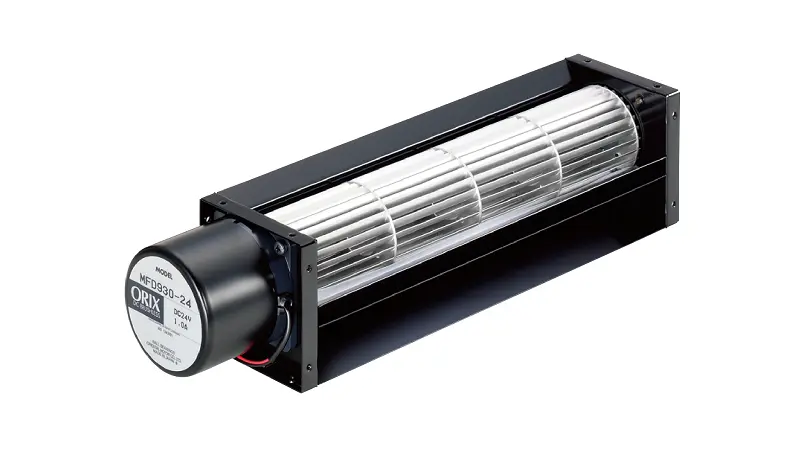

| DC Input | Impeller Length: 150, 300 mm |
The required air flow of the fan can be calculated by entering the size and material of the control cabinet and the temperature inside and outside the control cabinet. The calculation result can be used to select the most suitable fan.
