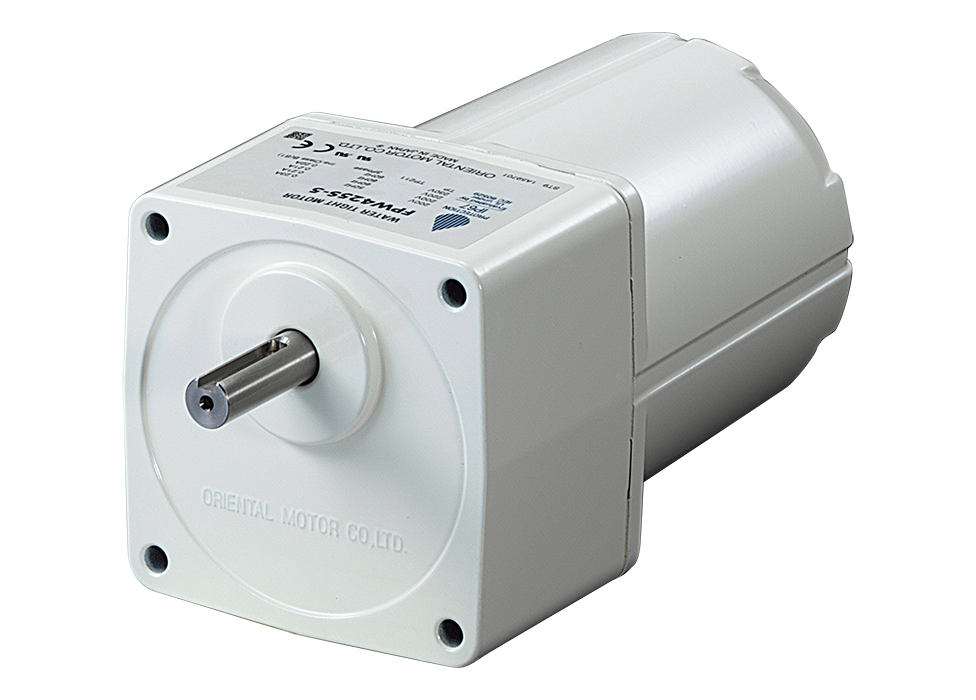

Watertight, Dust-Resistant Motors
FPW Series
- Conforms to IEC Standard IP67
- Ideal for Applications Where Water Splashes are Expected or Periodic Rinsing is Required
- Output Power 25 to 90 W
Features | Watertight and Dust-Resistant Motor FPW Series
Watertight and Dust-Resistant Performance IP67
This is a dustproof and watertight type geared motor that can be used even in places exposed to water. It conforms to the IP67 rating under the IEC Standards.
Unsuitable for use underwater or in high water pressure environments.
- IP67
- The IP indication that shows the watertight and dust-resistant performance is specified under IEC60529 and IEC60034-5.
The FPW Series has been certified by UL as IP67. (UL File No. E166348)
Improved Anti-Corrosion Properties
Anti-corrosion properties have been improved by using a special coating and reviewing the shaft material [stainless steel (SUS303 Series)].
Designed and Structured for Watertight and Dust-Resistant Performance
Conforms to Overseas Safety Standards and Global Voltage
Items in this series conform to the UL/CSA Standards certified, and also have the CE Marking (Low Voltage Directive) affixed. We have also obtained certification from the China Compulsory Certification System (CCC System).
Product Line
| Series | Voltage (V) | Upper Row: Mounting Angle (mm)/Lower Row: Output Power (W) | |||
|---|---|---|---|---|---|
| 80 | 90 | 104 | |||
| 25 | 40 | 60 | 90 | ||
| FPW | Single-Phase 100 | ● | ● | ● | ● |
| Single-Phase 110/115 VAC | ● | ● | ● | ● | |
| Single-Phase 200 | ● | ● | ● | ● | |
| Single-Phase 220/230 | ● | ● | ● | ● | |
| Three-Phase 200/220/230 VAC | ● | ● | ● | ● | |
- *Combining the FPW Series with a control circuit enables an instantaneous stop.
-
- For instantaneous stopping:
- Brake Pack SB50W (Sold separately)
-
Related Products
Products with an IP67 degree of protection and 200 W output power are available.
BMU Series Watertight, Dust-Resistant Connector Type
Easy operation just to rotate and push the setting dial, and simple wiring only to connect the motor and driver. A compact, high power, and high efficiency brushless motor with excellent speed stability, regardless of frequency.
BLE2 Series Watertight, Dust-Resistant Connector Type
Speed settings up to 16 speeds and torque limiting are available. A compact, high power, and high efficiency brushless motor with excellent speed stability, regardless of frequency.
