Enclosure Fan Modules

Enclosure Fan Modules
  • Ideal for Control Panel Cooling
  • Integration of the Axial Flow Fan and Accessories
  • Foreign Particles and Water Droplet Ingress Protection
  • We Offer IP2X, IP4X, and IP43/55
  • We Provide Individual Panels for Natural Cooling Purposes
Notice DC fan-equipped products are scheduled to be discontinued.
Click here for an alternative product

Features | Enclosure Fan Modules

What are Enclosure Fan Modules

This enclosure fan module is a product that integrates a fan and accessories (with cover, filter media, frame and finger guard).
Optimized cooling for control cabinets.

What are Enclosure Fan Modules

(In the case of the finger guard module with an IP2X rating filter.
The actual product will be delivered assembled)

(In the case of a finger guard cover panel with an IP2X rating filter.
The actual product will be delivered assembled)

Easy to Select, Arrange, Mount, and Maintain Because of Its Integrated Design

Because the enclosure fan modules have an integrated structure, their characteristics are clear, and they are easy to select and easy to arrange.
They are also easy to install and maintain.

Clear Characteristics, Easy to Select, and Easy to Arrange

Because the characteristics of when finger guard, filter, cover, etc. are attached are clear, it is easy to make a selection.

For Reference: Air flow – static pressure characteristics vary according to product
For Reference: Air flow – static pressure characteristics vary according to product.
For Reference: Air flow – static pressure characteristics vary according to product.

Easy Installation

When the necessary accessories are arranged separately, assembling many parts with a single screw is time-consuming and difficult to replace.

The enclosure fan module can be easily installed due to its integrated structure.
The finger guard module uses a speed nut, eliminating the need to press down on the nut with hands or tools, and the worry about the nut falling off. Excellent workability.

When Necessary Accessories are Ordered Separately

Watch the video to see the features.

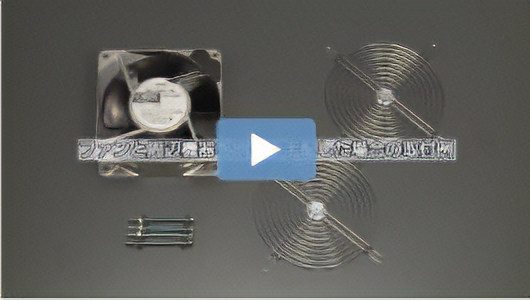

[Video] When the necessary accessories are arranged separately

The mounting holes shown in the video are round holes, but octagonal holes are recommended for the discharge side of the fan itself.

Easy Maintenance

The body cover can be easily detached from the outside. Filter media replacement is easy.
(Periodic replacement of the filter media is recommended, as clogging reduces the cooling capacity.)

Easy Maintenance

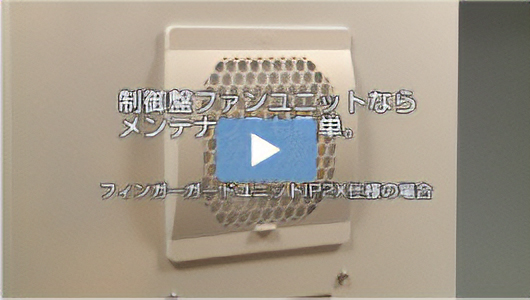

(When using a finger guard module with an IP2X rating)

Improves Equipment Reliability (Slit Metal Plate Module IP4X Rating, Dust and Water Resistant Module IP43/IP55 Rating)

If dust or water droplets enter the control cabinet, the internal devices may malfunction, which can affect the entire equipment system.
The IP4X rating slit metal plate modules and the IP43/IP55 rating dust and water resistant modules prevent the infiltration of dust and water droplets, which improves the service life and reliability of the devices contained in the control cabinet.

Improved Reliability of Equipment

Fan With Alarm for Added Reliability!

When the cooling fan stops, heat builds up in the control cabinet.
This heat can also generate heat in the internal equipment, causing it to failure and adversely affecting the lifetime of the equipment.
With a fan with an alarm, cooling abnormalities in the control cabinet can be detected early and the fan can be replaced before it causes heat damage to the equipment.

Low-Speed Alarm Function Equipped Predictive Maintenance

An alarm signal is output when the rotation speed of the fan deteriorates due to ingress of foreign particles, etc. This helps with predictive maintenance of equipment issues, as fans can be ordered and replaced before equipment is damaged by heat. It also allows replacement of only those fans with deteriorating cooling capacity when there are multiple fans installed. It can limit the impact on the equipment to minimum.

Low-Speed Alarm Function Equipped

Product Line

With Fan

Finger Guard Module
IP2X Rating
Slit Metal Plate Module
IP4X Rating
Dust and Water Resistant Module
IP43/55 Rating
Finger Guard Module IP2X Rating Slit Metal Plate Module IP4X Rating Dust and Water Resistant Module IP43/55 Rating
Installed Fan Low power consumption AC fan Low power consumption AC fan -
AC fan AC fan AC fan
Panel Color*/
Panel Painting Color*
  • Beige Beige
  • Cream Cream
  • Light gray Light gray
  • Beige Beige (5Y7/1)
  • Cream Cream (2.5Y9/1)
  • Light gray Light gray
List Price 5,300 JPY~ 8,900 JPY~ 7,700 JPY~
  • *The actual color may vary depending on the monitor screen settings.

Panel (without fan)

Finger guard cover panel
IP2X Rating
Slit Metal Cover Panel
IP4X Rating
Dust and Water Resistant Cover Panel
IP43/55 Rating
Finger Guard Cover Panel IP2X Rating Slit Metal Cover Panel IP4X Rating Dust and Water Resistant Cover Panel IP43/55 Rating
Product Details
Panel color*/
Panel Painting Color*
  • Beige Beige
  • Cream Cream
  • Light gray Light gray
  • Beige Beige (5Y7/1)
  • Cream Cream (2.5Y9/1)
  • Light gray Light gray
List Price 1,250 JPY~ 6,600 JPY~ 4,200 JPY~
  • *The actual color may vary depending on the monitor screen settings.

Note

It is not possible to attach a cooling fan to the panel later.

Related Products

Cover panel set for enclosure

This is a set of panels, finger guards and filters, and screws that are ideal for ventilation and cooling of control cabinets.
Since it can be retrofitted, it is ideal for when a panel is needed after the fan is purchased.
It can be used in combination with AC axial flow fans and DC axial flow fans alone.

[Combinable Axial Flow Fans]

Cover Panel Set for Enclosure
Narrow down Products

Narrow down Products

Download

Catalog

View More About F-73_fan_seigyo
F-73_fan_seigyo

F-73_fan_seigyo

Enclosure Fan Modules

PDF

Operating Manual

Lineup and Related Information
