Linear Heads

LH Linear Heads

(Speed control motors)

Linear Heads LH Linear Heads (Speed control motors)
  • By Combining with a Motor, Linear Movements Such as Pushing, Pulling, Raising, and Lowering are Possible
  • Maximum Transportable Mass 140 kg
  • Stroke 100 to 700 mm
  • Motor Combination : Speed control motor

Features | Linear Head "LH Linear Head" (Speed control motor)

Features of the Linear Head

The motor can integrate with a rack-and-pinion mechanism to provide linear motion for pushing, pulling, raising, and lowering.

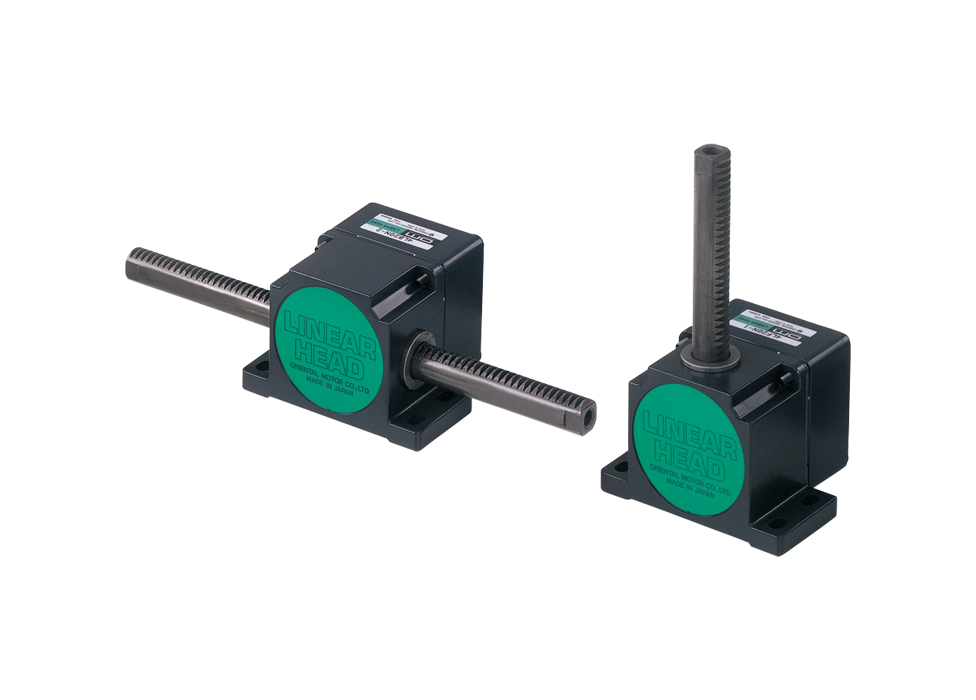

LH Linear Heads
Maximum Transportable Mass ~140 kg
Stroke 100~700 mm
Operating Speed
  • 10 mm/s
  • 20 mm/s
  • 45 mm/s
  • *Refer to the product line for details.
Combination Motor AC speed control motors
(MSD Series)

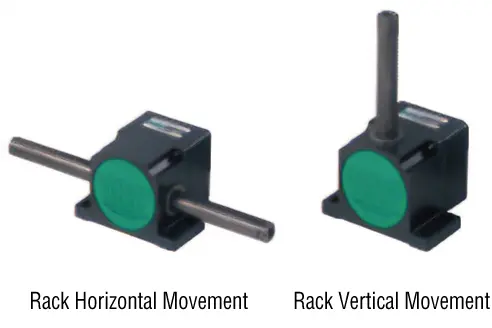

Linear Head Shape
(Rack moving direction)

2 types available

2 types available

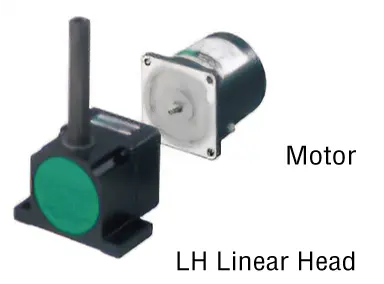

Motor Assembly Method

Assemble motor

Assemble motor

Contributes to Improved Design Efficiency

  • Reduces Startup Time From Design

    Compared to building the rack-and-pinion mechanism on your own, the number of parts used and the labor required for design and assembly can be reduced.

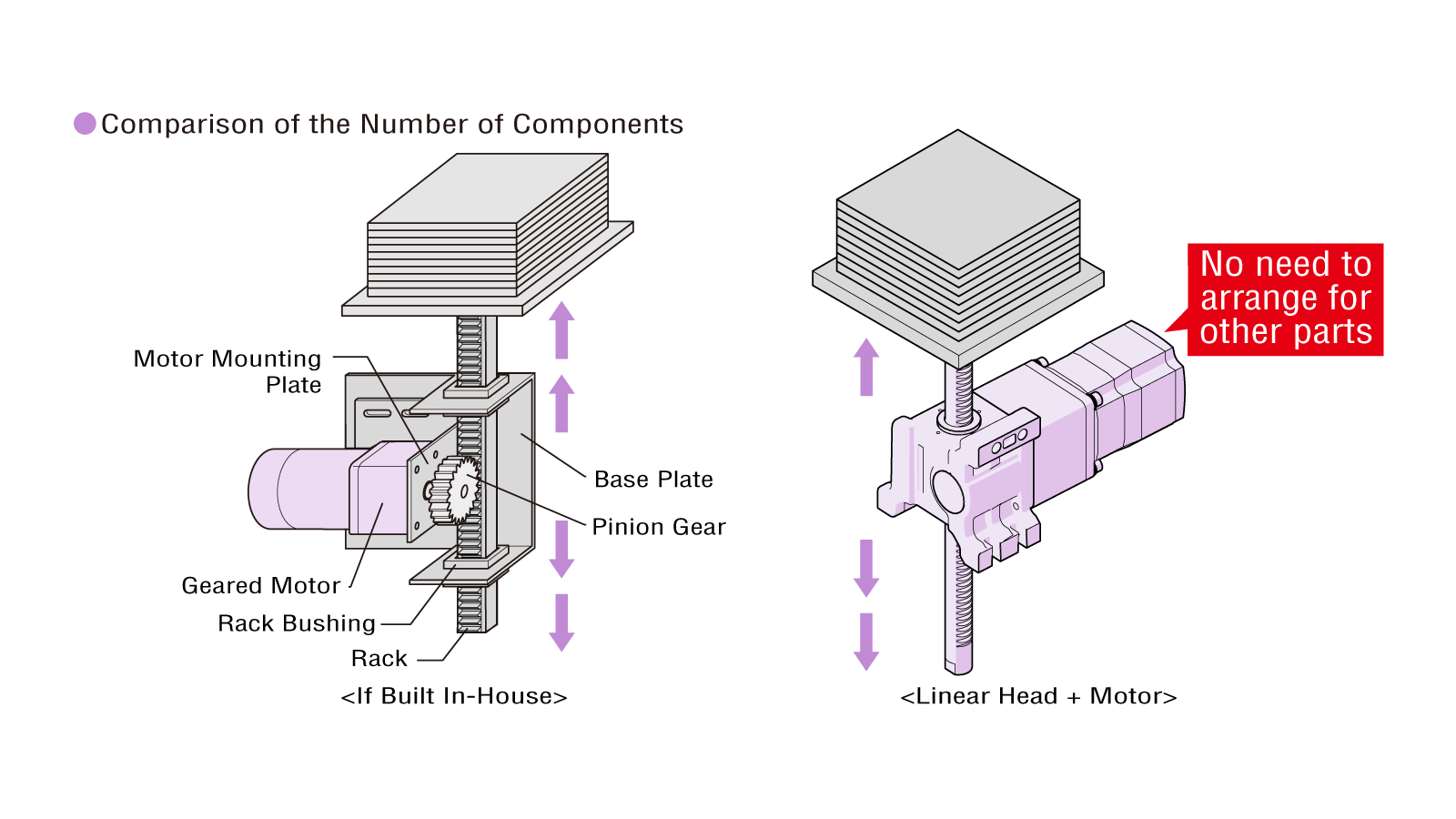

    Comparison of the Number of Components
  • Fix the Rack to Make the Best Use of Space

    The motor can run by itself by fixing both ends of the rack.
    Effective when it is difficult to find motor space.

    Effective use of rack fixing space

Applications

The rack-and-pinion mechanism is easy-to-use and can be incorporated as a component.

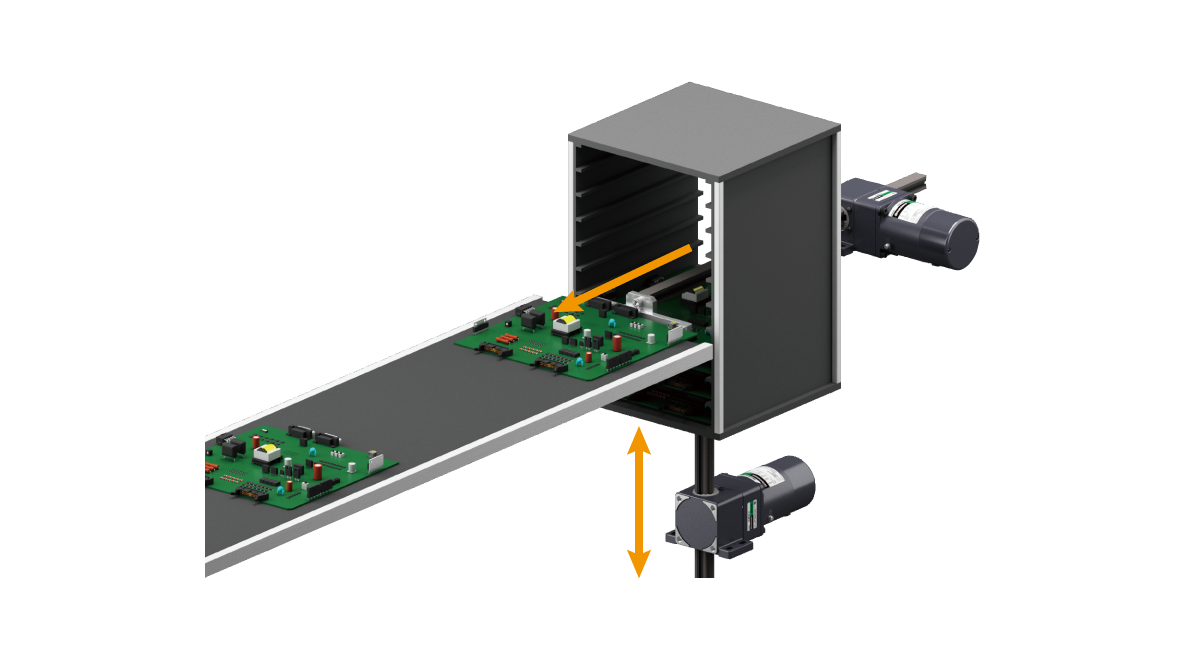

Rack-and-pinion application examples
  • *When the rack is used in the vertical direction, the speed cannot be controlled by the down side drive. Use at full speed.

Product Line

Please purchase the linear head and motor separately.

LH Linear Heads (Speed control motors)
Linear Head Product Line
(Combined motor output power: W)

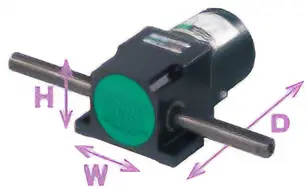

W × H × D
[mm]
Maximum Transportable Mass kg*
(Variable speed range mm/s*)
Stroke
[mm]
LH Linear Heads 2L
(6)
88 × 66.3 × 164.5 8.7
(3.2~57)
15
(1.6~28)
20
(0.7~12)
100, 200, 300, 400, 500
4L
(25)
120 × 82 × 191 27
(2.8~50)
52
(1.3~24)
70
(0.7~12)
100, 200, 300, 400, 500, 600, 700
5L-U
(60)
140 × 95 × 270.5 57
(3.1~56)
127
(1.3~22)
140
(0.6~11)
100, 200, 300, 400, 500, 600, 700
  • *For power supply frequency 60 Hz
