Features | αSTEP AZ Series Multi-Axis Driver DC Input

3 Types of Interfaces

EtherCAT drive profile, MECHATROLINK-III, and SSCNETIII/H compatible products are available.

• For more details about the Slim Type, please contact your nearest branch, sales office, or Customer Support Center.

• *SSCNETⅢ/H is a registered trademark of Mitsubishi Electric Corporation.
• *MECHATROLINK is a registered trademark of MECHATROLINK Members Association.
• *EtherCAT® is registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany.

Reduced Wiring and Cost

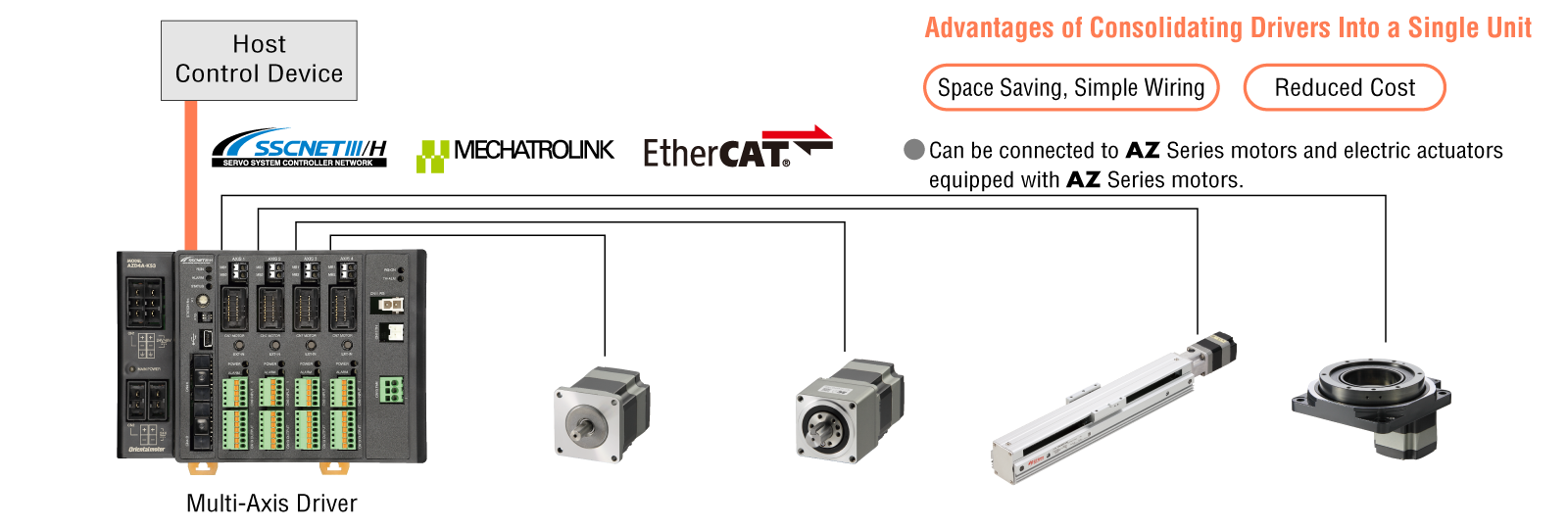

Multiple axes can be controlled with a single driver.

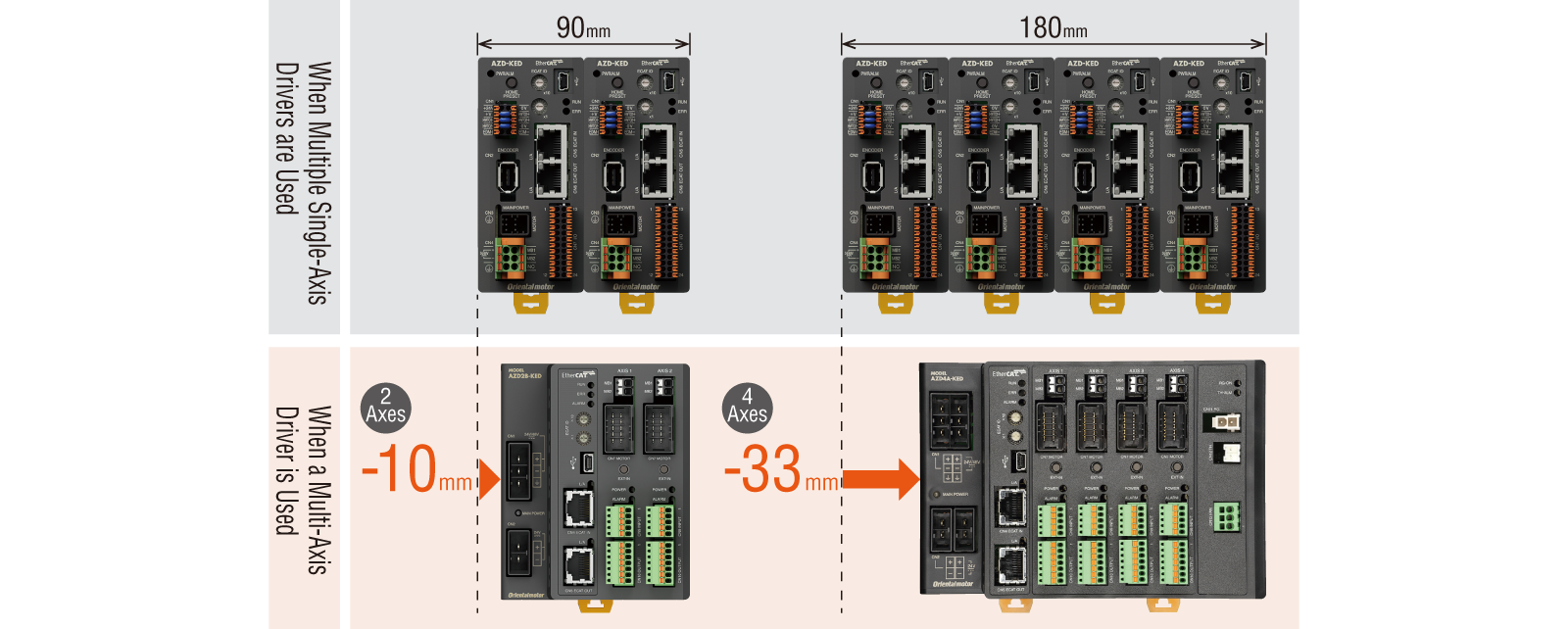

More Compact and Space Saving Compared to a Row of Single Axis Drivers (2-axis type and 4-axis type)

Rather than lining up network compatible Single Axis Drivers, installation space can be reduced.

Easy Drive From PC with Support Software MEXE02

By using the support software MEXE02, you can set and edit operation data and various parameters, as well as teach and monitor various conditions.

Click Here to Download the Support Software

Comprehensive Support From Start-up to Maintenance with a Variety of Functions

• Startup and Evaluation

  Useful functions for wiring check and test operation are provided.

  • Setting and Saving of Operation Data
  • I/O Monitoring
  • Teaching, Remote Operation
• Adjustment

  The following functions are available to help you adjust motor operation after the equipment is installed.

  • Waveform Monitoring
• Diagnosis and Maintenance

  Diagnostic and maintenance functions are available for trouble diagnosis and maintenance after operation is started.

  • Alarm Monitoring
  • Unit Information Monitor
  • Status Monitor

Click Here for Details of Support Software Functions

• Parallel Link Robot

• 6-Axis Arm Robot

• Typing Robot

• Circular Interpolation Operation

Products that can be connected to multi-axis drivers are as follows.

For more details, please contact your nearest branch, sales office, or Customer Support Center.

Motor (DC input)

Series Name	Product Image (Typical example)	Overview

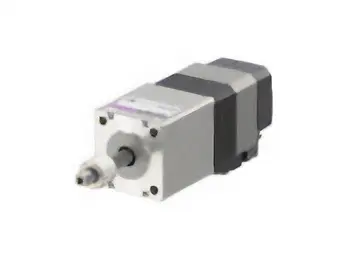

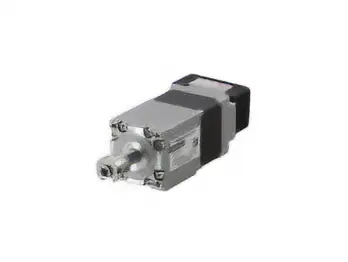

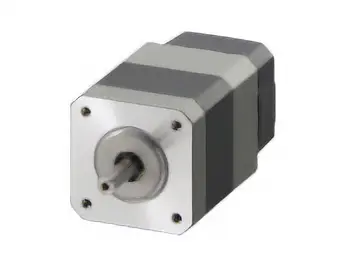

αSTEP AZ Series		The motor is equipped with an ABZO sensor. Reduces the return-to-home time, and eliminates the need for control of external sensors. There are product lines from □20 mm to □60 mm, with various geared types also available.

Electric Actuator (DC input)

These are αSTEP AZ Series equipped electric actuators.

Series Name	Product Image (Typical example)	Overview

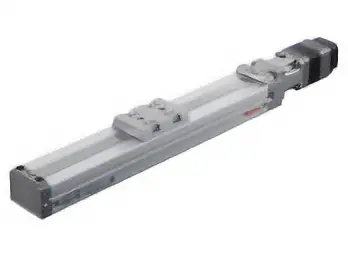

Electric Linear Slides EZS Series		2 types of linear slide sections are available: Straight type and reversed motor type. The simple dust-resistant structure made from a stainless steel sheet prevents ingress of foreign particles and reduces emission of dust.
Electric Linear Slides EZS Series For Clean Room Use		While maintaining the functionality and performance of the EZS Series, this product uses low-dust clean grease for ball screws, guides, and bearings to achieve clean room standards (ISO Standards Class 3).

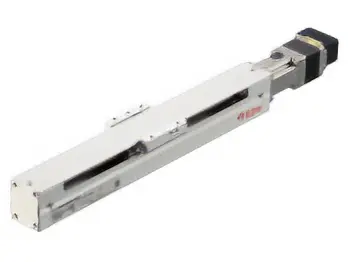

Electric Linear Slides EAS Series		2 types of linear slide sections are available: Straight type and reversed motor type.

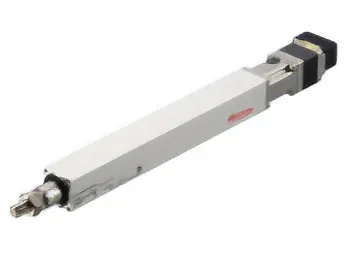

Electric Cylinders EAC Series		2 types of cylinder sections are available: Straight type and reversed motor type.
Compact Electric Cylinders DR Series		This is a ball screw mechanism product suitable for fine feeding and high precision positioning in a linear motion. More compact products with frame sizes of 20 mm and 28 mm are available. Contributes to space saving and wiring reduction. Push-motion operation also possible.
Compact Electric Cylinders DRS2 Series		This is a ball screw mechanism product suitable for fine feeding and high precision positioning in a linear motion. This is a product line with frame sizes of 42 mm and 60 mm. Contributes to space saving and wiring reduction. Push-motion operation also possible.
Rack-and-Pinion System L Series		In addition to high precision positioning, it can also transport heavy loads to a maximum of 100 kg.

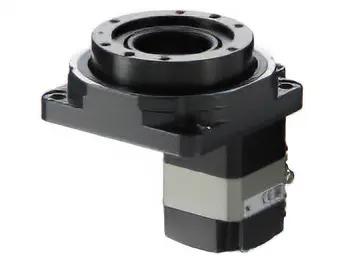

Hollow Rotary Actuators DGII Series		High power drive is possible due to the speed reduction mechanism inside the actuator.
