AC Centrifugal Blowers (Sirocco fans)

MB Series S Type

AC Centrifugal Blowers (Sirocco fans) MB Series S Type

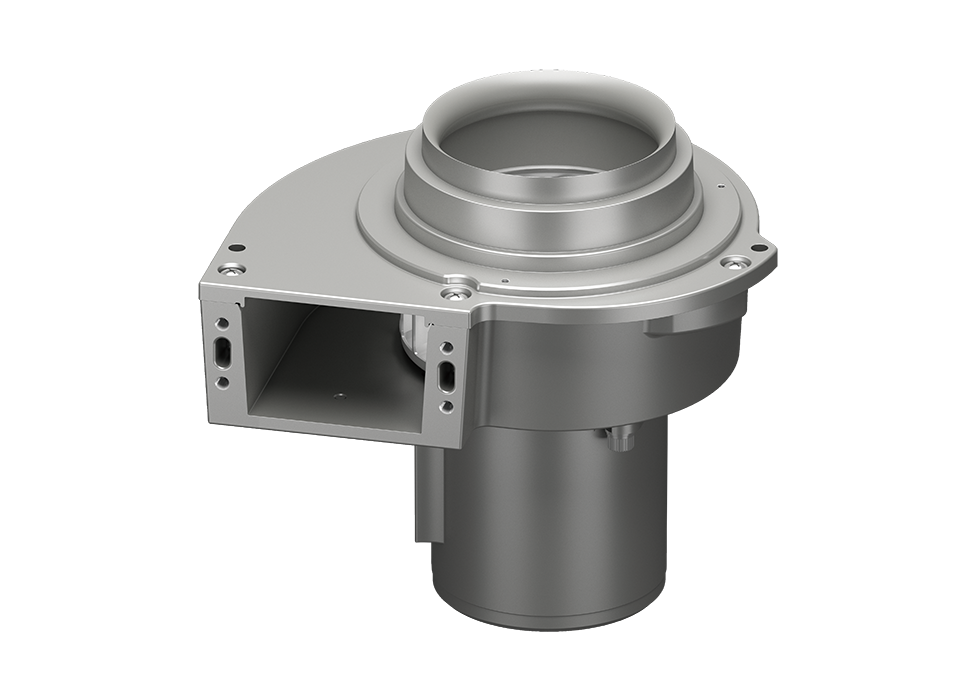

  • Strong Directional Airflow with High Static Pressure
  • Capable of High-Temperature Air Circulation
  • Easy Air Flow Adjustment and Installation
  • AC Input, Impeller Diameter φ100/φ120 mm

Features | AC Centrifugal Blower MB Series S Type

Application example

Pursuit of High Static Pressure and Good Directivity Creates a Wide Variety of Applications

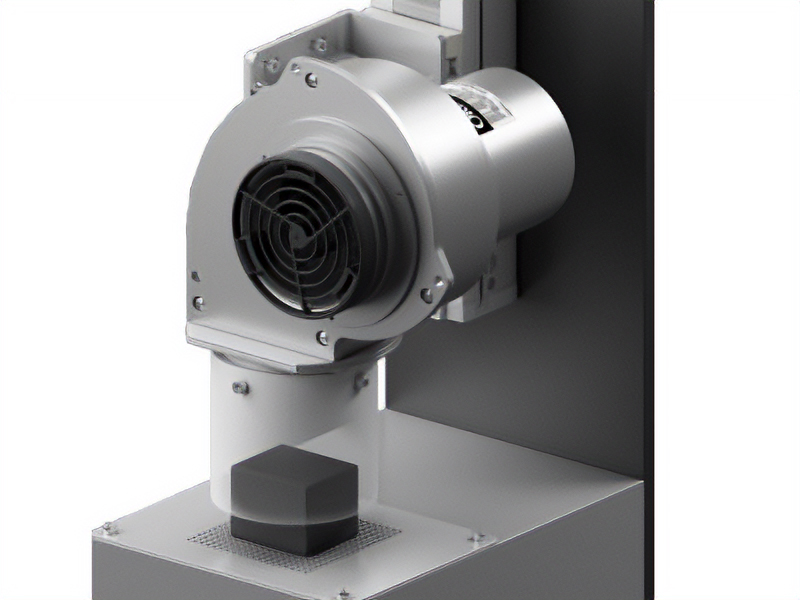

Rapidly Cool Load - Forced Cooling After Heat Processing

Forced cooling after heat processing
*A finger guard (sold separately) is installed on the intake

The MB Series S type is characterized by a faster exhaust wind speed than a standard axial flow fan.
When air-cooling a load, the faster the wind speed, the less time it takes to cool. Ideal for spot cooling during heat processing.

Example) When cooling a 300 °C steel plate (200 mm × 200 mm × 10 mm) to 100 °C

Axial Flow Fan of Equivalent Size MB Series S type impeller diameter φ120 mm
Cooling Time* 5 minutes 30 seconds 2 minutes 30 seconds
Wind Speed 6.7 m/s 19.2 m/s
  • *Operating ambient temperature is calculated at an intake air temperature of 25 °C.

If cooling time can be shortened, wait time for post-process will be reduced.
Using a centrifugal blower in the cooling system improves overall process efficiency and productivity.

Exhausting Air Through Ducts – Exhaust Inside Laboratory Equipment (Supports intake air temperatures of -10 °C to +90 °C or lower)

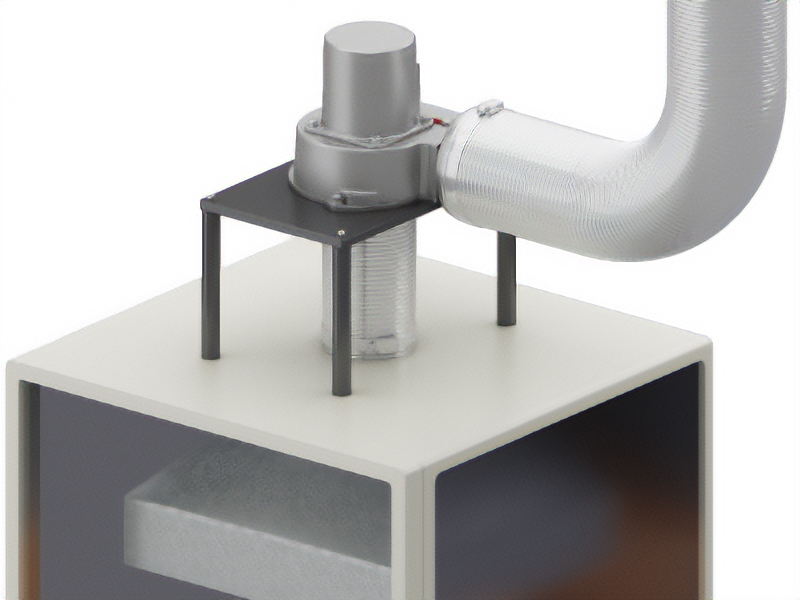

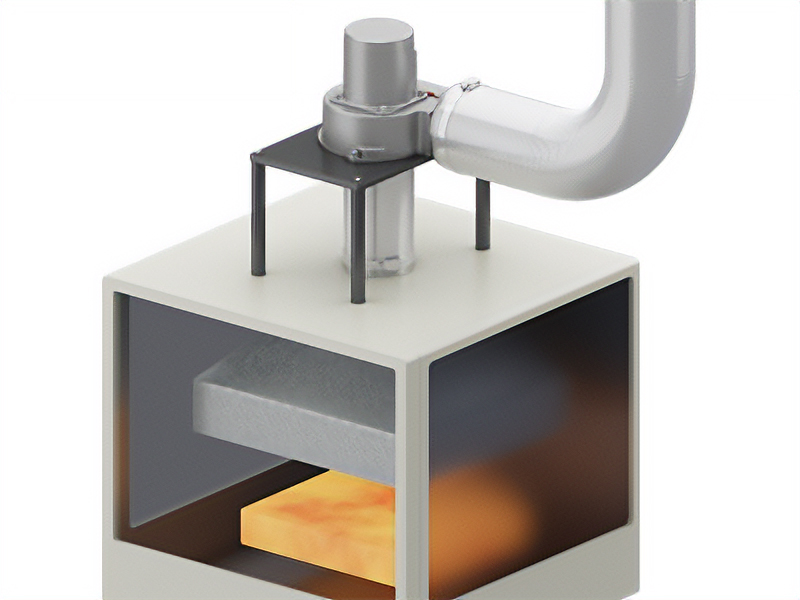

Exhaust in laboratory equipment
*A duct joint (sold separately) is attached to the exhaust outlet

The MB Series S type is ideal for duct ventilation because it is designed so that a duct can be directly attached to the intake.

Supports Intake Air Temperatures From -10 °C min. to +90 °C max.

Intake air temperatures from -10 °C min. to +90 °C max. are supported so that warm air flow from dryers and heating equipment can be expelled as exhaust.
Also, please confirm the following operating ambient temperature when blowing high temperature air.

Intake Air Temperature Operating Ambient Temperature*
-10 °C min. to +50 °C max. -10 °C~+50 °C (non-freezing)
Over +50 °C to +90 °C max. -10 °C~+40 °C (non-freezing)
  • *Cannot be used in a temperature-controlled environment at -10 °C max., such as in a freezer.
Improved Duct Installation

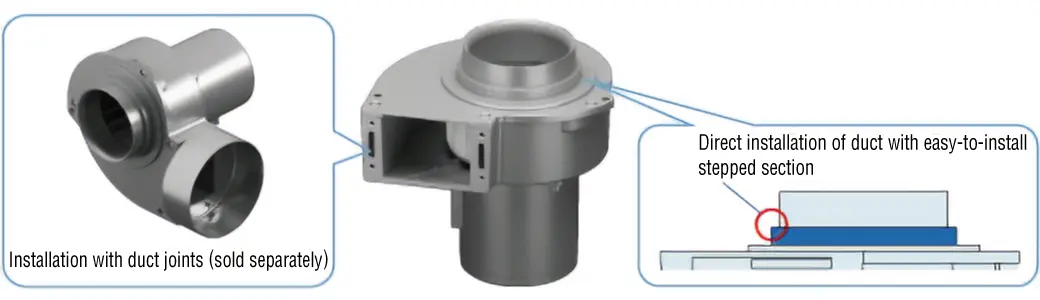

The intake is stepped to allow direct duct installation.
If you install a duct joint (sold separately), you can also attach a duct to the exhaust outlet.

Improved duct installation

Blowing Liquids and Dust - Air Blow (Coating of liquid food products)

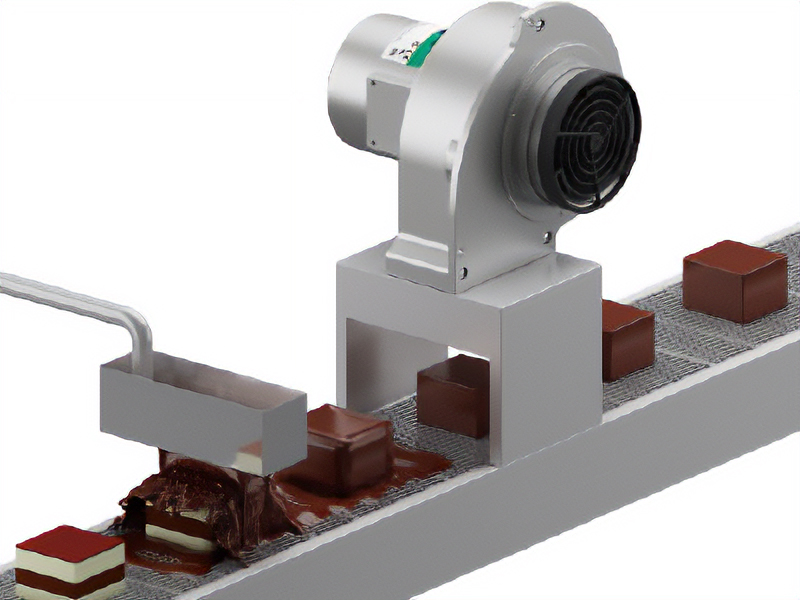

Air Blow (Coating of liquid food products)
*A finger guard (sold separately) is installed on the intake

The MB series S type is ideal for blow-off applications because it sends out a highly directional wind with a large static pressure.
Blowing with wind power means there is no need to touch the load directly when adjusting the amount of liquid or powder.
Achieves uniform blow-off while keeping the load clean.

Manually Adjusting Blow-Off Amount
Air flow adjustment damper

Manual air flow adjustment is possible by installing an air flow adjustment damper (sold separately).
You can adjust the air flow according to the load while looking at the scale. Refer to here for more details on how to adjust air flow.

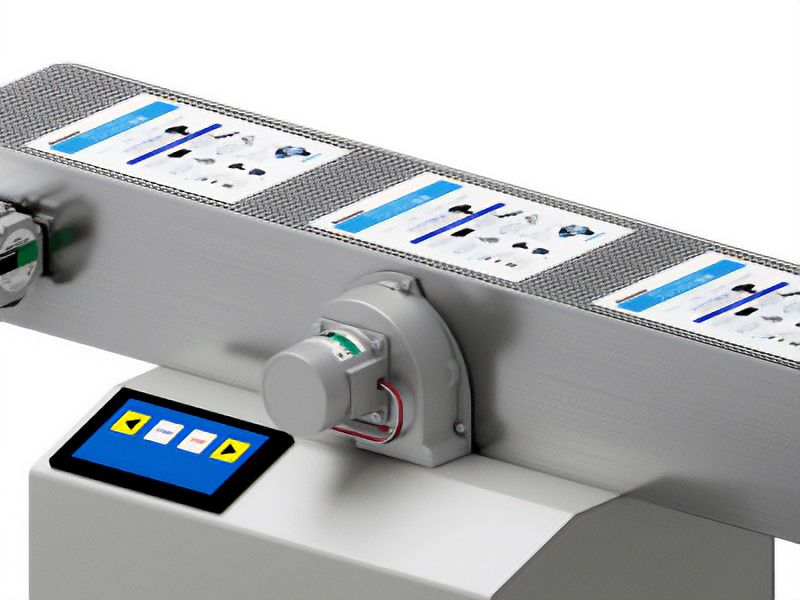

Adsorb Lightweight and Flat Loads - Suction of Printed Paper (Tidying up)

Suction of Printed Paper (Tidying up)

The MB Series S type is ideal for applications where air is sucked in with significant static pressure to adsorb the load.

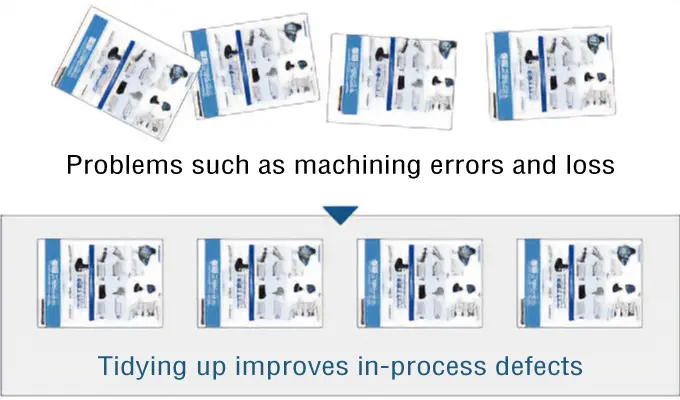

When transporting lightweight and flat loads, it prevents load scattering and position errors, and improves in-process defects such as machining errors and loss.

Tidying up via adsorption improves on in-process defects

Selectable Mounting Method/Manual Air Flow Adjustment

Use Mounting Holes and Mounting Brackets to Install According to Application

View More About Intake Side Installation
Intake Side Installation
View More About Exhaust Outlet Side Installation
Exhaust Outlet Side Installation
View More About Mounting Bracket for Exhaust Outlet
Mounting Bracket for Exhaust Outlet

The MB Series S type allows you to change the position of the exhaust outlet and the direction in which the lead wire is pulled out.

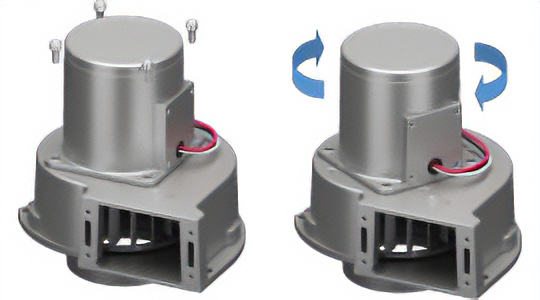

Remove motor assembly screws and rotate motor in 90˚ increments to adjust its orientation.

Changing exhaust outlet position

Intake Side Installation (Through hole)

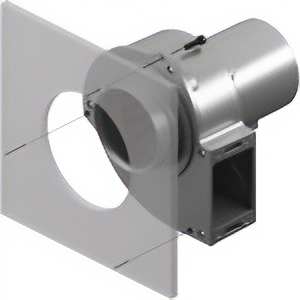

The through hole on the body can be used for direct installation from the centrifugal blower side.

Intake Side Installation (Through hole)
Exhaust in laboratory equipment
Suction of Printed Paper (Tidying up)

Exhaust Outlet Side Installation (Tapped hole)

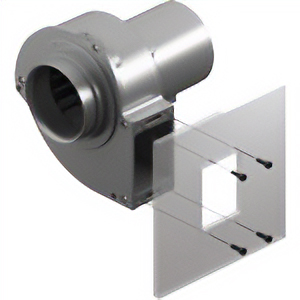

The tapped holes on the body can be used for direct installation from the equipment side.

Exhaust Outlet Side Installation (Tapped hole)
Blowing Batter Liquid off Fried Foods

Mounting Pedestal

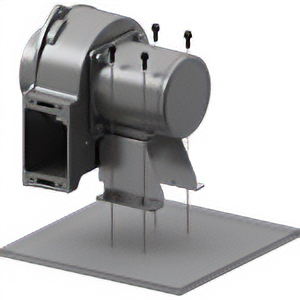

By assembling the mounting pedestal (sold separately) to the centrifugal blower, it can be mounted vertically to the ground.

Mounting pedestal (Assembled image)
Mounting Pedestal

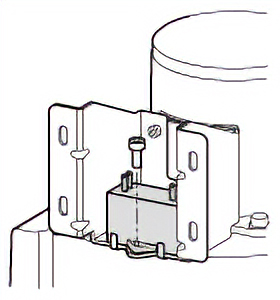

· Capacitor can be retracted into the pedestal
Storing the capacitor

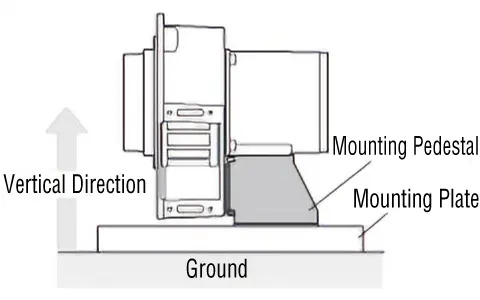

· Mount it vertical to the ground
Vertically mounted

Mounting Bracket for Exhaust Outlets (Only for impeller diameter φ120 mm)

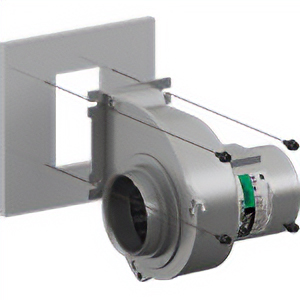

By attaching the mounting brackets for exhaust outlets (sold separately) to the centrifugal blower, it can be mounted from the blower side.

Mounting bracket for exhaust outlet (Assembled image)
Mounting bracket for exhaust outlet

Air Flow Can be Adjusted Easily, Manually, and on the Spot

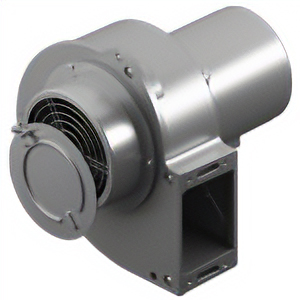

Manual air flow adjustment is possible by installing an air flow adjustment damper (sold separately).

Air flow adjustment damper (assembled image)
Air flow adjustment damper

Adjust the opening area of the intake to change the air flow. Adjustment can be performed manually.

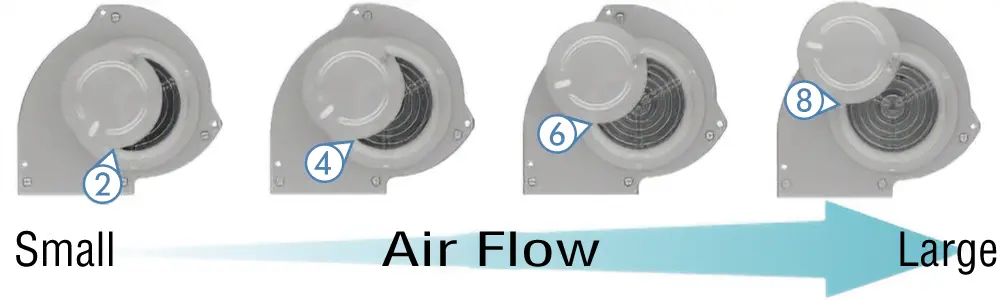

Relationship between scale and air flow

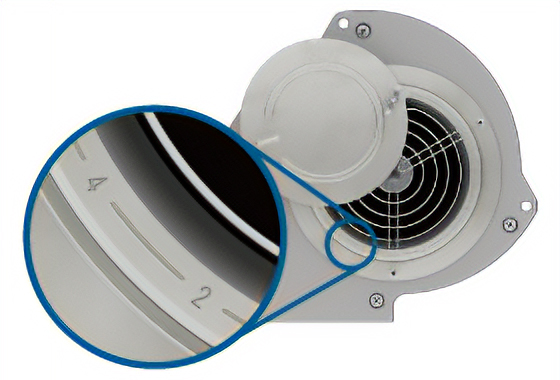

The damper's body is marked with a scale

A scale is marked on the body of the air flow adjustment damper.
A graph (reference value) of changes in scale and air flow is posted on the product details page of the air flow adjustment damper.
From the "Filter by Specs" page, select the name of the product you wish to check the specifications of from the following table.

Structure and features of centrifugal blower

The Centrifugal Blower is a Cooling Fan That Sends Out a Directed Wind With High Static Pressure

Structure of Centrifugal Blowers (Sirocco fans)

Impellers (forward-facing blades) are arranged in a cylindrical shape inside the centrifugal blower.

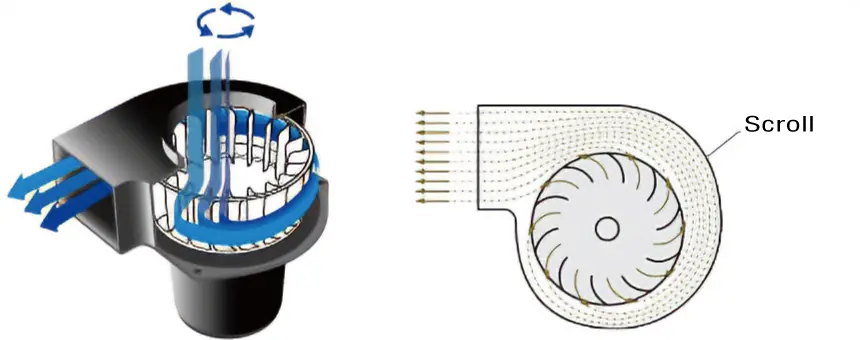

The centrifugal force created by rotating the impeller with a motor generates a swirling flow almost perpendicular to the axis of rotation. The swirling flow is rectified in 1 direction by a casing called a scroll, increasing the pressure. This restricts the exhaust outlet and concentrates the wind to be sent out in a specific direction.

Centrifugal Blower Structure

Differences From Axial Flow Fans

We compare the features of the centrifugal blower with axial flow fans that are used to cool and ventilate the inside of equipment.

Product Line Axial Flow Fans Centrifugal Blowers (Sirocco fans)
External View
AC axial flow fan EMU Series
AC Centrifugal Blower MB Series S Type
Features Large capacity air flow High static pressure and highly directional air flow
Characteristics
Air Flow
Large
Static Pressure
Small (compared to centrifugal blower)
Air Flow
Small
Static Pressure
Large
Application
  • Cools the entire piece of equipment
  • High-density packaging equipment cooling (large axial flow fan)
  • Localized cooling
  • High-density packaging equipment cooling
  • Air flow and exhaust using a duct
  • Adsorption via air

As the characteristics of each offer differing advantage, usage according to application is the crucial point.
Refer to here for more about the features of axial flow fans.

Image of Wind Produced by a Centrifugal Blower

In the video below, you can visually grasp the features of wind produced by the centrifugal blower. (Playback time 0:27 for centrifugal blower)

Static pressure and directivity are indicators that are difficult to imagine with numerical values alone.
Our showrooms allow you to experience the wind force using an actual device. Please consider making use of this service.

Product Line

MB Series S Type

Size Power Supply Voltage Maximum Air Flow [m3/min] Maximum Static Pressure [Pa]
Impeller Diameter φ100 mm
Three-Phase 200 VAC, Three-Phase 220/230 VAC
Single-Phase 100 VAC Single-Phase 110/115 VAC
Single-Phase 200 VAC Single-Phase 220/230 VAC
2.5
320
Impeller Diameter φ120 mm
5.2
450

Series List of Centrifugal Blowers (Sirocco fans)

For products other than impeller diameter φ100 mm and φ120 mm, please select the following series. DC input type and variable speed type are also available.

Series Power Supply Voltage Impeller Diameter
φ50 mm φ60 mm φ80 mm φ100 mm φ120 mm φ160 mm
MB Series S Type AC - - - -
MB Series AC
MB Series Variable Speed Type Fans AC - - - - -
MBD Series DC - - -
