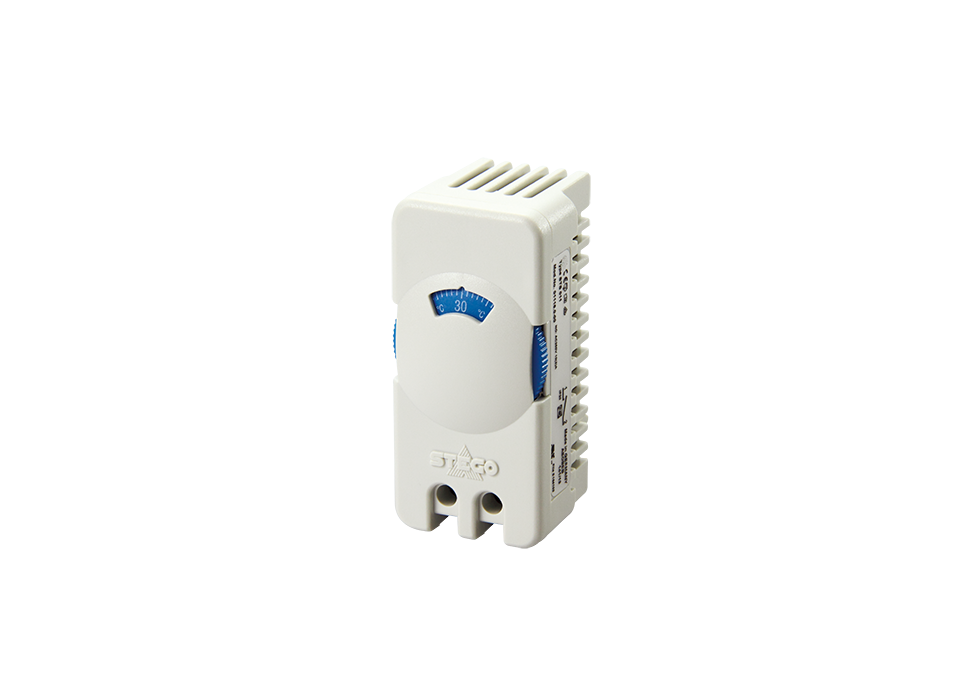

Thermostat for Fan
AM2-XA1
- Automatically Control the Operation and Stopping of the Fan
- Contributes to Power Consumption Reduction
- 33 mm (W), 42.5 mm (D), 70 mm (H)
Features | Thermostat for Fan AM2-XA1
It is a switch that turns the contact ON when a set temperature is reached.
When used with a fan, the fan can be controlled ON/OFF according to the setting temperature, thus reducing the power consumption of the fan.
Energy Saving, Noise Reduction Operation During Fan Drive
Fan power consumption can be reduced by operating the fan only when necessary.
It also minimizes the noise emitted by the fan.
Application Example
ON-OFF Control for a Single Cooling Fan
When the inside of the equipment gets hot and reaches the setting temperature, the cooling fans are driven automatically, and it has cooled down, they automatically stop.
ON-OFF Control for Multiple Cooling Fans
For example, the AC Axial Flow Fan MU Series can drive up to 9 units at once. When the air flow of a single unit is not enough, multiple units can be controlled by a single thermostat.
Usage Example: 6 MU1238 type units
Thermostat | Number of Units | Input (W) | Noise Level (dB) |
---|---|---|---|
ON | 6 | 84 | 51 |
OFF | - | 0 | 0 |
Operation Unit Number Switching Control
Two AM2-XA1 thermostat for fan can be used to switch operations for multiple fans. This allows the air flow to be changed between high and low temperatures, contributing to energy conservation and noise reduction.
- Example
- Three MU1238 type AC axial flow fans each with high temperature (40 °C) and low temperature (25 °C) settings
Power consumption halved/Noise reduced by 3 dB
Setting Temperature | Number of Units | Input (W) | Noise Level (dB) | |
---|---|---|---|---|
High temperature | 40 °C | 6 | 84 | 51 |
Low temperature | 25 °C | 3 | 42 | 48 |
100 V 50 Hz
- *These values are for use in the upper and lower rows.
Applicable Product
AC Input
DC Input
Details
- *For details on applicable cooling fans and the number of units that can be used, please refer to the product details page.
