Rack-and-Pinion System

L Series

AC Speed Control Motors
Equipped with DSC Series

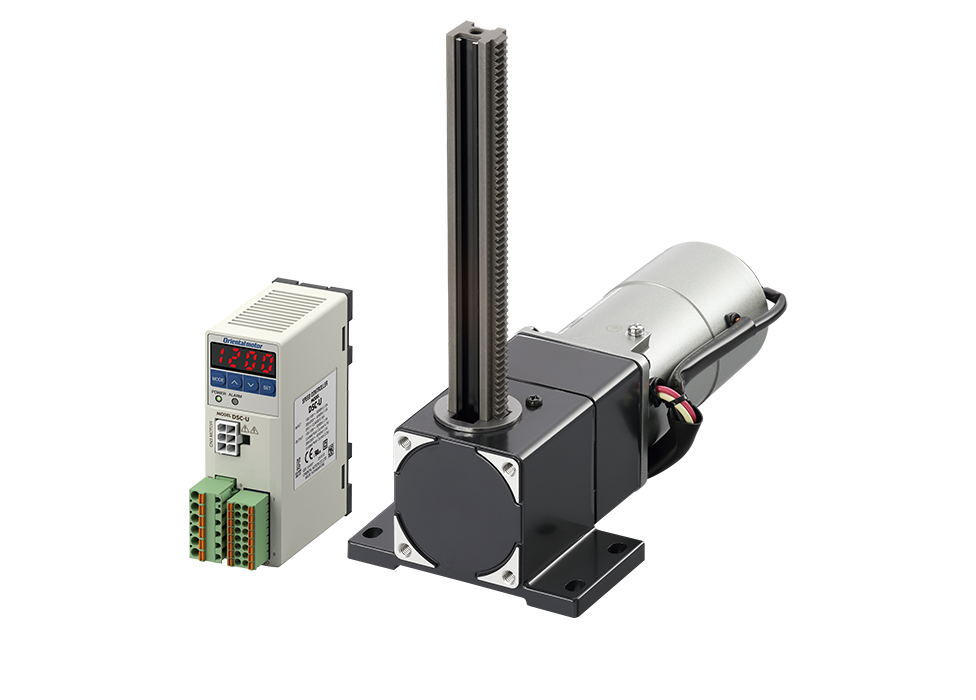

Rack-and-Pinion System L Series AC Speed Control Motors Equipped with DSC Series
  • A Structure That Tntegrates a Rack-and-Pinion Mechanism and AC Speed Control Motor
  • Equipped with AC Speed Control Motor
  • Stroke 100 to 1000 mm
  • Maximum Transportable Mass 67 kg

Features | Rack-and-Pinion System L Series AC Speed Control Motor DSC Series Equipped

Key Features

Linear Motion Mechanism Can be Easily Constructed

Easy Construction of Compact Linear Motion Mechanism

The rack-and-pinion system can easily convert the rotation of the motor into linear motion.
Although the linear motion mechanism part is compact in design, it can transport a large load due to its high strength processing.

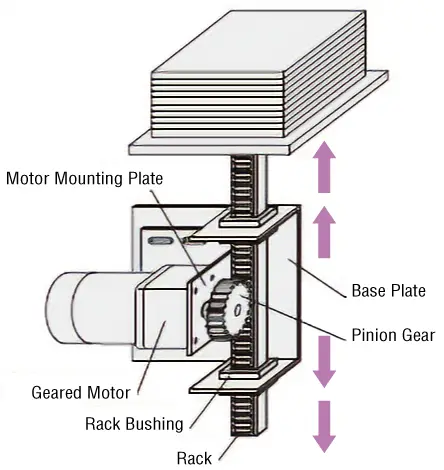

Structure of Rack-and-Pinion System
Structure of Rack-and-Pinion System

Movement of Rack-and-Pinion System

The gear (deceleration part) receives the motor of the pinion shaft, and further transmits it from the pinion gear to the rack to convert it into linear motion.

Reduces Startup Time From Design

By using Oriental Motor's rack-and-pinion system, the number of components used can be reduced, significantly reducing the man-hours required for design and assembly compared to producing in-house.

Comparison of the Number of Components

  • [If Build In-House]
    If Build In-House
  • [For Rack-and-Pinion System]
    Rack-and-Pinion System
Equipment Startup Times Comparison
If Build In-House

Value Raise/Lower Speed Control

  • Vertical Operation From 58,800 JPY

    Transportable mass of 6.6 kg~67 kg available, combining the simple structure rack-and-pinion system with AC speed control motors. Reasonable prices for transporting heavy loads.

    • Total amount for rack and pinion motor and speed controller.

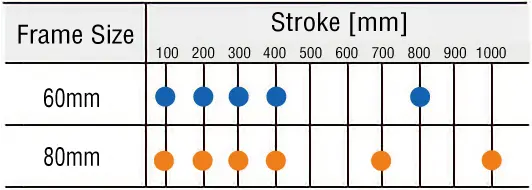

  • Maximum Stroke 1000 mm

    A variety of strokes are available to suit your equipment.

    Maximum Stroke 1000 mm

3 Variable Speed Ranges Selectable According to Usage

Equipped with AC Speed Control Motor DSC Series that can control speed for vertical operation.
Choose from 3 variable speed ranges for each frame size.

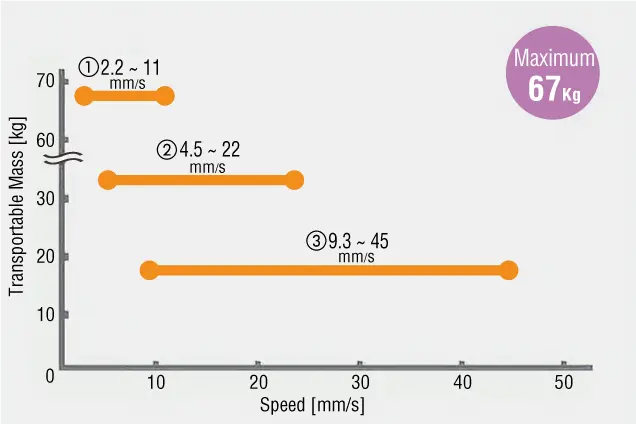

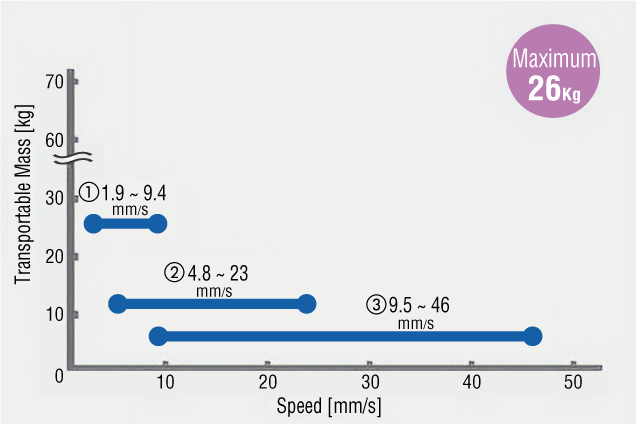

Transportable Mass and Variable Speed Range (For 60 Hz)

  • Frame Size 60 mm
    Transportable mass and variable speed range (For frame size 60 mm))
  • Frame Size 80 mm
    Transportable mass and variable speed range (for 80 mm frame size)

Click here for sensor setting to detect rack stop position

Sensor is required for setting the rack stop position.
2 types are available: "Photomicrosensor Set" and "Limit Switch Set" that enable back-and-forth motion with easy installation.

Advantages of DSC Series equipped

Compact Speed Controller Provides Comfortable Speed Control of Linear Motion Mechanism

Visualization of Linear Motion With Digital Display

Controller body allows monitoring of rack speed, alarm, warnings, and I/O status, as well as various settings and controls.

Speed and Other Settings are Shown and Can be Entered Directly

Watch the "Test Operation" video
(For combined motor and gearhead)

[Display of rack speed]
The rack speed can be displayed by setting the gear ratio for each product in the "gear ratio parameter" of the speed controller.

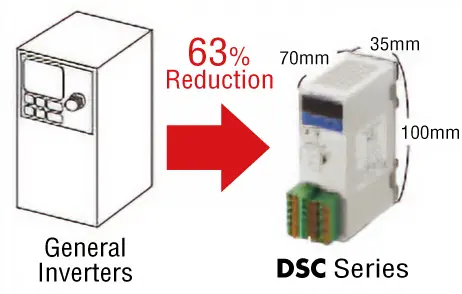

  • Compact Motor Controller

    The volume is 63 % smaller than a general inverter.

    Compact Motor Controller

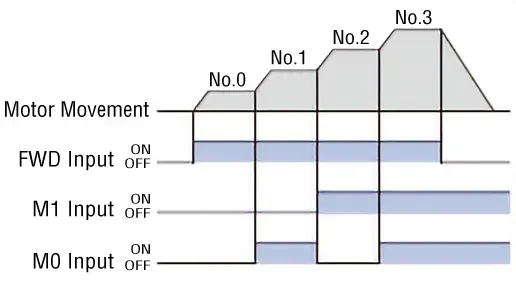

  • Speed Control (4 speeds)

    4 units of operation data can be set, and can be switched with I/O during operation.

    Watch video (For combined motor and gearhead)

    Speed Control (4 speeds)

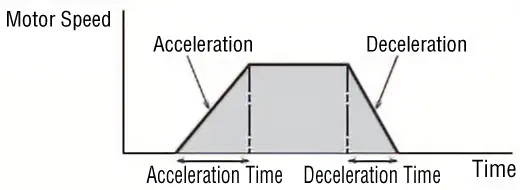

  • Acceleration/Deceleration

    Makes the motor movement at start/stop smoother. It is possible to set acceleration/deceleration differently for each of the 4-speed data units.

    Watch video (For combined motor and gearhead)

    Acceleration/Deceleration

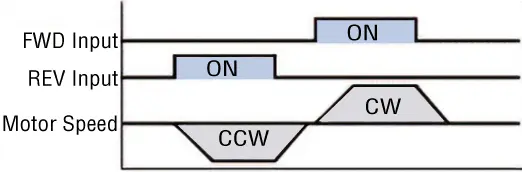

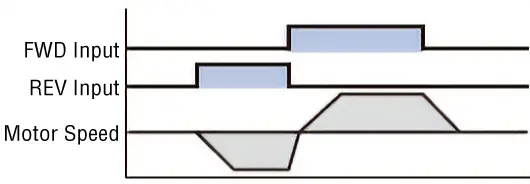

  • Bi-Directional Operation

    Performs the operation according to the command for rotation direction.

    bi-directional operation
                            </figure>
                          </li>
                          <li>
                            <h4 class=Instantaneous Bi-Directional Operation

    Instantaneously switches the rotation direction of the motor while operating.
    (Short cycle change conditions can be created)

    Repetitive Operating Cycle

    Instantaneous Bi-Directional Operation

    Repetitive Operating Cycle

    When the motor is operated repeatedly in short cycles, use the cycles below as a reference, and ensure that the motor's external temperature is at 90° C or less.

    Instantaneous Stop 6~40 W When operation and instantaneous stops are repeated
    2 seconds min., operating duty 50 % max. (Example: 1 second operating, 1 second stopped)
    60 W, 90 W When operation and instantaneous stops are repeated
    4 seconds min., operating duty 50 % max. (Example: 2 second operating, 2 second stopped)
    Instantaneous Bi-Directional Operation 6~40 W When rotation direction is repeatedly switched during operation
    Switch once every 2 seconds min.
    60 W, 90 W When rotation direction is repeatedly switched during operation
    Switch once every 4 seconds min.
    • *On the electromagnetic brake type, continuous operation conditions occur when the "deceleration control" parameter is set to ON.
      Check "Common Specifications - Permissible Continuous Operation Time While Deceleration Control is ON" on each product details page of electromagnetic brake type.

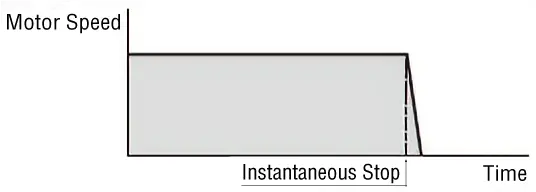

  • Instantaneous Stop

    Stops the operating motor instantaneously.
    (Short cycle run/stop conditions can be created)

    Watch video (For combined motor and gearhead)

    Instantaneous Stop
  • External Speed Setting Input is Possible

    Watch video (For combined motor and gearhead)

    External Speed Setting Input is Possible
  • Multi-Motor Control (20 units max.)

    A single external speed potentiometer can operate a max. of 20 units in parallel.
    Fine adjustment of each motor's speed can be performed by changing the controller's parameters.

    Multi-Motor Control (20 Units Max.))
  • Speed Range Control

    It is possible to limit the speed setting in advance with the speed range.

    Speed Range Control

Applications

The rack-and-pinion system, which can be applied to a variety of applications, is a user-friendly product that can be selected as if it were a component.

Horizontal operation, vertical operation

By changing the mounting surface, it is possible to switch usage to either horizontal or vertical operation.

  • vertical operation

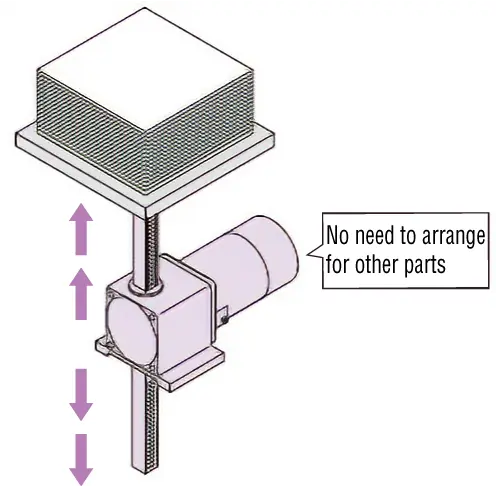

    Vertical operation is also easy. With an electromagnetic brake, fall prevention and load holding is allowed.

  • Load Fastening and Securing Racks

    Using the screw holes at the end of rack simplifies the fastening of loads and rack fixing.

  • High Thrust

    High thrust can also be used to lift the press or table as is.

  • Vertical Opening and Closing of Heavy Doors, Etc.

    The open/close speed can be freely adjusted, even where a heavy door is opened or closed vertically.

Related Products

View More About the L Series αSTEP AZ Series Equipped
L Series αSTEP AZ Series Equipped

L Series
αSTEP AZ Series Equipped

This product integrates a rack-and-pinion mechanism and stepper motor. Highly accurate multi-point positioning can be easily achieved due to the battery-free AZ Series with ABZO sensor equipped.

Narrow down Products

Narrow down Products

Download

Catalog

View More about L-137
L-137

L-137

Rack-and-pinion system L Series AC speed control motor DSC Series equipped

PDF

Operating Manual

Lineup and Related Information
