Hollow Rotary Actuators

DH Series

Hollow Rotary Actuators DH Series
  • Integrated Hollow Table and Stepper Motor
  • Frame Size 28/42 mm
  • Diameter of Hollow Section φ5.2/10 mm

Features | Hollow Rotary Actuator DH Series

Hollowness Simplifies Piping and Wiring at the End of the Equipment

This actuator is a 5-phase stepper motor with a hollow flange. Air piping, wiring, and rays are passed through the hollow section, contributing to a simplified design, smaller size, and lighter weight at the end of the equipment.

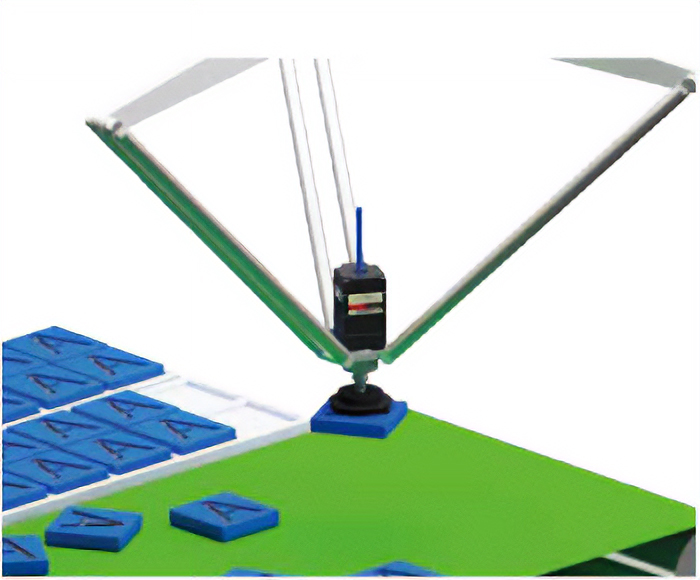

  • DH Series Application Parallel Link Robot
    Parallel Link Robot
    θ Axis of Adsorber

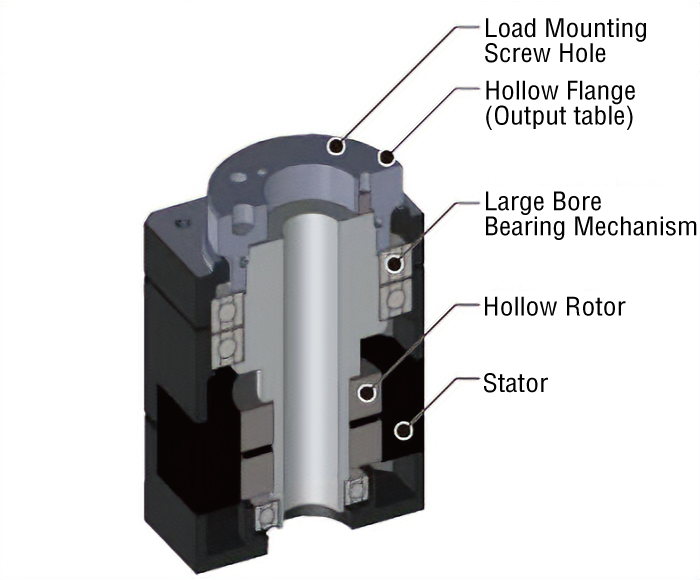

  • DH Series Structure
    Product Name Frame Size Diameter of Hollow Section Mass
    DHM28PAK2 28 mm φ5.2 mm 0.17 kg
    DHM42PAK 42 mm φ10 mm 0.47 kg

Flange Mount Contributes to the Reduction of Parts Around Moving Parts

The load can be directly mounted to the hollow flange. This contributes to reducing the number of parts around moving parts.

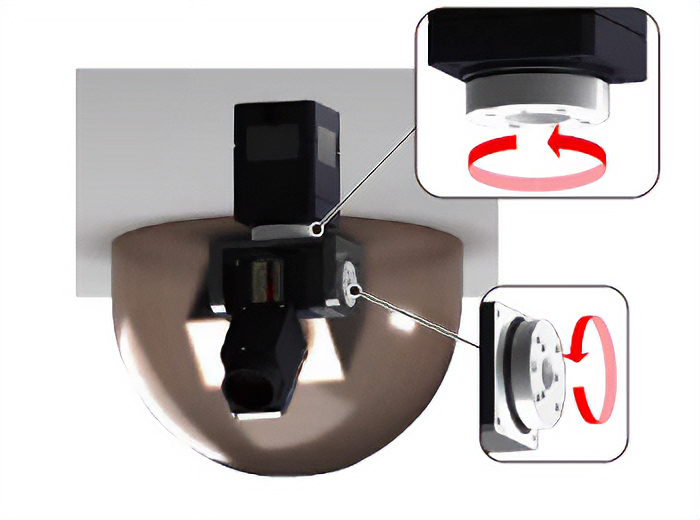

  • DH Series Application Rotational Axis of Security Cameras
    Rotational Axis of Security Cameras

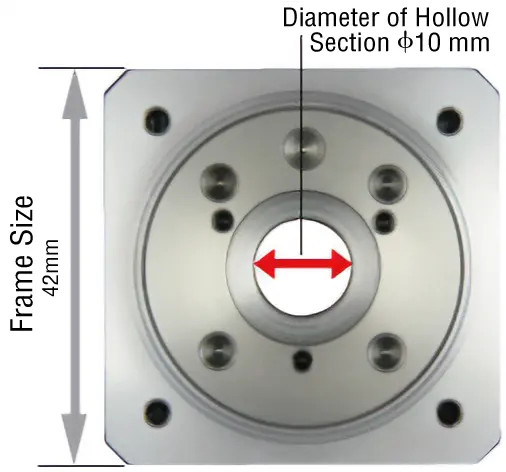

  • DH Series Flange Section
    Example: Using DHM42PAK

Some of the conventional parts have been eliminated, so the time required for equipment design and product selection is shortened.
Furthermore, the number of man-hours required for assembly and the adjustment of installation accuracy can be reduced, contributing to higher productivity.

PKP Series Adsorber
DH Series Adsorber

Advantages of Using the Equipment

  • Reduction of Design Time
  • Lower Parts Cost
  • Reduction of Assembly Man-Hours
  • Reduction of Accuracy Adjustment Time
  • Reduction of Maintenance Time

Highly Accurate Positioning

Equipped with a 5-phase stepper motor, it can perform highly accurate positioning and fine operations stably and repeatedly. Microstep drive and smooth drive function in combination with the CVD driver enable smooth operation with low speed vibration. The hollow flange does not use transmission mechanisms such as couplings or belts, so accuracy is not affected by component rigidity or combination errors.

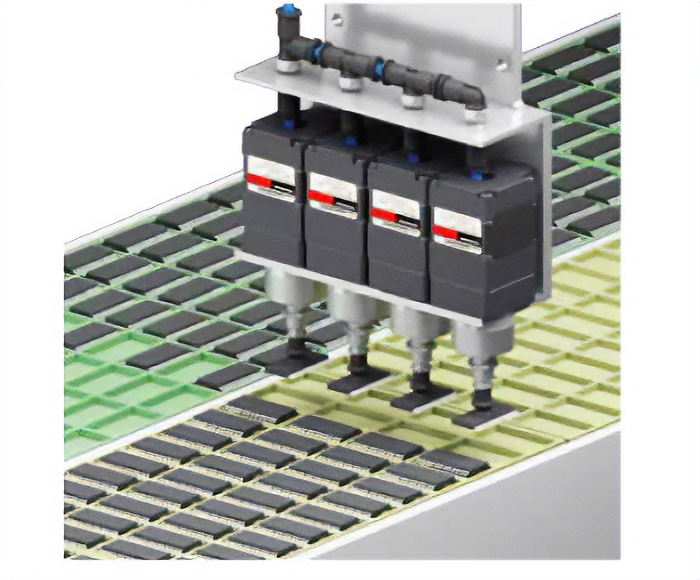

  • DH Series Application Example Parts Mount
    Parts Mounter
    θ-Axis of Parallel Adsorber

    Advantages of Using the Equipment

    • Highly Accurate Parts Alignment
    • Lighter Adsorber Unit
    • Smaller Suction Unit Thanks to Parallel Arrangement

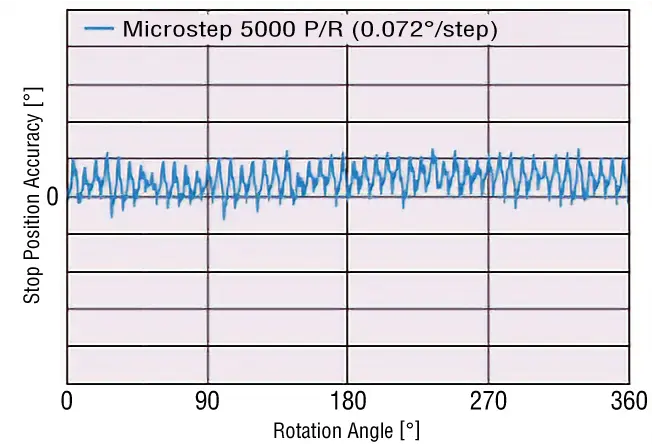

  • DH Series Microstep
    Product Name Stop Position Accuracy Repetitive Positioning Accuracy
    DHM28PAK2 ±0.33˚ ±0.15˚
    DHM42PAK ±0.11˚ ±0.05˚

Driver Features

Product Line

The actuator, driver, and connection cable can be purchased individually.

Actuator

Product Name Frame Size Diameter of Hollow Section Stop Position Accuracy Repetitive Positioning Accuracy Maximum Holding Torque
DHM28PAK2 28 mm φ5.2 mm ±0.33˚ ±0.15˚ 0.029 N·m
DHM42PAK 42 mm φ10 mm ±0.11˚ ±0.05˚ 0.175 N·m

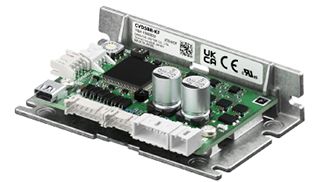

Driver

Driver Type Power Supply Input
DH Series Variation Driver Pulse input 24 VDC
RS-485 Communication

Connection Cables/Flexible Connection Cables

Frame Size 28 mm

  • Use flexible connection cables for applications where cables are bent.
  • A "driver side extension cable" is also available to add to the connection cable.
Length
[m]
DH Series Connector Type Connection Cable 0.5~10

Frame Size 42 mm

The connector is attached to the driver side.

  • Use flexible connection cables for applications where cables are bent.
  • An "extension connection cable without terminal treatment" for use between the motor and driver is also available.
Length
[m]
DH Series  Lead Wire Type Connection Cable 0.5~1

Note

Keep a maximum distance of 10 m for the wiring between the motor and the driver.
