Servo Motors

AZX Series

Equipped with Built-in Battery-Free Absolute Encoder

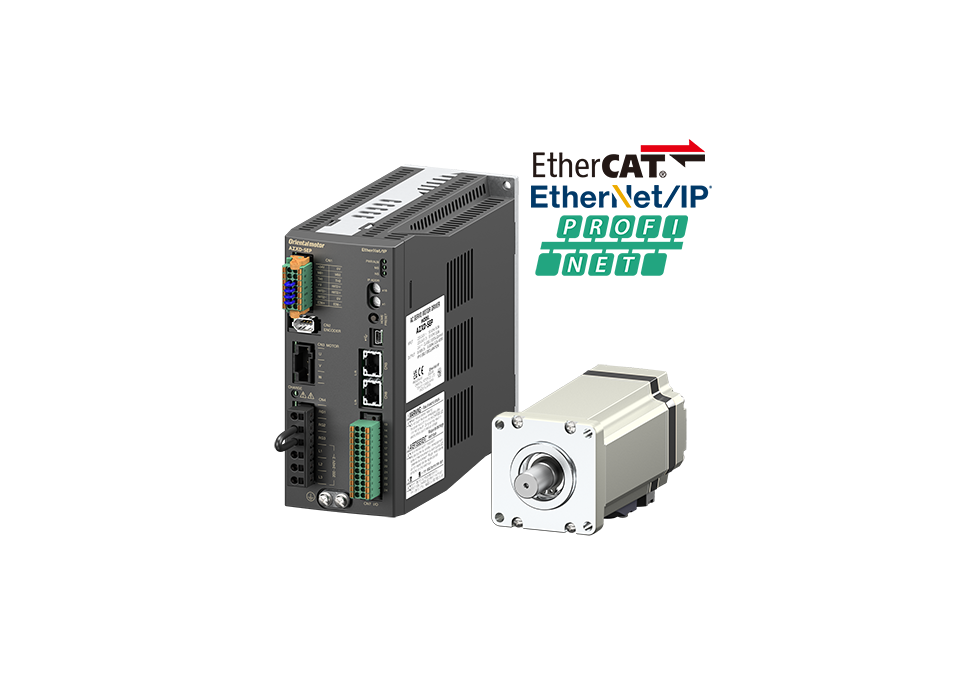

Servo Motors AZX Series Equipped with Built-in Battery-Free Absolute Encoder
  • Equipped with Built-in Battery-Free Absolute Encoder
  • EtherCAT, EtherNet/IP, PROFINET Compatible
  • 400/600 W
  • Geared Type is also Available

Features | Servo Motor AZX Series

Battery-Free Absolute Encoder Equipped Servo Motor

The AZX Series is equipped with the same battery-free mechanical absolute encoder (ABZO Sensor) as the AZ Series.
This servo motor is specialized for positioning and continuous operation.

ABZO + AZX
  • Mechanical-Type Sensor
    Retains positioning information even when power is not supplied
  • Multi-Rotation Absolute Encoder
    Absolute position detection is possible with ±900 revolutions (1800 revolutions) of the motor shaft from the reference home position
  • No External Sensors Required

    As it is an absolute system, home sensors or limit sensors are not required.

    Advantages

    • Improved High-Speed Return-To-Home + Return-To-Home Accuracy
    • Reduced Cost
    • Simple Wiring
    • Not Affected by External Sensor Malfunction
  • Battery-Free

    Mechanical sensors do not require batteries.
    Positioning information is managed mechanically by the ABZO Sensor.

    Advantages

    • No need to replace batteries
    • Unlimited Driver Installation Possibilities
    • Safe for Overseas Shipping

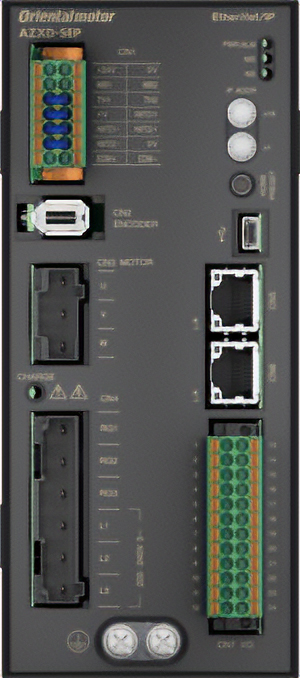

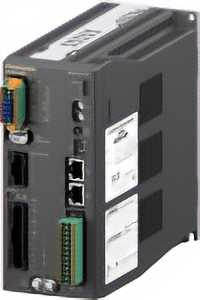

Network Compatible Driver

The driver is compatible with EtherCAT and EtherNet/IP.
A single communication cable is used to connect the driver to the host control device, thus saving wiring.

azx-EtherNet/IP System Configuration Diagram

Simplifying the Main Program via Sequence Function*

AZX Series positioning operations come with a variety of sequence functions, such as a timer setting for linked operation and during operations, conditional branching, and loop counting.
It can be set up using the support software MEXE02, which simplifies the sequence program of the host controller.

  • *EtherCAT compatible driver is not applicable.
chart
  • Positioning Operation Data Setting Value (Maximum 256)
  • General-Purpose I/O Signal Counts (Input 6, output 6)
  • Communication I/O Signal Counts (Input 16, output 16)

Achieves High Torque in the High Speed Range

The AZX Series achieves high torque in the high speed range.
It is suitable for positioning applications with a large amount of travel (Example: ball screw driving).

  • Standard Type
    Characteristic_standard
  • PS Geared Type
    Characteristic_psgeard
  • *This is a comparison of the speed - torque characteristics of the AZX Series and AZ Series.
    The AZX Series offers superior torque in the high speed range, the AZ Series is better in the low speed range.

The Basic Operations are the Same as the AZ Series

The basic operation method for the AZX Series is the same as the AZ Series.
The AZX Series and the AZ Series can be used together in the same equipment without the hassle associated with changes in operability.

The Basic Operations are the Same as the AZ Series
AZX Series
wiring Signal system wiring
Setting Switch and parameter functions, setting method (MEXE02 used)
Control Command ID number when controlling over a network
Operation Functions Built-in positioning operation function, etc. in the driver

Product Line

Motors, drivers, and cables must be ordered individually.

Motor

Type Rated Output Power
[W]
Frame Size
[mm]
Gear Ratio Rated Torque
[N・m]
Maximum Instantaneous Torque
[N・m]
Backlash
[arcmin]
Electromagnetic Brake
Equipped Not Equipped
Standard
Standard
400 60 - 1.27 3.82 -
600 85 1.91 Single-Phase: 3.82
Three-Phase: 7.16
PS Geared
PS Geared
400 90 5 5.72 17.1 15
10 11.4 34.3
25 25.7 77.2
600 90 5 8.6 Single-Phase: 17.2
Three-Phase: 32.2
120 10 18.1 Single-Phase: 36.3
Three-Phase: 68
25 43.1 Single-Phase: 86.2
Three-Phase: 162

Driver

Driver Type Power Supply Input
[V]
Driver EtherCAT compatible
EtherNet/IP compatible
PROFINET compatible
Single-Phase/Three-Phase 200-240 VAC
  • *EtherCAT compatible drivers have passed the official EtherCAT conformance test.
  • *EtherCAT® is registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany.
  • *EtherNet/IP™ is a trademark of ODVA.
  • *PROFINET is a trademark or registered trademark of PROFIBUS Nutzerorganisation e.V. (PNO).

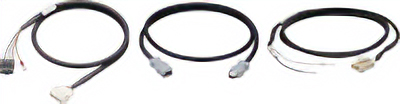

Connection Cable Sets/Flexible Connection Cable Sets

  • The motor cable, encoder cable, and electromagnetic brake cable coming from the motor cannot be connected directly to the driver.
  • Use flexible connection cables in applications where the cable is bent.
Length
[m]
Connection Cable Sets/Flexible Connection Cable Sets 1~20
