AC Speed Control Motor

SCM540UAM-60

Print Product Information All at once
SCM540UAM-60

Combi geared motor
Product Classification Product Name List Price Shipping Date
Combi geared motor SCM540UAM-60 Rs. 25,533 Product to be Discontinued
(30.1.2026 order deadline)
  • *Please contact us regarding purchasing of product.
  • *Product will be discontinued on 31.3.2026. Please place your order before the order deadline.

Included

  • Motor: None
    Gearhead: Mounting Screws, Parallel Key

Specifications

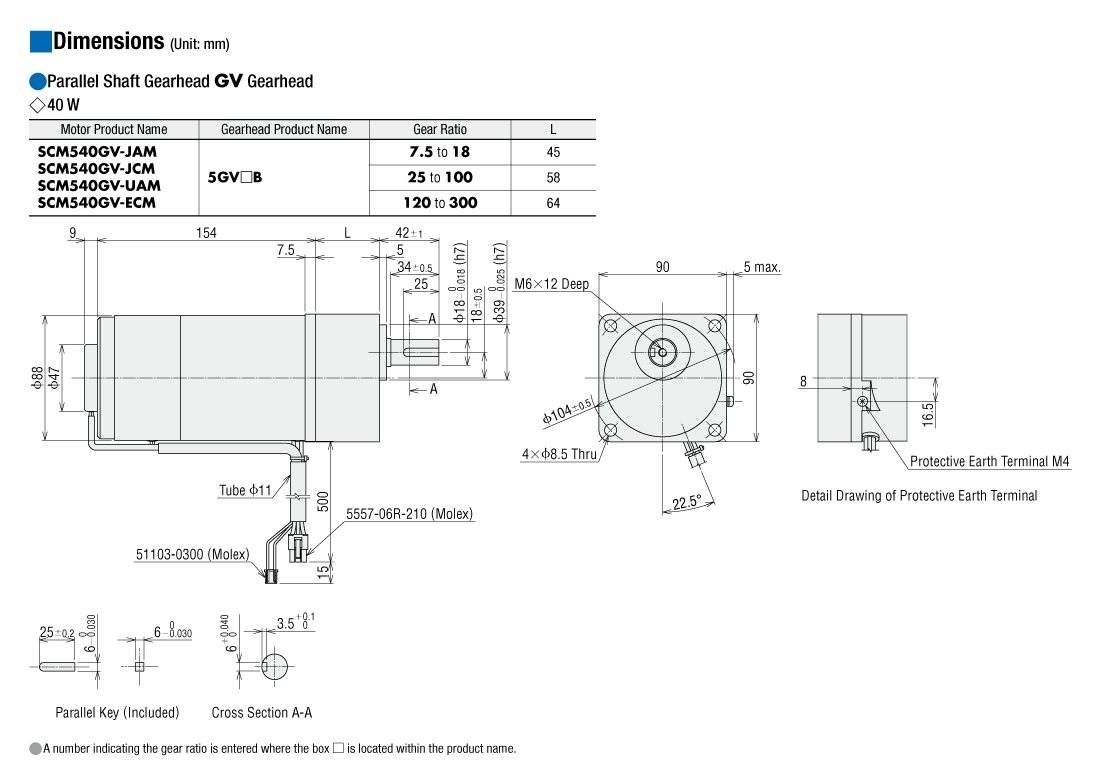

Dimensions

Motor/Gearhead
Motor/Gearhead

Motor/Gearhead

Data Download

Other Specifications

Permissible Radial Load and Permissible Axial Load

Combination Type

Output Gear Ratio Permissible Radial Load N Permissible Axial Load
N
Distance From the End of the Gearhead Output Shaft
10 mm 20 mm
6 W 2 100 150 15
3 100 150 30
5~25 150 200 40
30~360 200 300
15 W 2 150 250 20
3 150 250 40
5~25 200 300 80
30~360 300 400
25 W 2 300 350 25
3 300 350 50
5~25 300 350 100
30~360 450 550
40 W
60 W		 2 250 350 100
3~9 400 500 150
12.5~18 450 600
25~300 500 700
90 W 2 250 350 100
3~9 400 500 150
12.5~18 450 600
25~180 500 700

Round Shaft Type

Output Permissible Radial Load Permissible Axial Load
10 mm From the End of the Output Shaft
N		 20 mm From the End of the Output Shaft
N
6 W 50 110 Half of the motor mass or less*
15 W 40 60
25 W 90 140
40 W 140 200
60 W
90 W		 240 270
  • *Avoid applying axial load as much as possible.
    If an axial load is unavoidable, keep it at half or less of the motor mass.

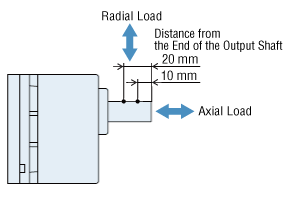

Load Illustration

Standards

Regulations and Standards Materials

Documents about compliance with regulations and standards can be downloaded from the "Data Download" tab on the product details page.
(The types of files available for download vary by product.)

Explanations of the Global Laws, Regulations and Standards can be found here.

Information about our compliance with safety standards for each of our product models can be found here.

Hazardous Substances

The product does not contain any substances (10 substances) exceeding the regulation values of the RoHS Directive (2011/65/EU, 2015/863/EU).
