Induction Motors
BHI62U-18
Combi geared motor
| Product Classification | Product Name | List Price | Shipping Date |
|---|---|---|---|
| Combi geared motor | BHI62U-18 | Rs. 33,733 | 23 Working Days (Dispatch) |
Included
- Motor: None
Gearhead: Mounting Screws, Parallel Key
Specifications

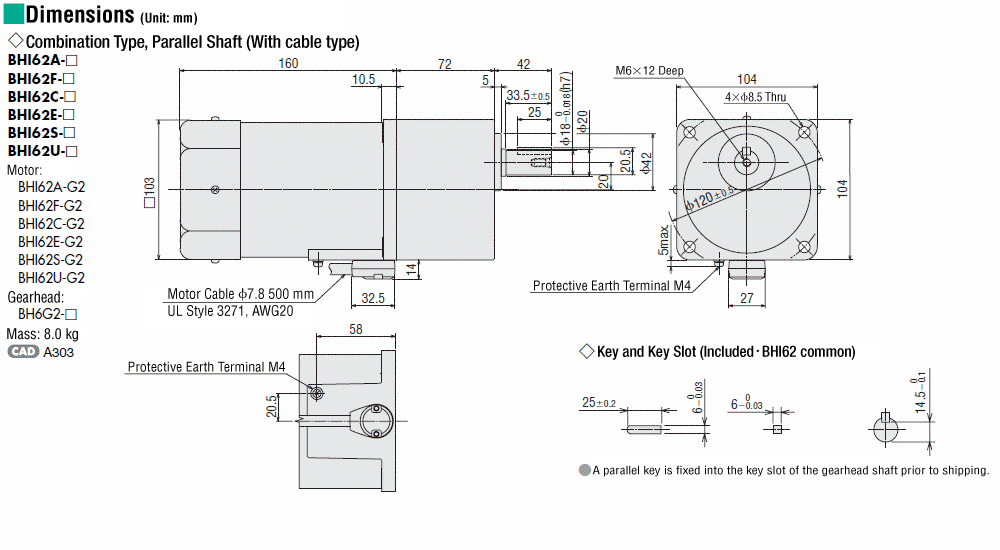

Dimensions
Data Download
Other Specifications
General Specifications
| Item | Specifications |
|---|---|
| Insulation Resistance | After rated operation at normal ambient temperature and humidity, the measurement between the coils and the case is 100 MΩ min. using a 500 VDC megger. |
| Dielectric Strength | After continuous rated operation at normal ambient temperature and humidity, no abnormalities were observed even with an application of 1.5 kV(three-phase 380/400/415 VAC is 2.0 kVAC) at 50 Hz or 60 Hz between the coils and the case for 1 minute. |
| Temperature Rise | After a gearhead or equivalent heat sink*is connected for rated operation at normal ambient temperature and humidity, the measurement value of the winding temperature rise is 70 °C max. using the resistance change method. |
| Thermal Class | 130(B) |
| Overheat Protective Device | Built-in thermal protector (automatic return type) Open: 150 ± 5 °C, Return: 96 ± 15 °C Three-phase 380/400/415 V Type Open: 130 ± 5 °C, Return: 83 ± 15 °C |
| Operating Ambient Temperature | Single-phase 100 V, single-phase 200 V, three-phase 200 V: -10~+50 °C (Non-freezing) Other voltages: -10~+40 °C (Non-freezing) |
| Operating Ambient Humidity | 85 % max. (Non-condensing) |
| Degree of Protection |
Lead wire type: IP40 Terminal box type: IP54 (Excluding mounting surface of round shaft type) |
- *Heat Sink Size: 230 × 230 mm, 5 mm thickness (Material: aluminum)
Permissible Radial Load and Permissible Axial Load of Gearhead
| Product Name | Gear Ratio | Maximum Permissible Torque N·m |
Permissible Radial Load N | Permissible Axial Load N |
|
|---|---|---|---|---|---|
| From Shaft End 10 mm |
From Shaft End 20 mm |
||||
| BH6G2-□ | 3~36 | 40 | 550 | 800 | 200 |
| 50~180 | 650 | 1000 | |||
| BH8G-□ | 30~180 | 70 | 1400 | 1700 | 400 |
| BH6G2-□RH | 5~36 | 60 | 1200* | 1100* | 300 |
| 50~180 | 2200* | 2000* | |||
| BH6G2-□RA | 5~36 | 60 | 900 | 1000 | 300 |
| 50~180 | 1700 | 1850 | |||
- *The permissible radial load is the value at the distance from the flange-mounting surface.
Calculating the Permissible Radial Load for Hollow Shaft Type
When the end of the load shaft being driven is not supported by a bearing as shown in the figure on the right, calculate the permissible radial load using the following formula. (This mechanism is the most demanding state in terms of radial load.)
