Enclosure Fan Module

C-GBS

Product Classification	Product Name	List Price	Shipping Date
Finger guard panel	C-GBS	Rs. 25,933	30 Working Days (Dispatch)

• Please note that it is not possible to attach the cooling fans to the panel later.

Finger guard cover panel, Mounting Screw Set (tapping screw, Speed Nut), Operating manual

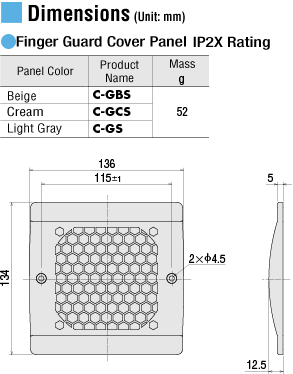

Specifications

The IP code for the grade of watertight and dust-resistant performance is specified by EN60529, as displayed on below.

IP Code	Protection Against Contact or Ingress of Human Body Parts and Solid Foreign Particles
First Number	Protection Level	Test Condition
IP2X	Protection against approach by fingers	Solid foreign objects with a diameter of 12 mm or more do not enter
IP4X	Protection against ingress of wires, etc.	Solid foreign objects with a diameter of 1.0 mm or more do not enter
IP5X	Protection against powdery dust	Dust that may inhibit normal operation does not enter

IP Code	Form of Protection against Water Ingress
Second Number	Protection Level	Test Conditions
IPX3	Protection against raindrops from directions within a range of 60˚ relative to the vertical plane	Sprayed water at a rate of 10 ℓ/min for 10 minutes from directions within 60˚ from a height of 200 mm
IPX4	Protection against ingress of splashes from all directions	Sprayed water at a rate of 10 L/min for 10 minutes from all directions at a distance of 300 to 500 mm
IPX5	Protection against water jet from all directions	Sprayed water jet of 30 kPa at a rate of 12.5 ℓ/min for 3 minutes from all directions at a distance of 3 m

The product does not contain any substances (10 substances) exceeding the regulation values of the RoHS Directive (2011/65/EU, 2015/863/EU).
