4GN12.5RH

Gearhead

Product Classification Product Name List Price Shipping Date
Gearhead 4GN12.5RH Rs. 9,733 23 Working Days (Dispatch)

Included

  • Gearhead: Mounting Screws, Parallel Key, Safety Cover (with Screws), Gasket

Specifications

Dimensions

Gearhead

Gearhead

Data Download

Other Specifications

Permissible Radial Load and Permissible Axial Load of Right-Angle Gearhead

Product Name Gear Ratio Maximum Permissible Torque
N·m		 Permissible Radial Load N Permissible Axial Load
N
From Shaft End
10 mm		 From Shaft End
20 mm
4GN□RH 3~180 8 250* 220* 100
5GN□RH 3~180 10 350* 310* 200
5GE□RH 3~180 20 560* 500* 250
5GU□RH 3~180 20 560* 500* 250
4GN□RA 3~18 8 100 150 100
25~180 200 300
5GN□RA 3~18 10 250 350 200
25~180 300 450
5GE□RA 3~9 20 400 500 250
12.5~25 450 600
30~180 500 700
5GU□RA 3~9 20 400 500 250
12.5~25 450 600
30~180 500 700
  • *For hollow shaft type, the permissible radial load is the value at the distance from the flange-mounting surface.

Note

  • Self locking does not work.
Radial Load and Axial Load

Permissible Torque When Installing Gearheads

The permissible torque when combined with a motor is listed in the "Specifications" section.
Calculate the permissible torque when installing gearheads using the following formula.
Use the values for conductive efficiency in the table below to calculate.
Conductive efficiency at start-up is lower than rating, so please take care when selecting.

Permissible Torque ・・・・・・・・・
TG= TM× i× η
TG:
Gearhead permissible torque
TM:
Motor torque
i:
Gearhead gear ratio
η:
Conduction Efficiency of Gearhead

Transmission Efficiency of Gearhead

Product Name/Gear Ratio 3 3.6 5 6 7.5 9 12.5 15 18 25 30 36 50 60 75 90 100 120 150 180
4GN□RH At Rating 40 % 50 % 60 %
At startup 40 % 50 % 54 %
5GN□RH At Rating 50 % 68 % 60 %
At startup 50 % 60 % 54 %
5GE□RH At Rating 50 % 68 % 60 % 50 %
At startup 50 % 60 % 54 % 45 %
5GU□RH At Rating 50 % 68 % 60 % 50 %
At startup 50 % 60 % 54 % 45 %
4GN□RA At Rating 50 % 60 %
At startup 50 % 54 %
5GN□RA At Rating 68 % 60 %
At startup 60 % 54 %
5GE□RA At Rating 68 % 60 % 50 %
At startup 60 % 54 % 45 %
5GU□RA At Rating 68 % 60 % 50 %
At startup 60 % 54 % 45 %

Note

  • The transmission efficiency in the table above is the value at normal ambient temperature. The transmission efficiency of the gearhead varies depending on the ambient temperature.
    Care should be taken when using in a low-temperature environment, as the transmission efficiency will drop along with the output torque.

Calculating the Permissible Radial Load for Hollow Shaft Type

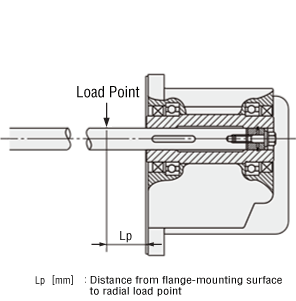

When the end of the load shaft being driven is not supported by a bearing as shown in the figure below, calculate the permissible radial load using the following formula.
(This mechanism is the most demanding state in terms of radial load.)

For 4GN□RH

\(\begin{align} \text{Permissible Radial Load} \ W [\mathrm{N}] = \frac{59.5}{59.5 + Lp} \times 295 \ [\mathrm{N}]^{\ast} \end{align}\)
*295 [N]:
Permissible Radial Load at the Flange-Mounting Surface Position


For 5GN□RH

\(\begin{align} \text{Permissible Radial Load} \ W [\mathrm{N}] = \frac{70}{70 + Lp} \times 400 \ [\mathrm{N}]^{\ast} \end{align}\)
*400 [N]:
Permissible Radial Load at the Flange-Mounting Surface Position


For 5GE□RH

\(\begin{align} \text{Permissible Radial Load} \ W [\mathrm{N}] = \frac{68.5}{68.5 + Lp} \times 645 \ [\mathrm{N}]^{\ast} \end{align}\)
*645 [N]:
Permissible Radial Load at the Flange-Mounting Surface Position


For 5GU□RH

\(\begin{align} \text{Permissible Radial Load} \ W [\mathrm{N}] = \frac{68.5}{68.5 + Lp} \times 645 \ [\mathrm{N}]^{\ast} \end{align}\)
*645 [N]:
Permissible Radial Load at the Flange-Mounting Surface Position

Lp [mm]: Distance from Flange-Mounting Surface to Radial Load Point
