Features | Network Converters

Features

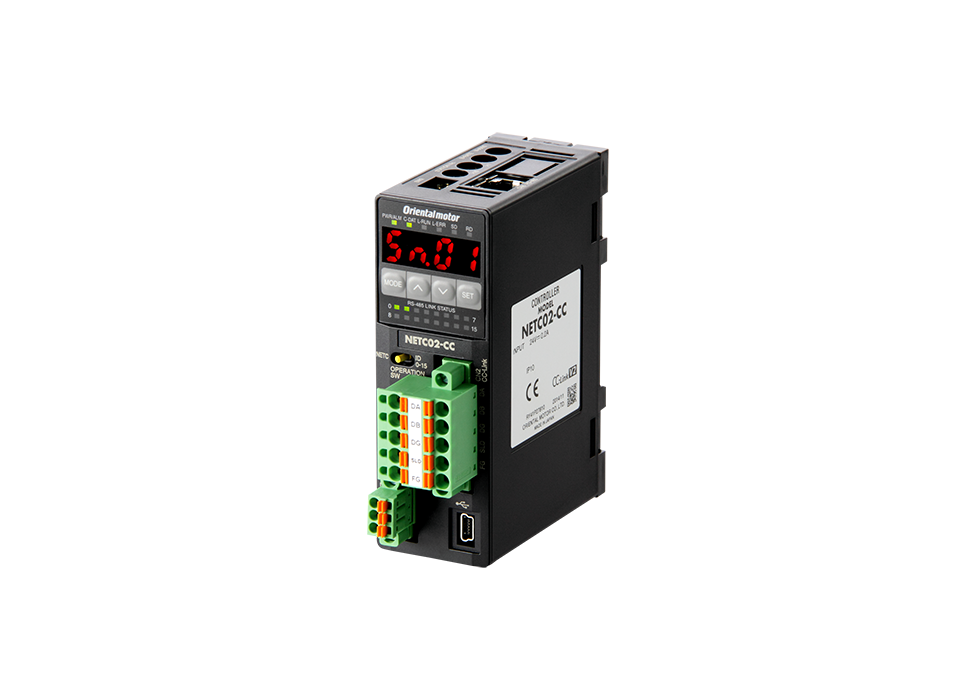

The network converter is a gateway that converts various industrial network communication protocols to Oriental Motor's own RS-485 communication protocol.
Oriental Motor's RS-485 compatible products can be controlled within various industrial network environments.

Configuration Example When Used With EtherCAT Communication

Simple Connection

The network converter and RS-485 communication compatible products can be connected with a single included cable.

Product Line

Communication Protocol	EtherCAT
Product Name	NETC01-ECT For details on specifications, click here
Maximum Number of Connected Units	16
Converter Setting Method	EtherCAT communication
	Support Software MEXE02 (Free download)

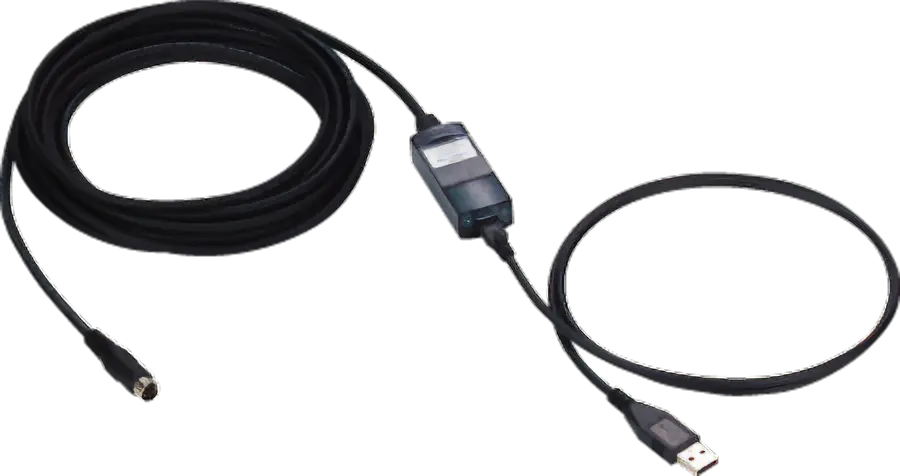

	Communication Cable for Support Software CC05IF-USB (Sold Separately)
	Control Module* OPX-2A (Sold separately)

• *The control module can also be used to monitor the communication time scan time, etc.

Compatible Products

This section introduces compatible products.

Brushless Motor

AC

Single-Phase 100-120 VAC, Single-Phase/Three-Phase 200-240 VAC input

DC

24/48 VDC input

Series	Power Supply Input
BLE Series RS-485 Communication Type	AC
BLV Series	DC

Stepper Motor/Electric Actuator

AC

Single-Phase 100-120 VAC, Single-Phase/200-240 VAC input

DC

DC24V input

Series	Power Supply Input
RKII Series Built-In Controller Type	AC
CRK Series Built-In Controller Type	DC
DRLII Series Built-In Controller Type	DC

αSTEP/Electric Actuator

AC

Single-phase 100-120 VAC, single-phase/200-240 VAC input

DC

24/48 VDC input

Series	Power Supply Input
AR Series Built-In Controller Type	AC/DC
DGII Series	AC/DC

αSTEP Battery-Free Built-In Absolute Encoder/Electric Actuator

AC

Single-Phase 100-120 VAC, Single-Phase/Three-Phase 200-240 VAC input

DC

24/48 VDC input

Product Line		AZ Series Driver Power Supply Input
(Motor or Electric Actuator)	Series	Single Axis Driver Built-In Controller Type	Single Axis Driver Pulse Input Type With RS-485 communication	mini Driver RS-485 Communication Type
αSTEP	AZ Series	AC/DC	AC/DC	DC
Electric Linear Slides	EZS Series	AC/DC	AC/DC	DC
	EAS Series	AC/DC	AC/DC	DC
Electric Cylinders	EAC Series	AC/DC	AC/DC	DC
Compact Electric Cylinders	DR Series	DC	DC	DC
	DRS2 Series
Rack-and-Pinion System	L Series	AC/DC	AC/DC	DC
Electric Grippers	EH Series	DC	DC	DC
Hollow Rotary Actuators	DGII Series	AC/DC	AC/DC	DC

Design Support

We help customers design equipment and shorten start-up time.

Combining and Connecting With Other Manufacturers' Products

Information on connecting Oriental Motor’s products with other companies' "PLCs" is available on the website.
You can download screen samples and connection guides for the applicable manufacturer, and find information on communication cables that allow direct connection between Oriental Motor's products and other manufacturers' devices.
This can save time with program design and start-up, so we recommend it to you.

Click here for details
