Other Peripheral Equipment Worm Gearhead

AGW2G20H-B

Print Product Information All at once
AGW2G20H-B

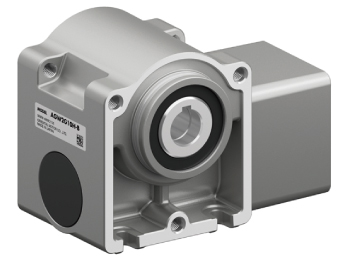

Worm Gearhead

Product Classification Product Name List Price Shipping Date
Worm Gearhead AGW2G20H-B Rs. 34,867 23 Working Days (Dispatch)
Description It can be combined with a 30 W brushless motor equipped with a parallel shaft gearhead with a mounting dimension of 60 mm.

Included

  • Gearhead: Parallel Key, Safety Cover

Specifications

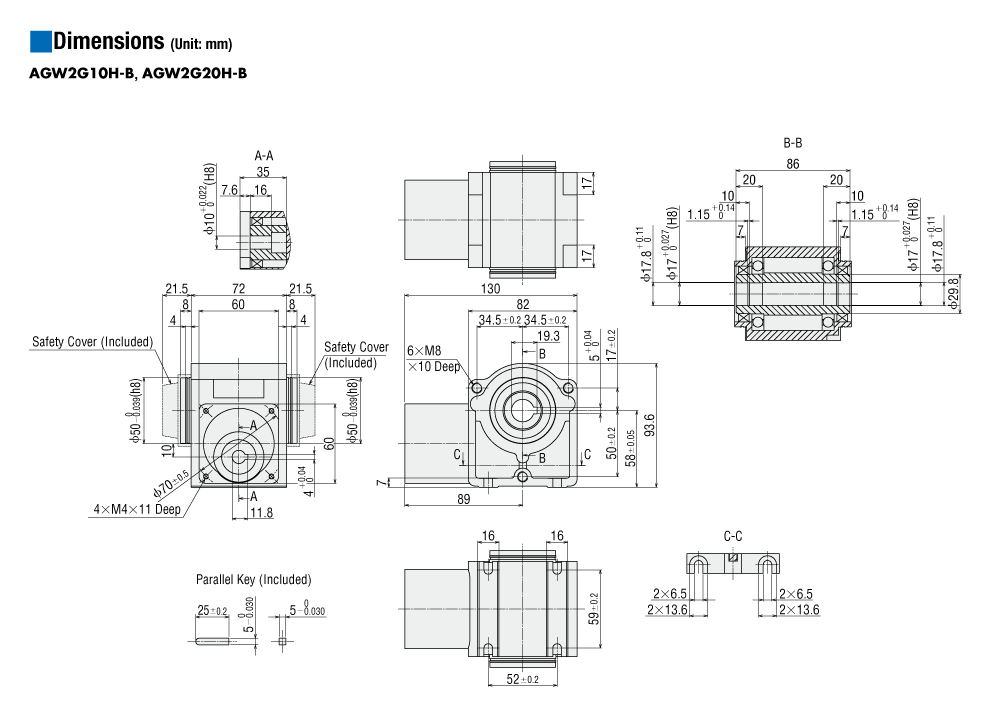

Dimensions

Worm Gearhead
Worm Gearhead

Worm Gearhead

Data Download

Other Specifications

General Specifications

Operating Environment Ambient Temperature: 0* to +50 °C (Non-freezing)
Ambient Humidity: 85 % max. (Non-condensing)
Altitude: Up to 1000 m above sea level
Atmosphere: No corrosive gases or dust. Do not expose to water or oil.
Storage Conditions
Shipping Environment		 Ambient Temperature: -20 to +70 °C (Non-freezing)
Ambient Humidity: 85 % max. (Non-condensing)
Altitude: Up to 3000 m above sea level
Atmosphere: No corrosive gases or dust. Do not expose to water or oil.
  • *The following combinations have a lower operating ambient temperature limit of +10 °C.
  •   Parallel Shaft Gearhead: Gear ratio 5
  •   Worm Gearhead: Gear ratio 10

Transmission Efficiency

Product Name Rotation Speed of Motor Output Shaft Gear Ratio to be Combined
5 10 15 20 30
AGW2G10H-B 2 r/min∼ 44 % 55 % 60 %
3000 r/min
4000 r/min 32 %
AGW2G20H-B 2 r/min∼ 32 % 37 % 40 % -
3000 r/min
4000 r/min 29 %

Note

  • ·The transmission efficiency in the table above is the value at normal ambient temperature. The transmission efficiency of the gearhead varies depending on the ambient temperature.
  • ·Care should be taken when using in a low temperature environment as the transmission efficiency will drop along with the output torque.

Calculating the Permissible Radial Load for Gearhead

When the end of the load shaft being driven is not supported by a bearing unit as shown in the figure below, calculate the permissible radial load using the following formula.
(This is the mechanism in which the radial load is in the most severe condition.)

Permissible Radial Load calculation formula

Standards

Hazardous Substances

The product does not contain any substances (10 substances) exceeding the regulation values of the RoHS Directive (2011/65/EU, 2015/863/EU).
