Brushless Motor BLE2 Series Product Line

Product Line

Connector Type

The motor, driver, and connection cable can be purchased individually.

Standard Motor

Output Shaft Type/ Output Shaft Material		Frame Size [mm]	Rated Output Power [W]	Gear Ratio	Degree of Protection	Rated Voltage [VAC]	Connection Cable/ Flexible Connection Cable
Parallel Shaft Gearhead	GFV Gearhead/ Stainless Steel Shaft	60	30	5~200	IP66	Single-Phase 100-120 Single-Phase 200-240 Three-Phase 200-240	Connection Cable 0.5~20 m Flexible Connection Cable 1~20 m Cable outlet in output shaft direction/ Cable outlet opposite to output shaft direction/ Cable outlet in vertical direction
		80	60
		90	120
		110	200			Single-Phase 200-240 Three-Phase 200-240
			300	5~100
			400	5~50		Three-Phase 200-240
	GFV Gearhead H1 Food-Grade Lubricant Compatible/ Stainless Steel Shaft	60	30	5~200		Single-Phase 100-120 Single-Phase 200-240 Three-Phase 200-240
		80	60
		90	120
	JV Gearhead/ Stainless Steel Shaft	*1	200	300, 450	IP66	Single-Phase 200-240 Three-Phase 200-240
			300	200~450
			400	100~450		Three-Phase 200-240
Foot Mount Gearhead JB Gearhead/ Steel Shaft		*1	200	5~1200	IP44	Single-Phase 200-240 Three-Phase 200-240
			300	5~600
			400			Three-Phase 200-240
Right-angle Hollow Shaft Hypoid JH Gearhead		*1	60	10~200	IP66	Single-Phase 100-120 Single-Phase 200-240 Three-Phase 200-240
			120
			200	5~200		Single-Phase 200-240 Three-Phase 200-240
			300
			400			Three-Phase 200-240
Hollow Shaft Flat Gearhead FR Gearhead/ Steel Shaft		*1	30	5~200	IP65	Single-Phase 100-120 Single-Phase 200-240 Three-Phase 200-240
			60
			120
			200	10~100		Single-Phase 200-240 Three-Phase 200-240
			300
			400	5~100		Three-Phase 200-240
Round Shaft*2/ Stainless Steel Shaft		60	30	－	IP66	Single-Phase 100-120 Single-Phase 200-240 Three-Phase 200-240
			60
		90	120
			200			Single-Phase 200-240 Three-Phase 200-240
			300
			400			Three-Phase 200-240

*1

Refer to the dimensions on the product details page.

*2

The round shaft type is also available with shaft flat on the shaft.

Electromagnetic Brake Motor

Output Shaft Type/ Output Shaft Material	Frame Size [mm]	Rated Output Power [W]	Gear Ratio	Degree of Protection	Rated Voltage [VAC]	Connection Cable/ Flexible Connection Cable
Parallel Shaft Gearhead GFV Gearhead/ Stainless Steel Shaft	60	30	5~100	IP66	Single-Phase 100-120 Single-Phase 200-240 Three-Phase 200-240	Connection Cable 0.5~20 m Flexible Connection Cable 1~20 m Cable outlet in output shaft direction/ Cable outlet opposite to output shaft direction/ Cable outlet in vertical direction
	80	60
	90	120	5~200
	110	200			Single-Phase 200-240 Three-Phase 200-240
Hollow Shaft Flat Gearhead FR Gearhead/ Steel Shaft	*1	30	5~200	IP65	Single-Phase 100-120 Single-Phase 200-240 Three-Phase 200-240
		60
		120
		200	10~100		Single-Phase 200-240 Three-Phase 200-240
Round Shaft*2/ Stainless Steel Shaft	60	30	－	IP66	Single-Phase 100-120 Single-Phase 200-240 Three-Phase 200-240
		60
	90	120
		200			Single-Phase 200-240 Three-Phase 200-240

*1

Refer to the dimensions on the product details page.

*2

The round shaft type is also available with shaft flat on the shaft.

Features of Electromagnetic Brake Motors

The rear part of the motor is equipped with a power off activated type electromagnetic brake motor.
When the power is turned OFF, such as during a blackout, the motor stops instantaneously to hold the load in place.

• Vertical Operation Possible (Gravitational operation)

  Stable speed control is possible even in vertical operation.
  Can hold the load even during power blackout or power supply OFF.



  • *Since regenerative energy is produced during vertical operation, a regeneration resistor, sold separately, is required.

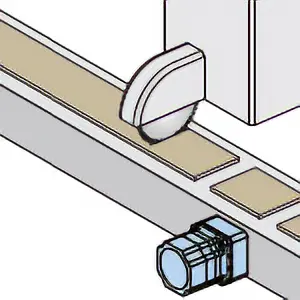

• Capable of Position Holding when Stopped

  Position holding when driving in a vertical direction or horizontal direction is possible.



Click here for information about downsizing and automatic control of the electromagnetic brake with the electromagnetic brake motor

Reduction in Overall Equipment Size and Automatic Control of the Brake by Using the Electromagnetic Brake Motor

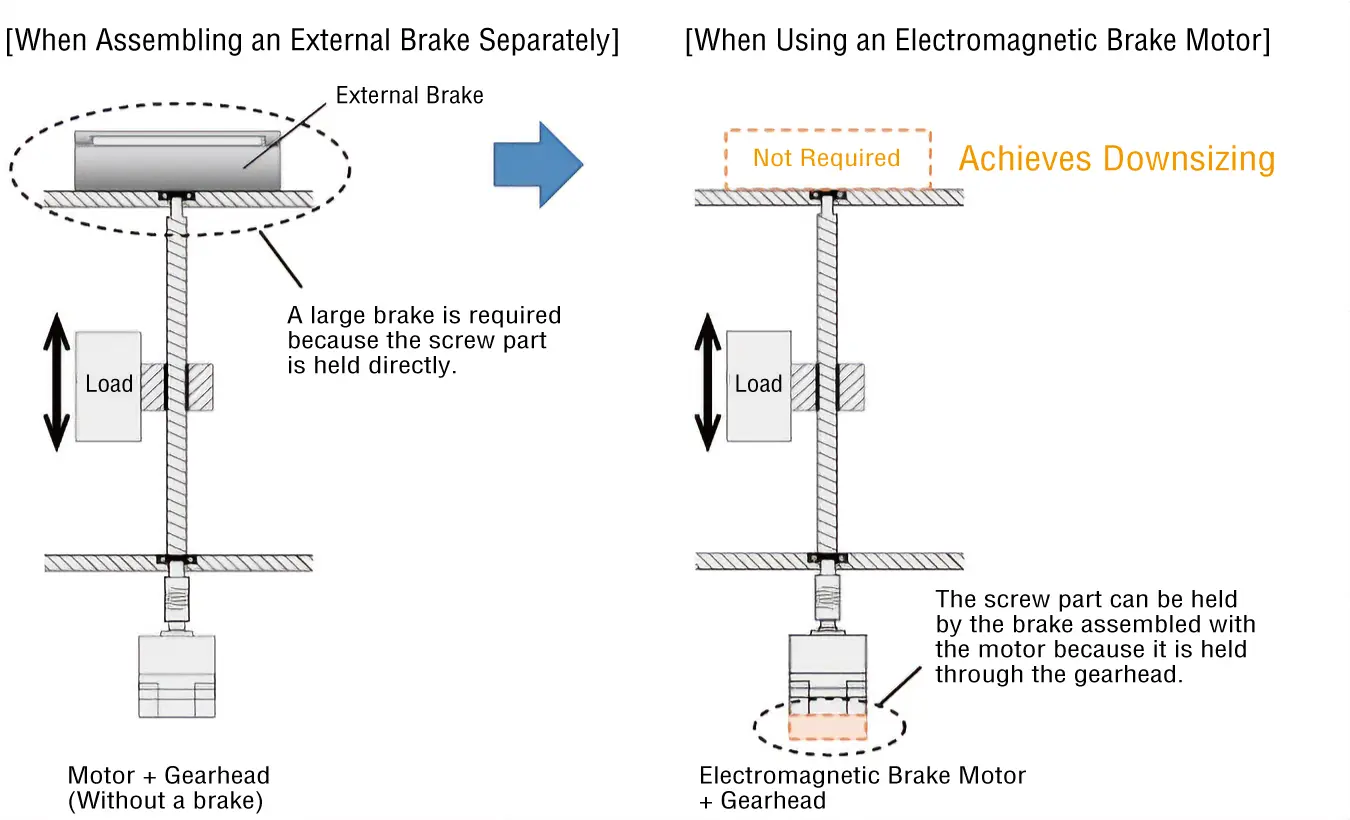

Reduction in Overall Equipment Size

• Automatic Control of Electromagnetic Brake Operation

  The control of the electromagnetic brake is automatically controlled in conjunction with the operation of the motor. No need to consider the electromagnetic brake wiring and control.

• IP66 with Electromagnetic Brake

  With the built-in electromagnetic brake, the degree of protection is IP66.
  Can be used in dusty environments.
