Cables: Watertight, Dust-Resistant Connection Cable For BLE2 Series Connector Type
When purchasing the BLE2 Series connector type motor and driver, please also purchase the dedicated connection cables for both the motor side (cable outlet in output shaft direction/cable outlet opposite to output shaft direction) and the driver side.
| Number in Illustration
|
Cable Name |
|---|---|
| [2] | I/O Signal Cable Connector Type |
| I/O Signal Cable General-Purpose Type | |
| [3] | AC Power Supply Cable |
- → Click here for Cable Product Line
Features
- Relay connectors are IP66/IP67 compliant
- Noise-resistant
- Lineup includes panel mounting types for convenient board mounting
Connection Cable
This cable can be used to connect the motor with driver.
Connection Cable Motor Side
This cable can be connected directly to the motor connector. It can be also used with the electromagnetic brake motor.
| Length (m) | Cable Outlet in Output Shaft Direction
Product Name |

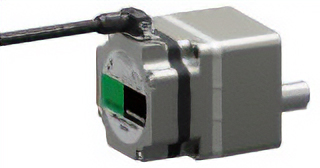

Cable Outlet Opposite to Output Shaft Direction
Product Name |
|
|---|---|---|---|
|
1 | CCM010B2EFFM | CCM010B2EBFM |
| 2 | CCM020B2EFFM | CCM020B2EBFM | |
| 3 | CCM030B2EFFM | CCM030B2EBFM | |
| 5 | CCM050B2EFFM | CCM050B2EBFM | |
| 7 | CCM070B2EFFM | CCM070B2EBFM |
- *For the cable outlet in output shaft direction type, make sure that it does not interfere with the mounting plate before use.
[1] Connection Cable Driver Side
| Length (m) | Product Name | Panel Mounting Type
Product Name |
|---|---|---|
| 1 | CCM010B2ACFT | CCM010B2ADFT |
| 2 | CCM020B2ACFT | CCM020B2ADFT |
| 3 | CCM030B2ACFT | CCM030B2ADFT |
| 5 | CCM050B2ACFT | CCM050B2ADFT |
| 7 | CCM070B2ACFT | CCM070B2ADFT |
| 9 | CCM090B2ACFT | CCM090B2ADFT |
[2] Connection Cable Driver Side For Electromagnetic Brake
This cable for connect to the electromagnetic brake motor and the driver side.
| Length (m) | Product Name | Panel Mounting Type
Product Name |
|---|---|---|
| 1 | CCM010B2BCFT | CCM010B2BDFT |
| 2 | CCM020B2BCFT | CCM020B2BDFT |
| 3 | CCM030B2BCFT | CCM030B2BDFT |
| 5 | CCM050B2BCFT | CCM050B2BDFT |
| 7 | CCM070B2BCFT | CCM070B2BDFT |
| 9 | CCM090B2BCFT | CCM090B2BDFT |
Other Cables
Cable can be used to connect the driver and controller.

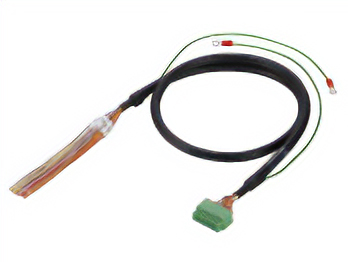

[2] I/O Signal Cable
Connector Type
Shielded cable for I/O signal wiring of various speed controllers and drivers. Ground wire with round terminal for easy shield grounding. Marked tubes are provided for easy identification of lead wires.
| Product Name | Length (m) |
Number of Cores | AWG | Insulator Outer Diameter |
Finished Outer Diameter |
|
|---|---|---|---|---|---|---|
|
CC18D005C-1 | 0.5 | 24 | φ1.2 | φ9.5 | 18 |
| CC18D010C-1 | 1 | |||||
| CC18D020C-1 | 2 |
General-Purpose Type
- Multi-core shielded cable
- Double-ended discrete wire
- Includes ground wire with round terminal for easy shield grounding
- Select the number of lead wire cores that matches the desired functionality.
| Product Name | Length (m) |
Number of Cores | AWG | Insulator Outer Diameter | Finished Outer Diameter | |
|---|---|---|---|---|---|---|
|
CC06D005B-1 | 0.5 | 6 | 24 | φ1.1 | φ5.4 |
| CC06D010B-1 | 1 | |||||
| CC06D015B-1 | 1.5 | |||||
| CC06D020B-1 | 2 | |||||
| CC10D005B-1 | 0.5 | 10 | φ6.7 | |||
| CC10D010B-1 | 1 | |||||
| CC10D015B-1 | 1.5 | |||||
| CC10D020B-1 | 2 | |||||
| CC12D005B-1 | 0.5 | 12 | φ7.5 | |||
| CC12D010B-1 | 1 | |||||
| CC12D015B-1 | 1.5 | |||||
| CC12D020B-1 | 2 | |||||
| CC16D005B-1 | 0.5 | 16 | ||||
| CC16D010B-1 | 1 | |||||
| CC16D015B-1 | 1.5 | |||||
| CC16D020B-1 | 2 |
[3] AC Power Supply Cable
This cable is to connect driver and AC power supply. Cables are available with or without a power supply plug.
