αSTEP AZ Series Hollow Shaft Type

5.12.2025

A new motor with a hollow shaft has been added. By using the shaft for gas tube configuration, the manufacturing of electronic components and other devices using gas adsorption and rotation mechanisms can be simplified. The power supply supports DC24V and DC48V; using DC48V can increase torque during high-speed operation.

Air Pipe Can be Directly Connected to the Shaft

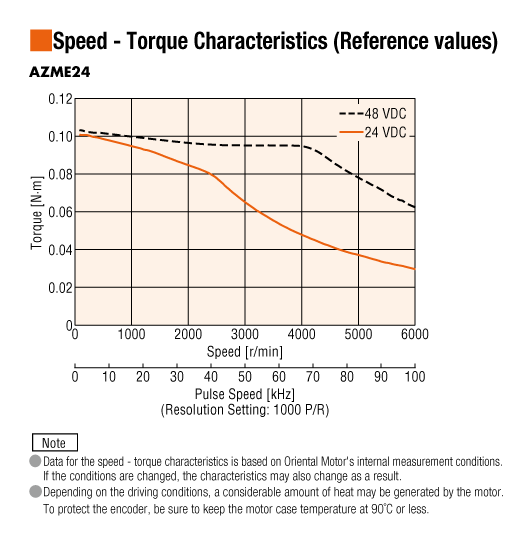

Supports DC48V operation, enabling High Speed and High Torque
Product Lineup
Network Types for Driver
Application Examples

Air Pipe Can be Directly Connected to the Shaft. Reduces Design Time for Component Suction and Rotation Mechanisms

In air suction mechanisms for electronic components, directly connecting the air pipe to the hollow shaft eliminates the need for components such as belts and pulleys, reduces design time, lower costs, and save space. Furthermore, its light weight of only 70 g contributes to improved takt time when mounted on the end effectors.

Reduced Time for Equipment Design, Assembly, and Start-Up

Robots and loads can be attached directly to the product body. Eliminates the need for the customer to design an external guide and arrange parts, thus contributing to a reduction in equipment startup time.
