2-Phase Stepper Motors PKP Series Standard Type/Harmonic Geared Type Frame Size 13 mm
High torque and fine motion are realized in a limited space.
Features
Oriental Motor Smallest Stepper Motor Contributes to the Downsizing and Weight Reduction of Equipment
A stepper motor with a frame size of 13 mm. It contributes to the further downsizing and weight reduction of equipment, such as end effectors for robot arms.

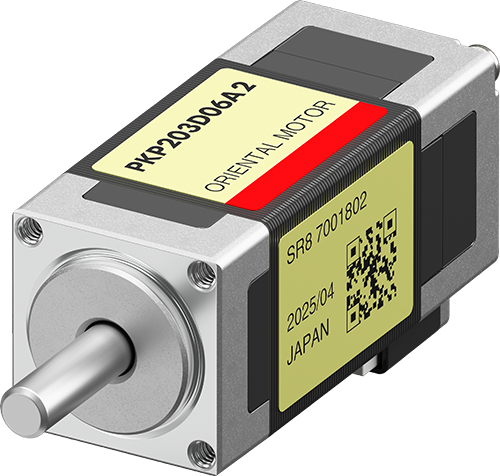

Standard Type
NEW
Harmonic Geared Type
AAA Battery
Shorter Than a AAA Battery,
Lightweight With a Mass of 21 to 33 g

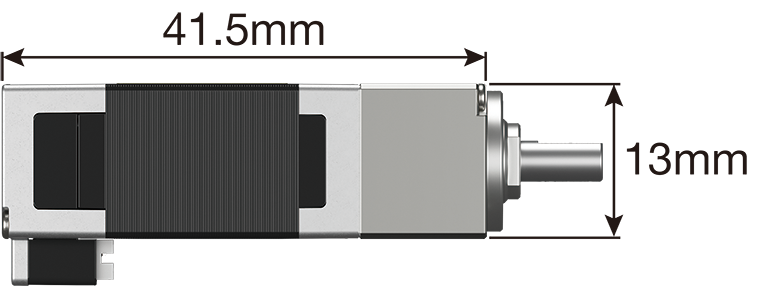

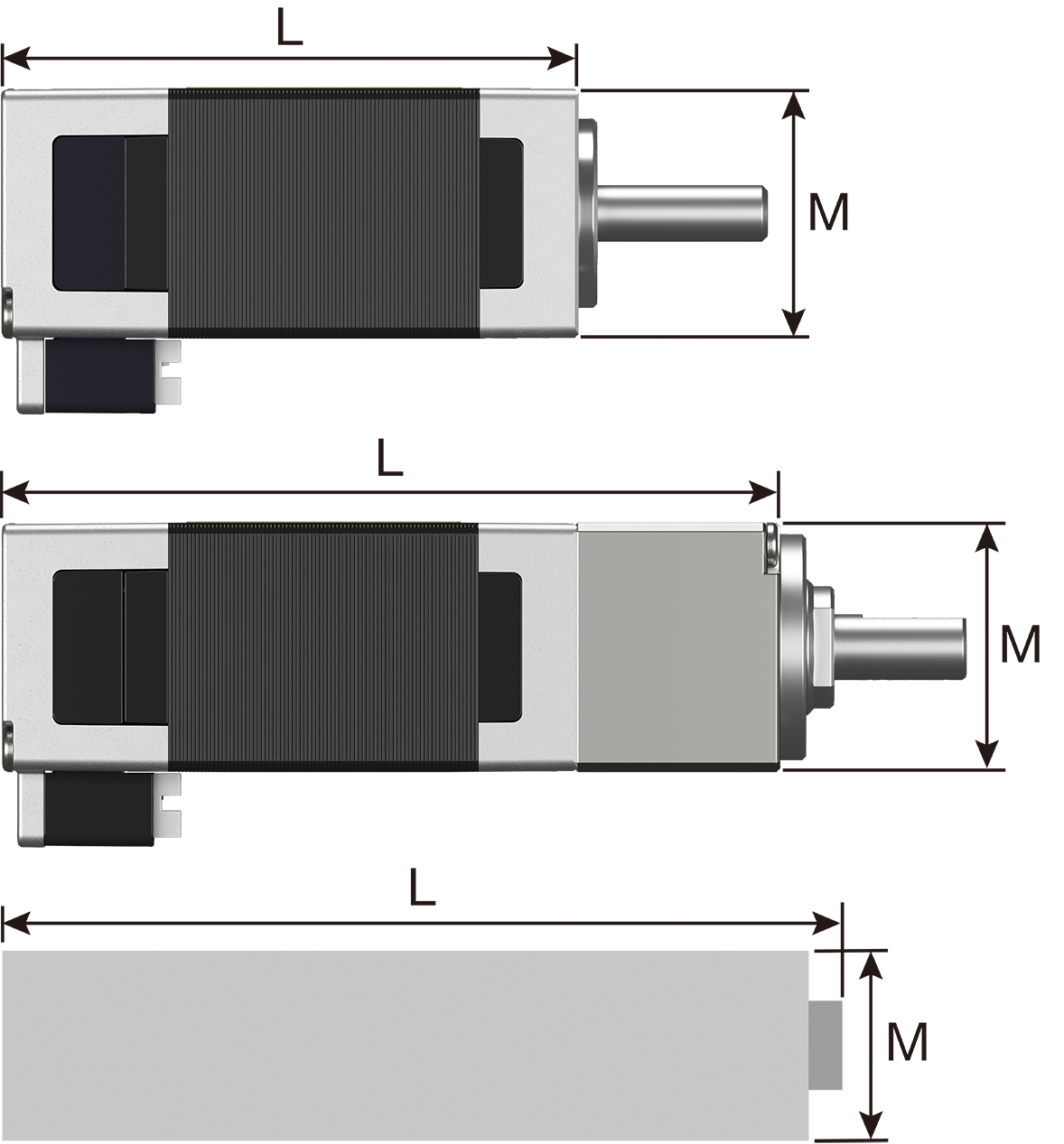

| Motor Type | Length (L) | Frame Size (M) |
|---|---|---|
| Standard Type | 30.5 mm | 13 mm |
| Harmonic Geared Type | 41.5 mm | |
| AAA Battery | 44.5 mm | φ10.5 mm |
Compact Geared Stepper Motors Suitable for Applications Requiring High Torque and High Precision Harmonic Geared Type

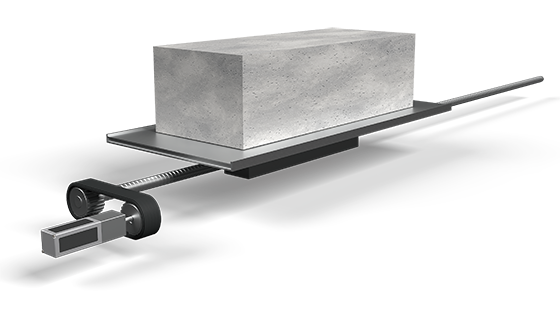

High Torque
-
Transportable for
a 20 kg Load -
-
[Selection Conditions]
- Speed: 10 mm/s
- Acceleration/deceleration time: 0.1 s
- Screw Diameter: 8 mm
- Lead: 10 mm
Despite being small with a frame size of 13 mm, this stepper motor has the same torque and strength as the standard type with a Frame Size of 28 mm. It’s suitable for applications requiring high torque in limited space.
|

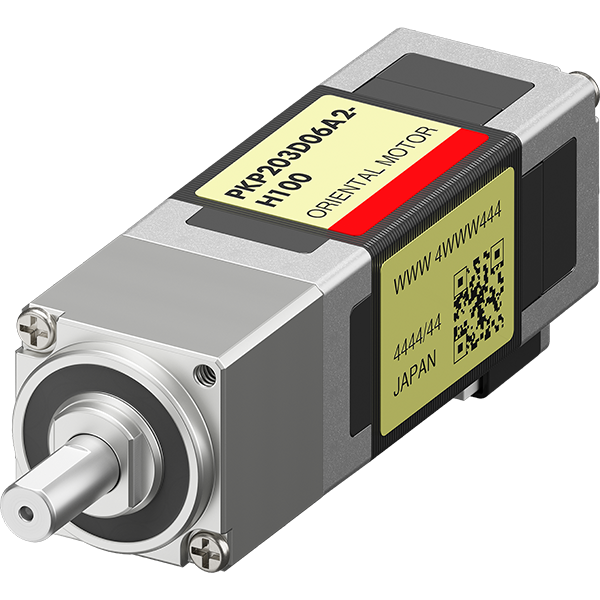

Harmonic Geared Type Frame Size 13 mm Gear Ratio 100 |
33 g |
|
|

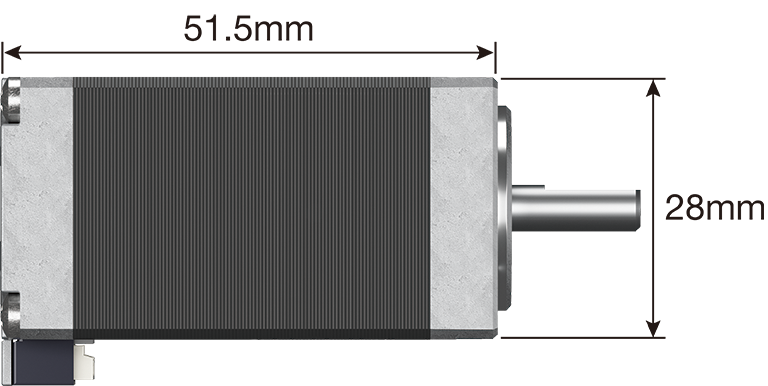

Standard Type Frame Size 28 mm |
|
|
| Frame Size mm |
Mass g |
Gear Ratio | Maximum Holding Torque N·m |
Radial Load N |
Axial Load N |
|---|---|---|---|---|---|
| 13 | 33 | 100 | 0.15 | 28 | 40 |
| 28 | 200 | ⁻ | 0.19 | 25 | 5 |
High Accuracy
Due to non-backlash, the output shaft moves and stops with very high accuracy relative to the motor command position.
It is suitable for applications and mechanisms that require stopping at an exact amount or position, such as dispensing and transferring in the medical field.
- Lost Motion [arcmin]:
1.5 (0.025°) or less (±2 mN·m) - Angular Transmission Accuracy [arcmin]:
10 (0.167°) or less
Large Inertia Drive
Gear ratios of 30, 50, and 100 are available.
The lineup of high gear ratios makes it possible to drive fine movements such as precision stages, and large inertial bodies.
| Gear Ratio | Basic Step Angle |
|---|---|
| 30 | 0.06° |
| 50 | 0.036° |
| 100 | 0.018° |
Flat Torque Characteristics up to High Speeds Standard Type
It has flat torque characteristics up to high speeds.
Suitable for applications such as long positioning distances for ball screw mechanisms and high-speed motor operation.

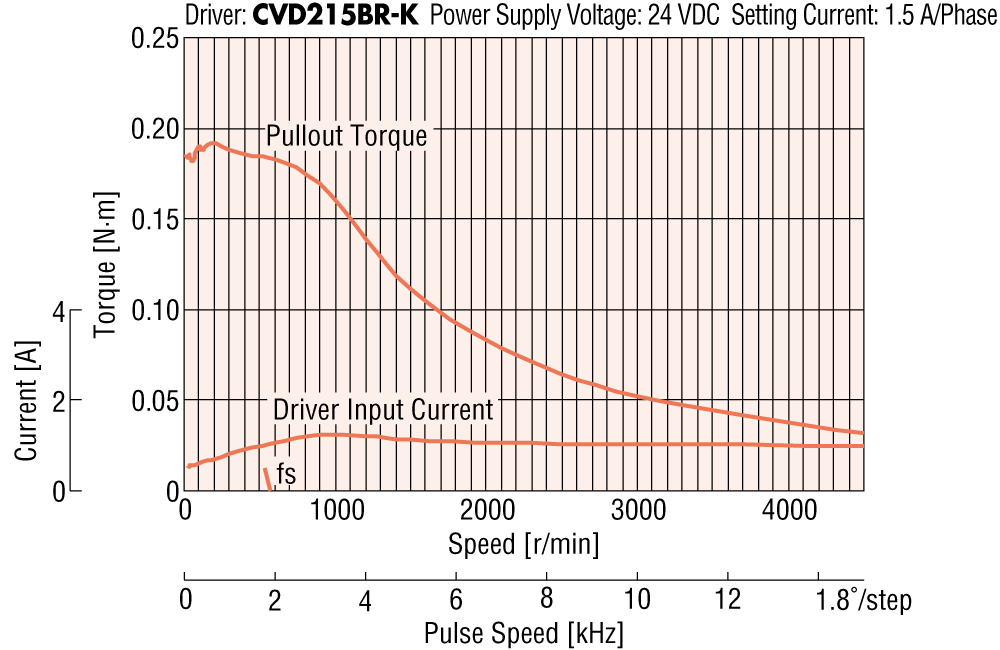

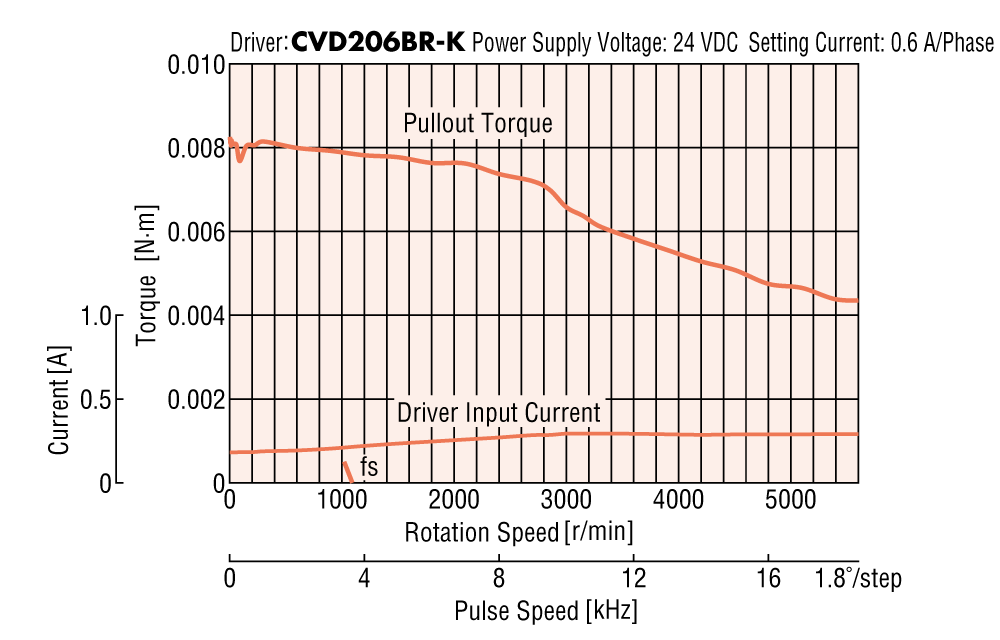

Speed - Torque Characteristics (Reference values) fs: Maximum Starting Frequency
Motor: PKP203D06A2 (Single shaft) / PKP203D06B2 (Double shaft)
Application Examples and Equipment Mechanisms
Suitable for applications requiring fine, high accuracy positioning, such as in the semiconductor and medical industries.
Standard Type
-

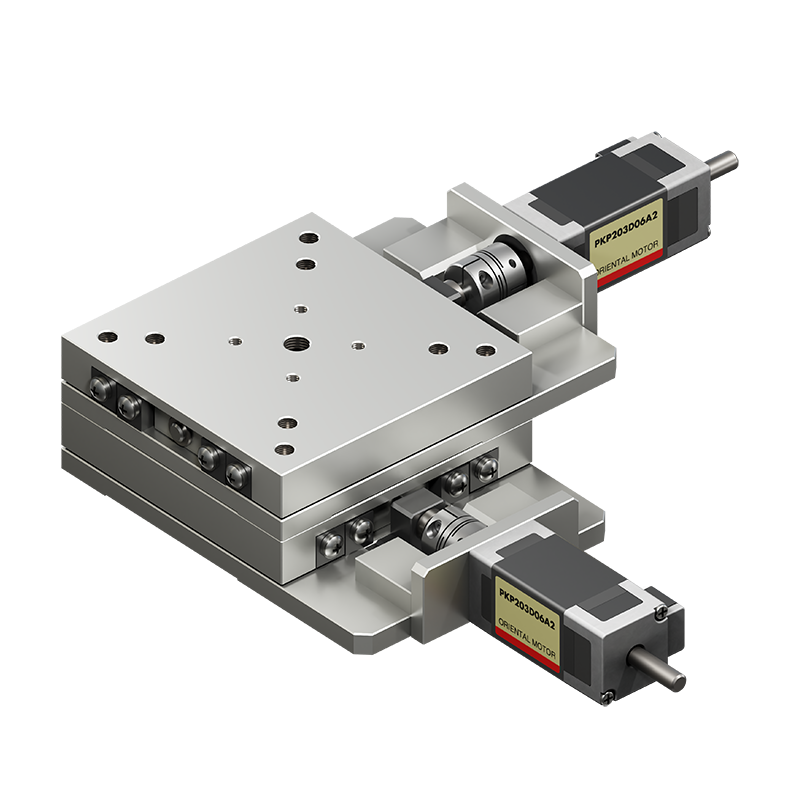

Precision Stages
-
SIM Transfer Process
-
Desktop Automated Culture Equipment
Harmonic Geared Type

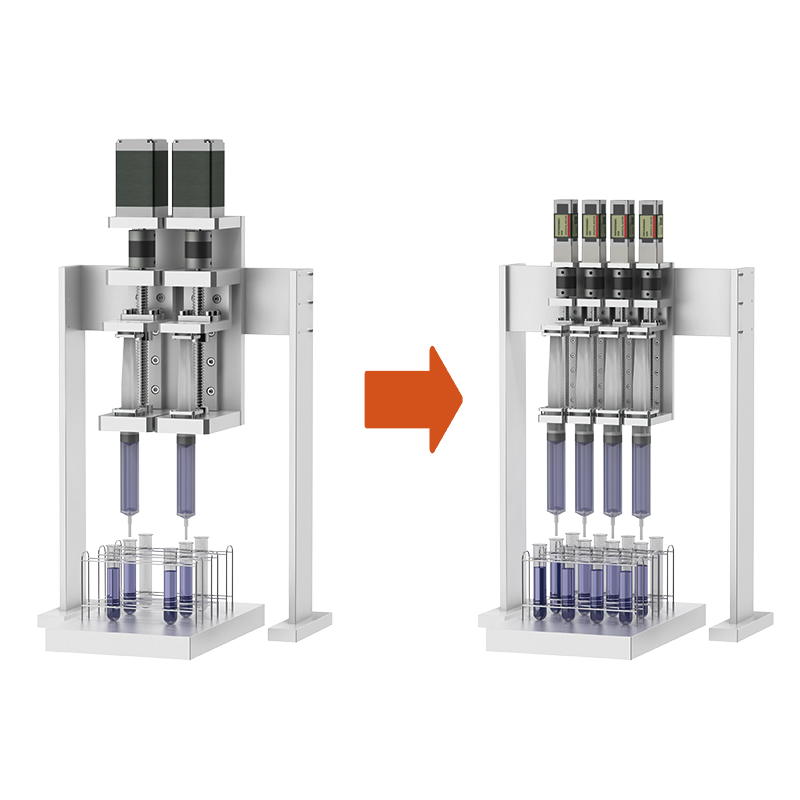

By using the harmonic geared type, two more syringes can be added to the same workspace, doubling throughput.
Desktop Dispensers
Product Line
Motor
| Type | Product Name | Frame Size [mm] | Wiring Method | Rated Current [A/Phase] |
|---|---|---|---|---|
| Standard Type | PKP203D06A2 (Single shaft) | 13 | Bipolar 4 lead wires | 0.6 |
| PKP203D06B2 (Double shaft) | ||||
| Harmonic Geared Type | PKP203D06A2-H30 (Single shaft) | |||
| PKP203D06A2-H50 (Single shaft) | ||||
| PKP203D06A2-H100 (Single shaft) | ||||
| PKP203D06B2-H30 (Double shaft) | ||||
| PKP203D06B2-H50 (Double shaft) | ||||
| PKP203D06B2-H100 (Double shaft) |
